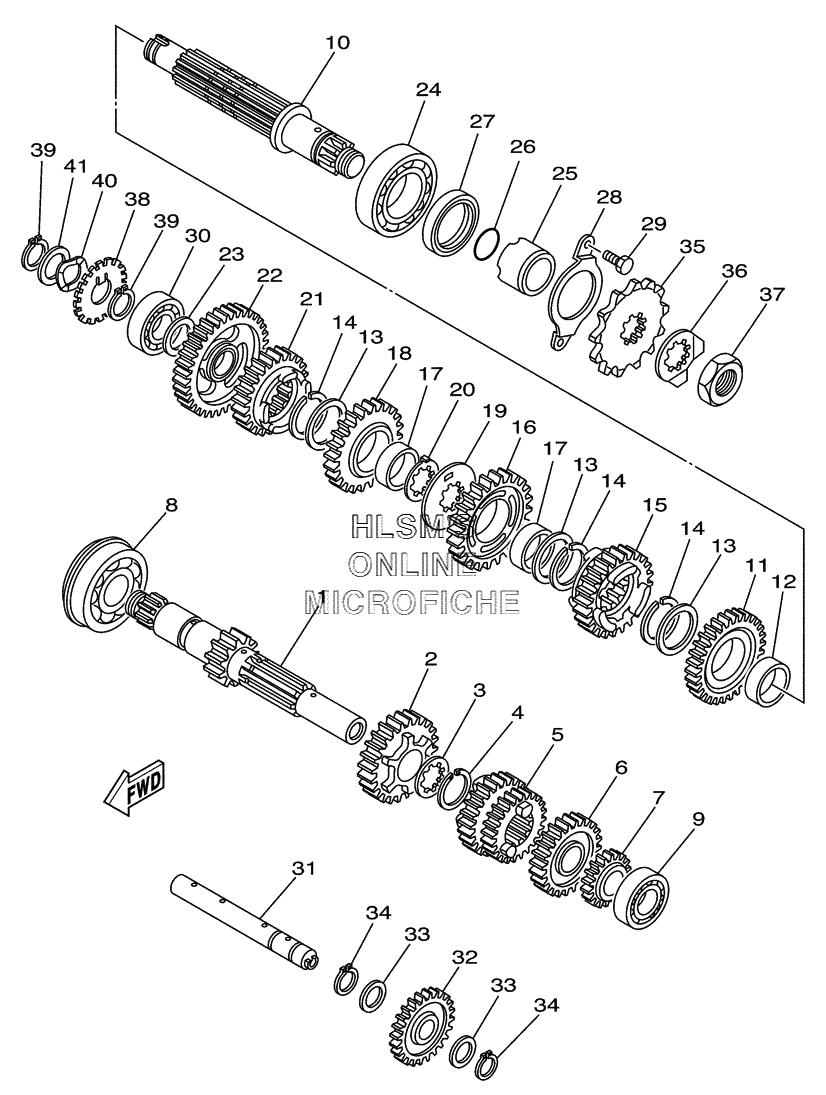

TRANSMISSION для Yamaha RAPTOR 660R LIMITED EDITION YFM660RLES - 2004 года выпуска
-
№АртикулНазвание
-
15LP-17401-10-00 AXLE, MAIN (12T)AXLE, MAIN (12T)
-
25LP-17151-00-00 GEAR, 5TH PINION (21T)GEAR, 5TH PINION (21T)
-
390209-21332-00 WASHERWASHER
-
493440-25084-00 CIRCLIPCIRCLIP
-
55LP-17121-10-00 GEAR, 2ND PINION (18T/21T)GEAR, 2ND PINION (18T/21T)
-
65LP-17141-10-00 GEAR, 4TH PINION (21T)GEAR, 4TH PINION (21T)
-
75LP-17143-20-00 GEAR, REVERSE PINION 1 (16T)GEAR, REVERSE PINION 1 (16T)
-
893306-30540-00 BEARING (6305NRX1C3)BEARING (6305NRX1C3)
-
993306-00428-00 BEARINGBEARING
-
105LP-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
115LP-17243-20-00 GEAR, REVERSE WHEEL 1 (28T)GEAR, REVERSE WHEEL 1 (28T)
-
1290387-2813C-00 COLLARCOLLAR
-
1390209-25342-00 WASHERWASHER
-
1493440-28062-00 CIRCLIPCIRCLIP
-
155LP-17241-10-00 GEAR, 4TH WHEEL (22T)GEAR, 4TH WHEEL (22T)
-
165LP-17221-10-00 GEAR, 2ND WHEEL (30T)GEAR, 2ND WHEEL (30T)
-
1790387-2813D-00 COLLARCOLLAR
-
185LP-17231-10-00 GEAR, 3RD WHEEL (27T)GEAR, 3RD WHEEL (27T)
-
1990209-25349-00 WASHERWASHER
-
2090209-25350-00 WASHERWASHER
-
215LP-17251-10-00 GEAR, 5TH WHEEL (19T)GEAR, 5TH WHEEL (19T)
-
225LP-17211-10-00 GEAR, 1ST WHEEL (31T)GEAR, 1ST WHEEL (31T)
-
2390201-20276-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
2493306-30535-00 BEARINGBEARING
-
2590387-2505V-00 COLLARCOLLAR
-
2693210-22298-00 O-RINGO-RING
-
2793102-35393-00 OIL SEALOIL SEAL
-
285LP-17471-00-00 PLATE, COVERPLATE, COVER
-
2997027-06014-00 BOLTBOLT
-
3093306-00426-00 BEARINGBEARING
-
315LP-17432-00-00 AXLE, IDLEAXLE, IDLE
-
325LP-17281-20-00 GEAR, DRIVE 1 (23T)GEAR, DRIVE 1 (23T)
-
3390201-150U6-00 WASHER, PLATEWASHER, PLATE
-
3493440-15012-00 CIRCLIPCIRCLIP
-
359383E-13216-00 SPROCKET, DRIVE (13T)SPROCKET, DRIVE (13T)
-
3690215-21256-00 WASHER, LOCKWASHER, LOCK
-
3790179-18020-00 NUTNUT
-
385LP-17446-00-00 PLATEPLATE
-
3999009-20400-00 CIRCLIPCIRCLIP
-
4090206-20037-00 WASHER, WAVEWASHER, WAVE
-
4190201-20276-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
