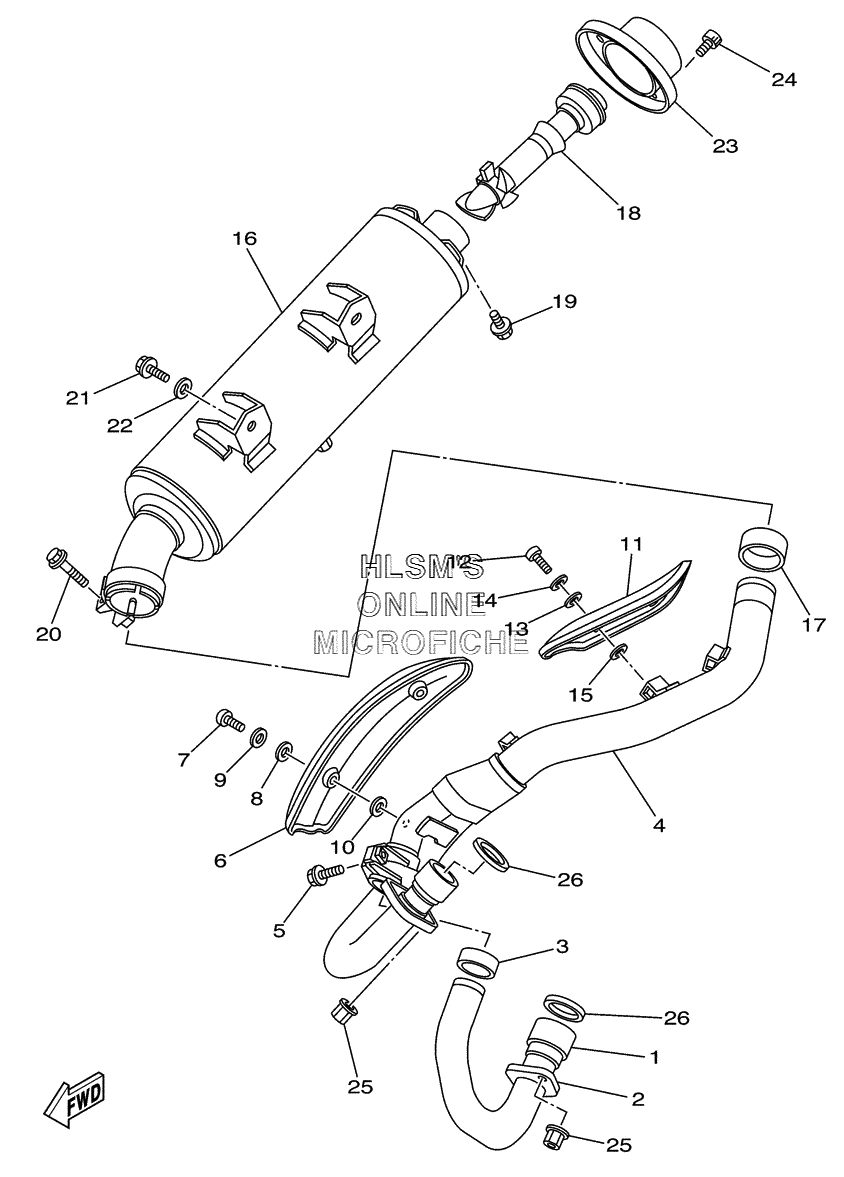

EXHAUST для Yamaha RAPTOR 660R LIMITED EDITION YFM660RLES - 2004 года выпуска
-
№АртикулНазвание
-
15LP-14611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
23YF-14612-00-00 NUT, RINGNUT, RING
-
33YF-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
45LP-14621-00-00 PIPE, EXHAUST 2PIPE, EXHAUST 2
-
595027-08025-00 BOLT, FLANGEBOLT, FLANGE
-
65LP-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
792014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
84BD-14766-00-00 WASHER, PROTECTORWASHER, PROTECTOR
-
992990-06200-00 WASHER, PLAINWASHER, PLAIN
-
105LP-14766-00-00 WASHER, PROTECTORWASHER, PROTECTOR
-
115LP-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
1292017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
134BD-14766-00-00 WASHER, PROTECTORWASHER, PROTECTOR
-
1492907-06200-00 WASHERWASHER
-
154BD-14766-00-00 WASHER, PROTECTORWASHER, PROTECTOR
-
165LP-14711-10-00 MUFFLER 1MUFFLER 1
-
175LP-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
185LP-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
1995027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
2095817-08035-00 BOLT, FLANGEBOLT, FLANGE
-
2190105-082A0-00 BOLT, FLANGEBOLT, FLANGE
-
2290201-08326-00 WASHER, PLATEWASHER, PLATE
-
235TG-14787-00-00 CAP, SILENCERCAP, SILENCER
-
2490110-06134-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590179-06668-00 NUTNUT
-
263YF-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
