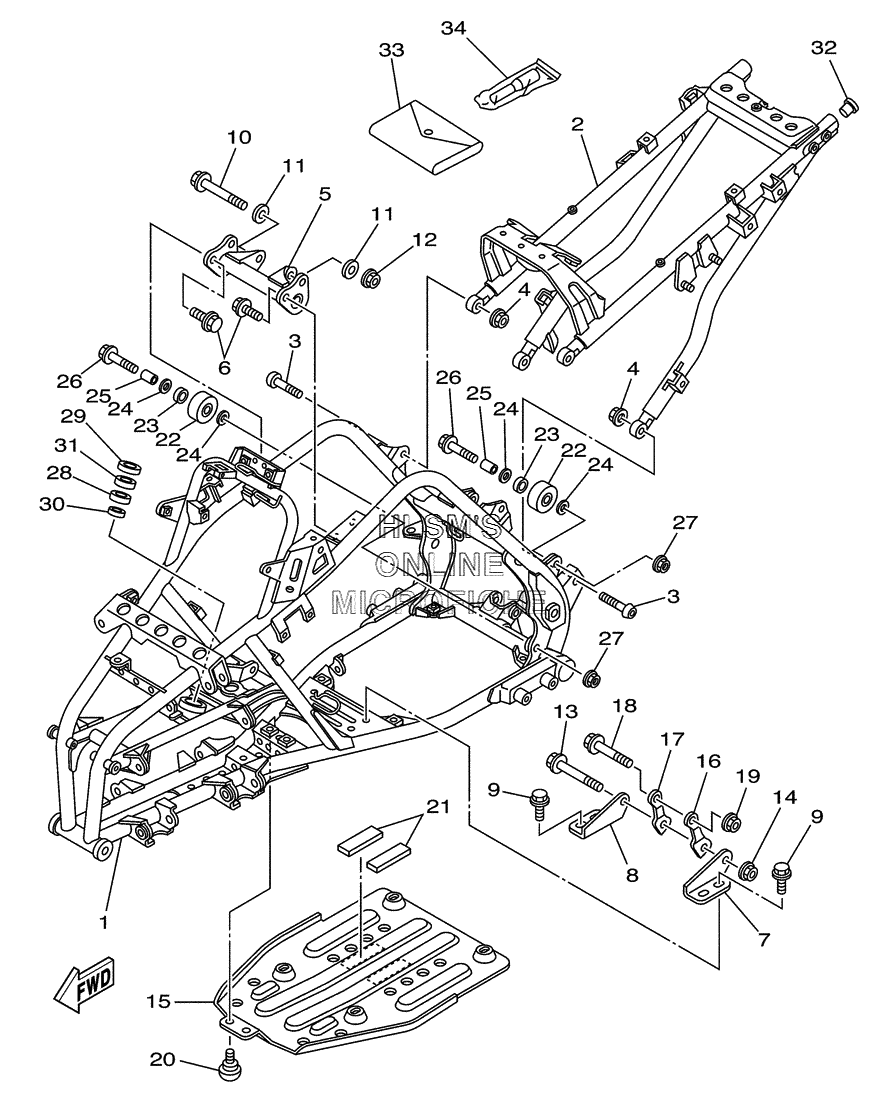

FRAME для Yamaha RAPTOR 660R LIMITED EDITION YFM660RLES - 2004 года выпуска
-
№АртикулНазвание
-
15LP-21101-59-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
25LP-21190-59-00 REAR FRAME COMP.REAR FRAME COMP.
-
392017-10030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
45LP-21244-00-00 NUTNUT
-
55LP-21315-10-00 STAY, ENGINE 2STAY, ENGINE 2
-
695817-08014-00 BOLT, FLANGEBOLT, FLANGE
-
75LP-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
85LP-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
995817-10020-00 BOLT, FLANGEBOLT, FLANGE
-
1095817-10100-00 BOLT, FLANGEBOLT, FLANGE
-
1190201-10591-00 WASHER, PLATEWASHER, PLATE
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1395817-10100-00 BOLT, FLANGEBOLT, FLANGE
-
1495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
155LP-21471-00-00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
165LP-21318-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
175LP-21314-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
1895817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
1995607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090109-066G1-00 BOLTBOLT
-
2141R-21717-00-00 DAMPERDAMPER
-
225LP-22178-00-00 TENSIONERTENSIONER
-
2393300-60804-00 BEARINGBEARING
-
2490201-086P8-00 WASHER, PLATEWASHER, PLATE
-
2590387-08009-00 COLLARCOLLAR
-
2695817-08050-00 BOLT, FLANGEBOLT, FLANGE
-
2795607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2893306-20331-00 BEARINGBEARING
-
2993102-25081-00 OIL SEALOIL SEAL
-
3093102-25099-00 OIL SEALOIL SEAL
-
315GT-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
3290338-18122-00 PLUGPLUG
-
334WV-28100-00-00 TOOL KITTOOL KIT
-
341NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
