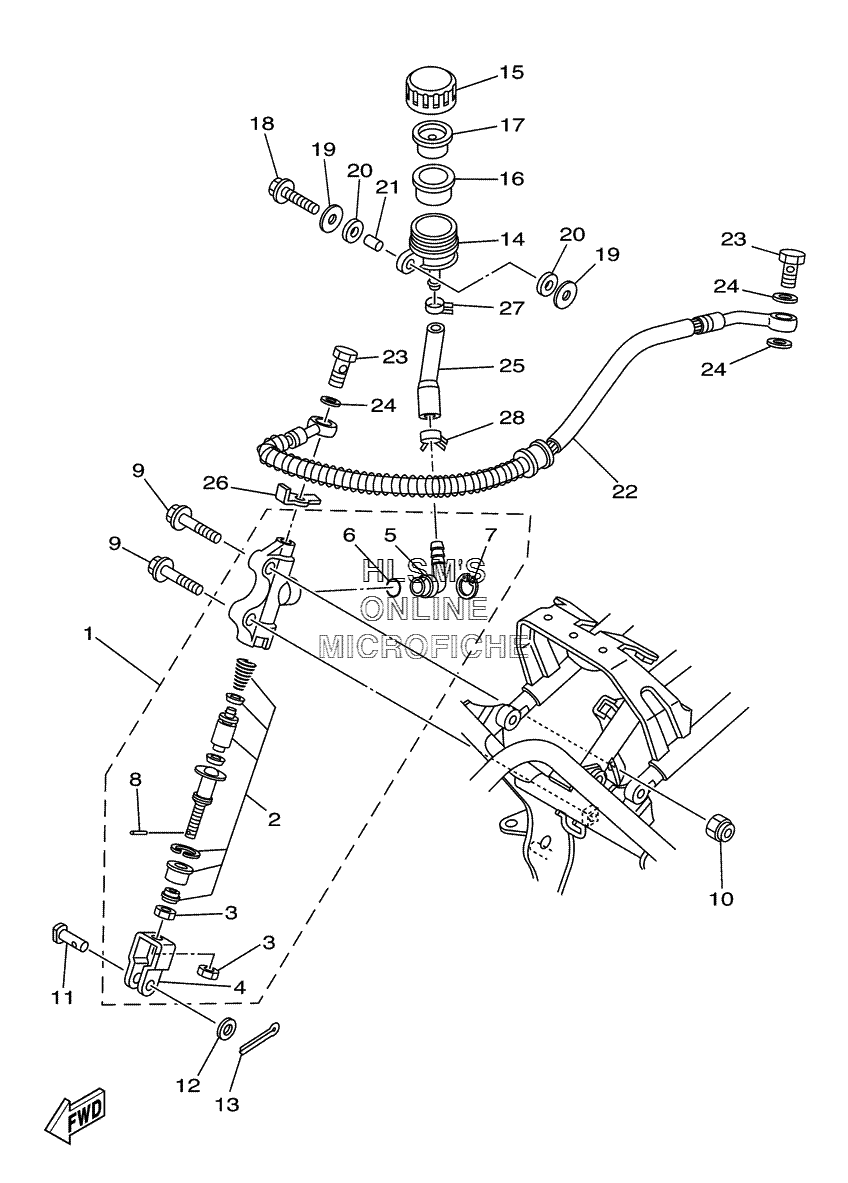

BRAKE - REAR MASTER CYLINDER для Yamaha RAPTOR 660R YFM660RT - 2005 года выпуска
-
№АртикулНазвание
-
14PT-2580E-00-00 REAR MASTER CYLINDER ASSY.REAR MASTER CYLINDER ASSY.
-
24BA-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
395302-08600-00 ...NUT...NUT
-
42YK-27222-00-00 ...JOINT...JOINT
-
52YK-2582A-00-00 ...JOINT...JOINT
-
693210-15620-00 ...O-RING...O-RING
-
72VN-25866-00-00 ...CIRCLIP...CIRCLIP
-
83KW-27234-00-00 ...PIN, BRAKE ROD...PIN, BRAKE ROD
-
995027-08030-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190240-08124-00 PIN, CLEVISPIN, CLEVIS
-
1290201-08083-00 WASHER, PLATEWASHER, PLATE
-
1391401-16012-00 PIN, COTTERPIN, COTTER
-
145LP-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
154PX-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
162VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
172VN-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1890105-06597-00 BOLT, FLANGEBOLT, FLANGE
-
1990201-06057-00 WASHER, PLATEWASHER, PLATE
-
2090202-08146-00 WASHER, PLATEWASHER, PLATE
-
2190387-06M06-00 COLLARCOLLAR
-
225LP-25874-00-00 HOSE, BRAKEHOSE, BRAKE
-
2390401-10159-00 BOLT, UNIONBOLT, UNION
-
2490201-10118-00 WASHER, PLATEWASHER, PLATE
-
255LP-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
265LP-25844-00-00 WASHER, LOCKWASHER, LOCK
-
2790467-11044-00 CLIP, SCISSORCLIP, SCISSOR
-
2890467-14057-00 CLIP, SCISSORCLIP, SCISSOR
