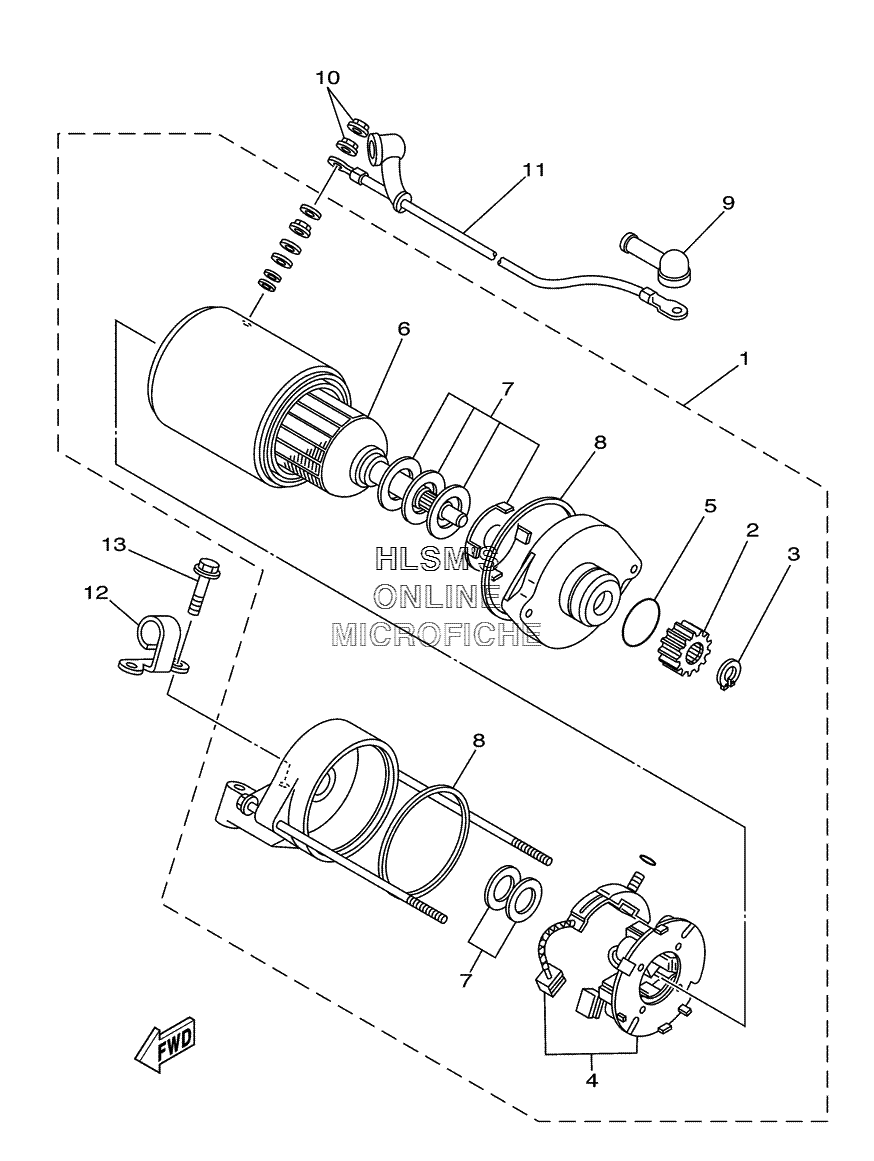

STARTING MOTOR для Yamaha RAPTOR 660R YFM660RT - 2005 года выпуска
-
№АртикулНазвание
-
13SX-81890-00-00 MOTOR ASSY.MOTOR ASSY.
-
21VJ-15511-00-00 ...GEAR, STARTING MOTOR...GEAR, STARTING MOTOR
-
393440-11024-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
43AJ-81801-00-00 ...BRUSH SET...BRUSH SET
-
51FK-81847-00-00 ...O-RING...O-RING
-
63AJ-81850-00-00 ...ARMATURE ASSY....ARMATURE ASSY.
-
73AJ-81809-00-00 ...WASHER KIT...WASHER KIT
-
811H-81844-00-00 ...GASKET...GASKET
-
94G0-81871-00-00 CAPCAP
-
104XV-8182A-00-00 NUTNUT
-
113XF-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
125LP-26393-00-00 HOLDERHOLDER
-
1395817-06030-00 BOLT, FLANGEBOLT, FLANGE
