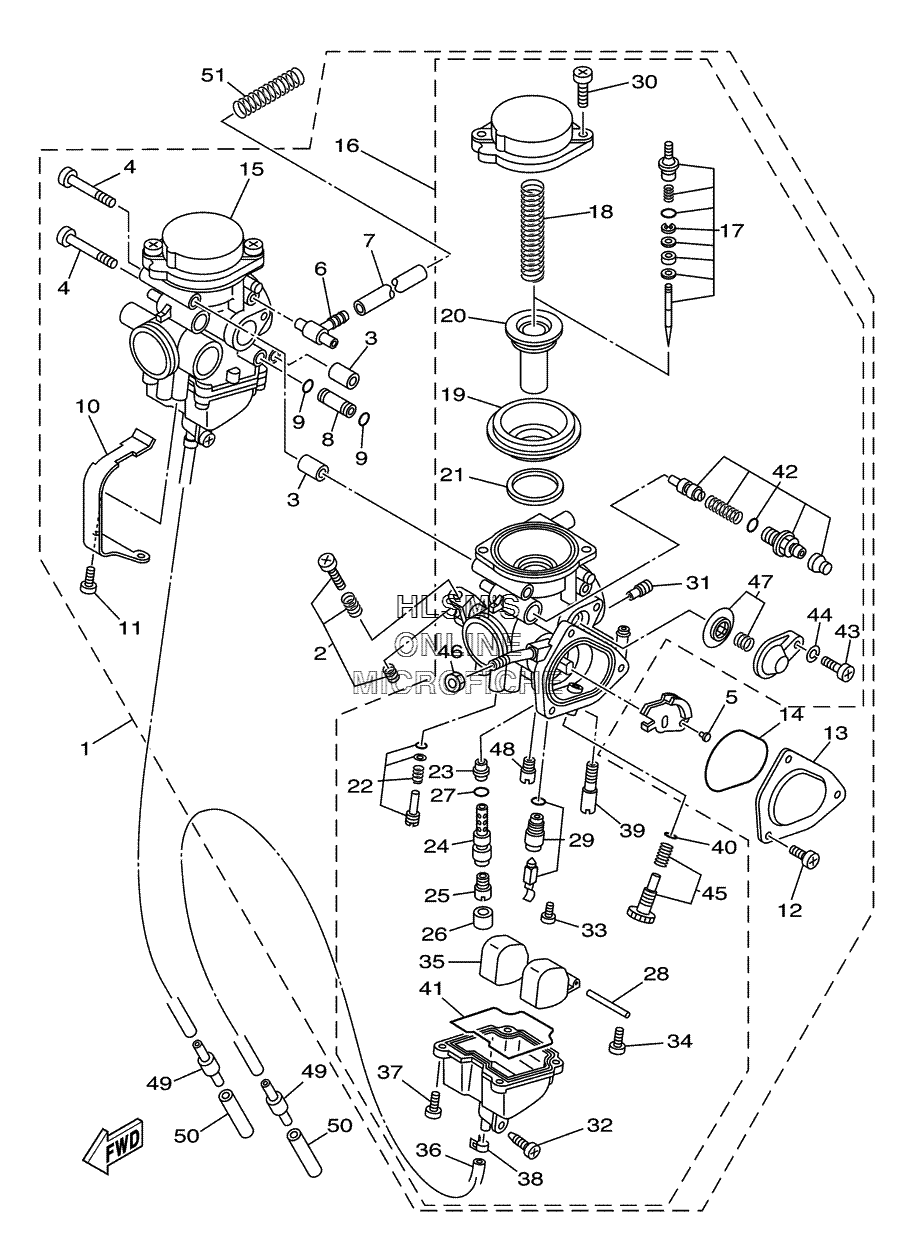

CARBURETOR для Yamaha RAPTOR 660R YFM660RT - 2005 года выпуска
-
№АртикулНазвание
-
15LP-14900-30-00 CARBURETOR ASSY.CARBURETOR ASSY.
-
23EN-1490K-00-00 ...STOP SCREW SET...STOP SCREW SET
-
35LP-14996-00-00 ...PIPE...PIPE
-
43LN-14216-00-00 ...SCREW...SCREW
-
51UY-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
65EA-14167-00-00 ...CONNECTOR...CONNECTOR
-
75LP-14349-00-00 ...PIPE...PIPE
-
85DM-14148-00-00 ...PIPE...PIPE
-
936Y-14147-00-00 ...O-RING...O-RING
-
105LP-14945-00-00 ...PLATE...PLATE
-
113DM-14216-00-00 ...SCREW...SCREW
-
1298507-04006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
134WV-14293-00-00 ...COVER 1...COVER 1
-
145LP-14147-00-00 ...O-RING...O-RING
-
155LP-14902-00-00 ...CARBURETOR ASSY. 2...CARBURETOR ASSY. 2
-
165LP-14901-00-00 ...CARBURETOR ASSY. 1...CARBURETOR ASSY. 1
-
175LP-1490J-00-00 ......NEEDLE SET......NEEDLE SET
-
184KM-14933-00-00 ......SPRING, DIAPHRAGM......SPRING, DIAPHRAGM
-
195GH-14940-10-00 ......DIAPHRAGM ASSY.......DIAPHRAGM ASSY.
-
205LP-14112-00-00 ......VALVE, THROTTLE 1......VALVE, THROTTLE 1
-
215LP-14918-00-00 ......RING......RING
-
225LP-14105-00-00 ......PILOT SCREW SET (FOR 14901)......PILOT SCREW SET (FOR 14901)
-
225LP-14105-10-00 ......PILOT SCREW SET (FOR 14902)......PILOT SCREW SET (FOR 14902)
-
235DM-14141-46-00 ......NOZZLE, MAIN......NOZZLE, MAIN
-
245GH-14261-10-00 ......HOLDER......HOLDER
-
253G2-14231-28-00 ......JET, MAIN (#140) (FOR 14901)......JET, MAIN (#140) (FOR 14901)
-
253G2-14231-29-00 ......JET, MAIN (#145) (FOR 14902)......JET, MAIN (#145) (FOR 14902)
-
265GH-14918-00-00 ......RING......RING
-
27583-14561-00-00 ......O-RING......O-RING
-
28127-14186-00-00 ......PIN, FLOAT......PIN, FLOAT
-
295LP-14107-20-00 ......NEEDLE VALVE SET......NEEDLE VALVE SET
-
304KM-14216-00-00 ......SCREW......SCREW
-
311HX-14231-16-00 ......JET, MAIN (# 80) (FOR 14901)......JET, MAIN (# 80) (FOR 14901)
-
311HX-14231-30-00 ......JET, MAIN (#150) (FOR 14902)......JET, MAIN (#150) (FOR 14902)
-
3212R-14191-00-00 ......PLUG, DRAIN......PLUG, DRAIN
-
3398507-04008-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
341FN-14565-00-00 ......SCREW......SCREW
-
355DM-14985-00-00 ......FLOAT......FLOAT
-
364KB-14193-20-00 ......PIPE......PIPE
-
3798502-04010-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
3890467-06194-00 ......CLIP......CLIP
-
394KM-14142-22-00 ......JET, PILOT (# 22.5)......JET, PILOT (# 22.5)
-
40812-14147-00-00 ......O-RING......O-RING
-
415DM-14561-00-00 ......O-RING......O-RING
-
425GH-1410A-00-00 ......STARTER SET FOR 14901......STARTER SET FOR 14901
-
4398507-04014-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
4492907-04100-00 ......WASHER, SPRING......WASHER, SPRING
-
455LP-14103-00-00 ......THROTTLE SCREW SET FOR 14901......THROTTLE SCREW SET FOR 14901
-
46522-14161-00-00 ......NUT, CABLE ADJUSTING FOR 14901......NUT, CABLE ADJUSTING FOR 14901
-
475EL-1490H-00-00 ......DIAPHRAGM SET 5 FOR 14901......DIAPHRAGM SET 5 FOR 14901
-
483G2-14231-19-00 ......JET, POWER (# 95) FOR 14901......JET, POWER (# 95) FOR 14901
-
4924W-14193-00-00 PIPEPIPE
-
5091A20-07004-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
5190501-08430-00 SPRING, COMPRESSIONSPRING, COMPRESSION
