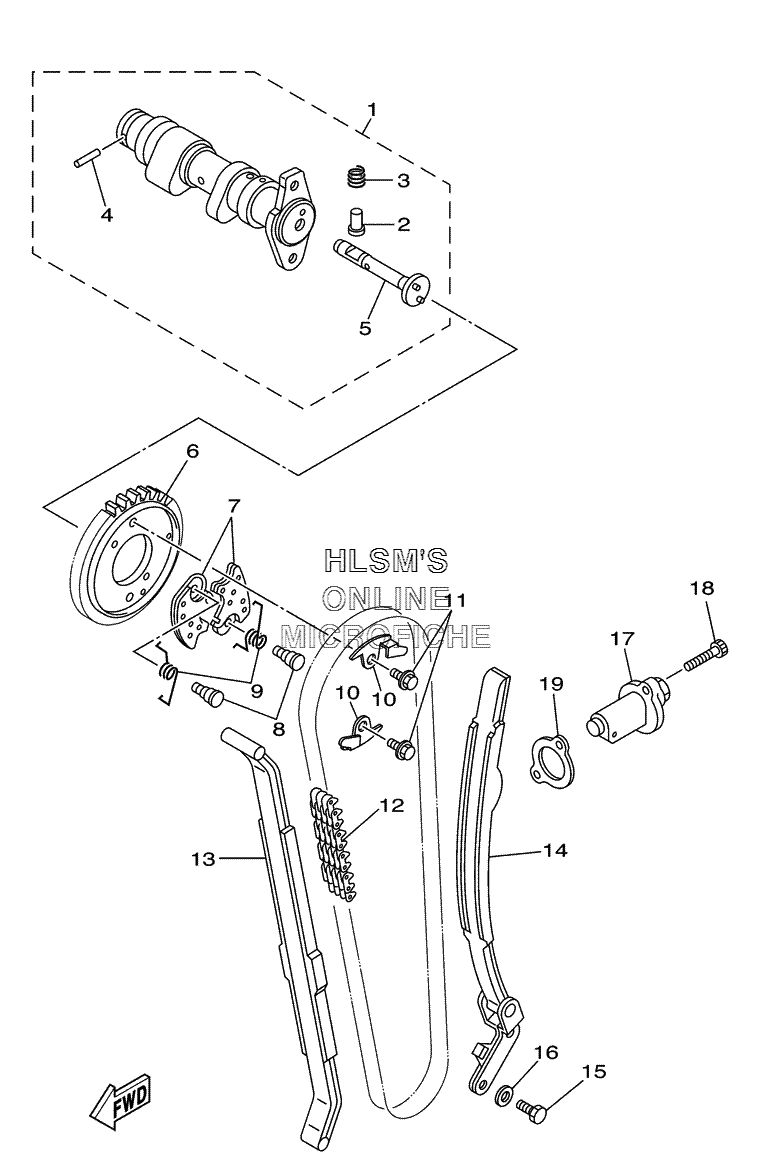

CAMSHAFT W/ CHAIN для Yamaha RAPTOR 660R YFM660RT - 2005 года выпуска
-
№АртикулНазвание
-
15LP-12170-00-00 CAMSHAFT ASSY. 1CAMSHAFT ASSY. 1
-
23YF-12284-00-00 ...PIN, DECOMPRESSION LEVER...PIN, DECOMPRESSION LEVER
-
390501-05001-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
493603-21180-00 ...PIN, DOWEL...PIN, DOWEL
-
53YF-12290-00-00 ...LEVER, DECOMPRESSION SPRING...LEVER, DECOMPRESSION SPRING
-
63YF-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
73YF-12288-00-00 CAM, DECOMPRESSIONCAM, DECOMPRESSION
-
83YF-12247-00-00 SHAFT, TENSIONERSHAFT, TENSIONER
-
95KM-12216-00-00 SPRINGSPRING
-
103YF-12233-01-00 PLATE, GUIDE STOPPER 1PLATE, GUIDE STOPPER 1
-
1190105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
1294591-45126-00 CHAIN (82RH2015-126)CHAIN (82RH2015-126)
-
1334K-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
1434K-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1597027-06016-00 BOLTBOLT
-
1692907-06600-00 WASHER, PLATEWASHER, PLATE
-
173TB-12210-00-00 TENSIONER ASSY., CAM CHAINTENSIONER ASSY., CAM CHAIN
-
1891317-06025-00 BOLTBOLT
-
194DW-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
