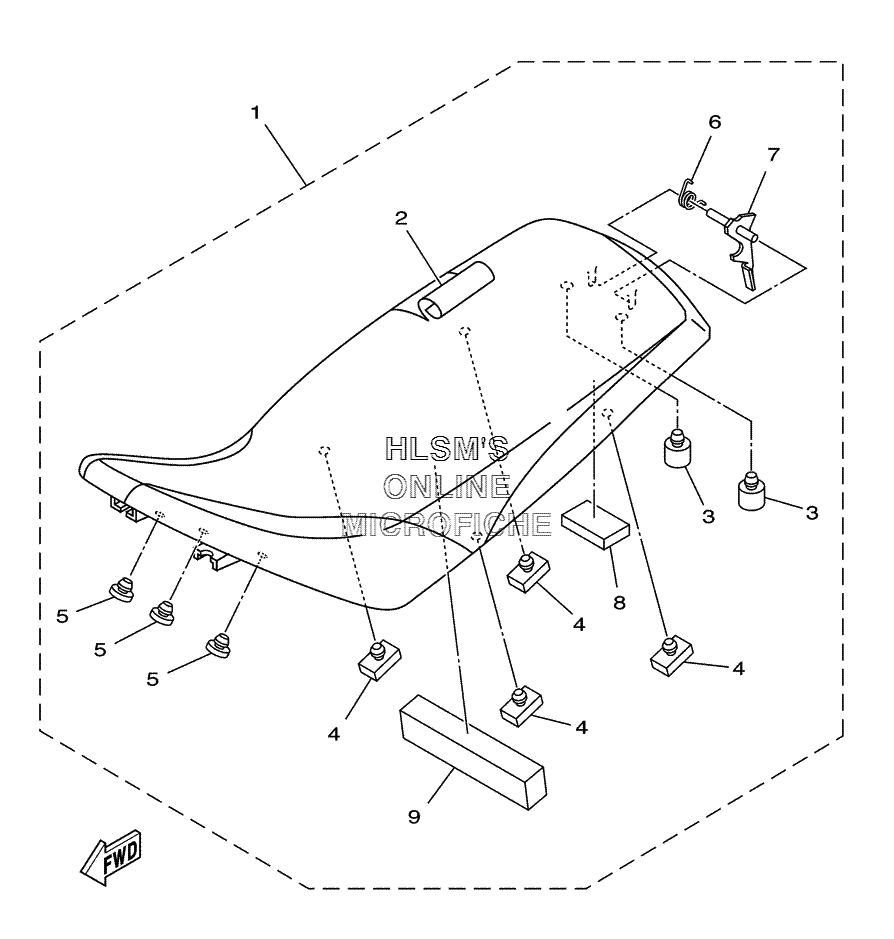

SEAT для Yamaha RAPTOR 660R YFM660RT - 2005 года выпуска
-
№АртикулНазвание
-
15LP-24710-00-00 SINGLE SEAT ASSY.SINGLE SEAT ASSY.
-
25LP-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
3371-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
4214-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
522W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
690508-23567-00 ...SPRING, TORSION...SPRING, TORSION
-
75LP-24776-00-00 ...LEVER, SEAT...LEVER, SEAT
-
85LP-24725-00-00 ...SPACER...SPACER
-
95LP-24729-00-00 ...SPACER 2...SPACER 2
