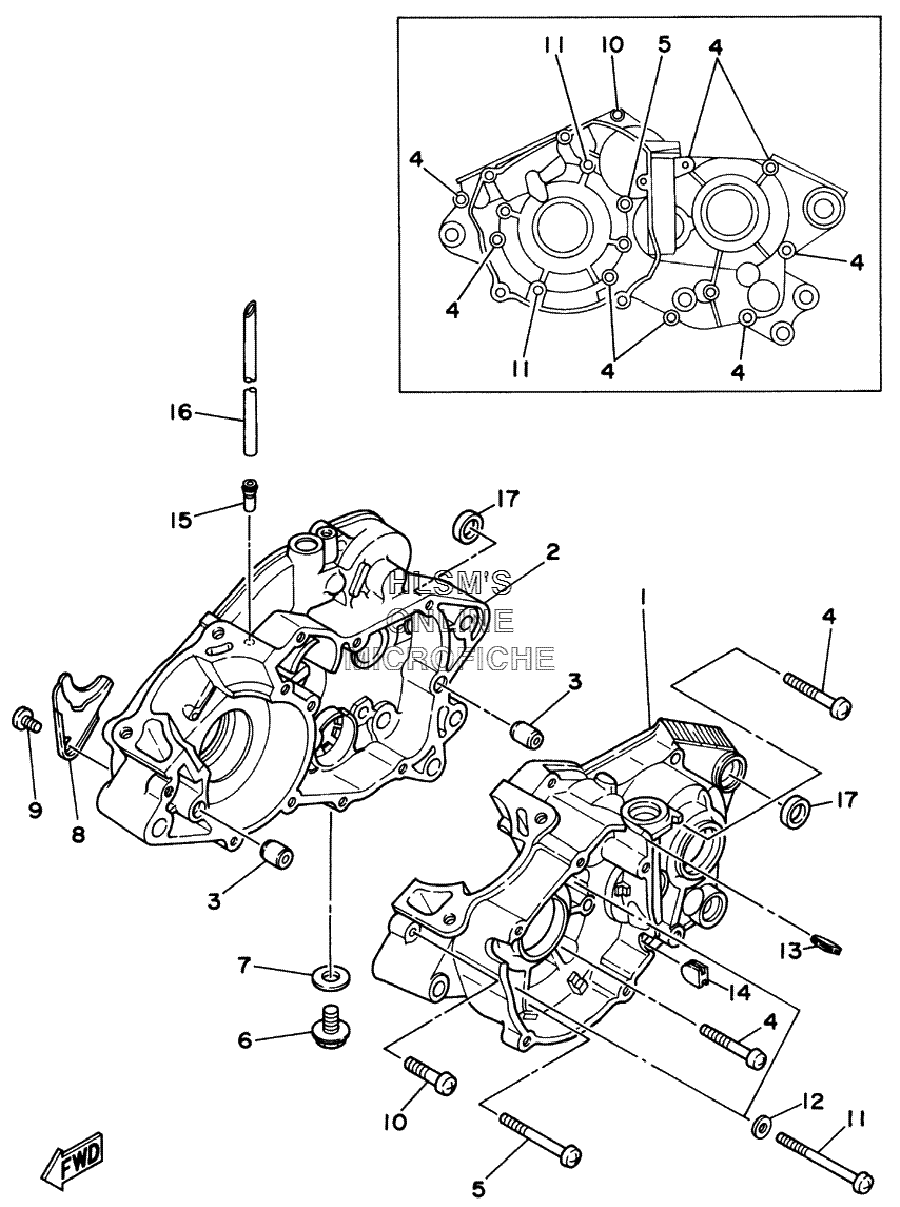

CRANKCASE для Yamaha BLASTER SE YFS200SEV - 2006 года выпуска
-
№АртикулНазвание
-
12XJ-15111-01-00 CRANKCASE 1CRANKCASE 1
-
22XJ-15121-00-00 CRANKCASE 2CRANKCASE 2
-
399530-12016-00 PIN, DOWELPIN, DOWEL
-
498507-06045-00 SCREW, PAN HEADSCREW, PAN HEAD
-
598507-06060-00 SCREW, PAN HEADSCREW, PAN HEAD
-
690340-12059-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
790201-12172-00 WASHER, PLATEWASHER, PLATE
-
837F-15128-00-00 HOLDERHOLDER
-
998507-08010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1098507-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1198507-06075-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1292907-06600-00 WASHER, PLATEWASHER, PLATE
-
1390480-01209-00 GROMMETGROMMET
-
1490338-09206-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
15137-13115-01-00 CONNECTOR, SUCTION PIPECONNECTOR, SUCTION PIPE
-
1690445-09019-00 HOSEHOSE
-
1790201-166L5-00 WASHER, PLATEWASHER, PLATE
