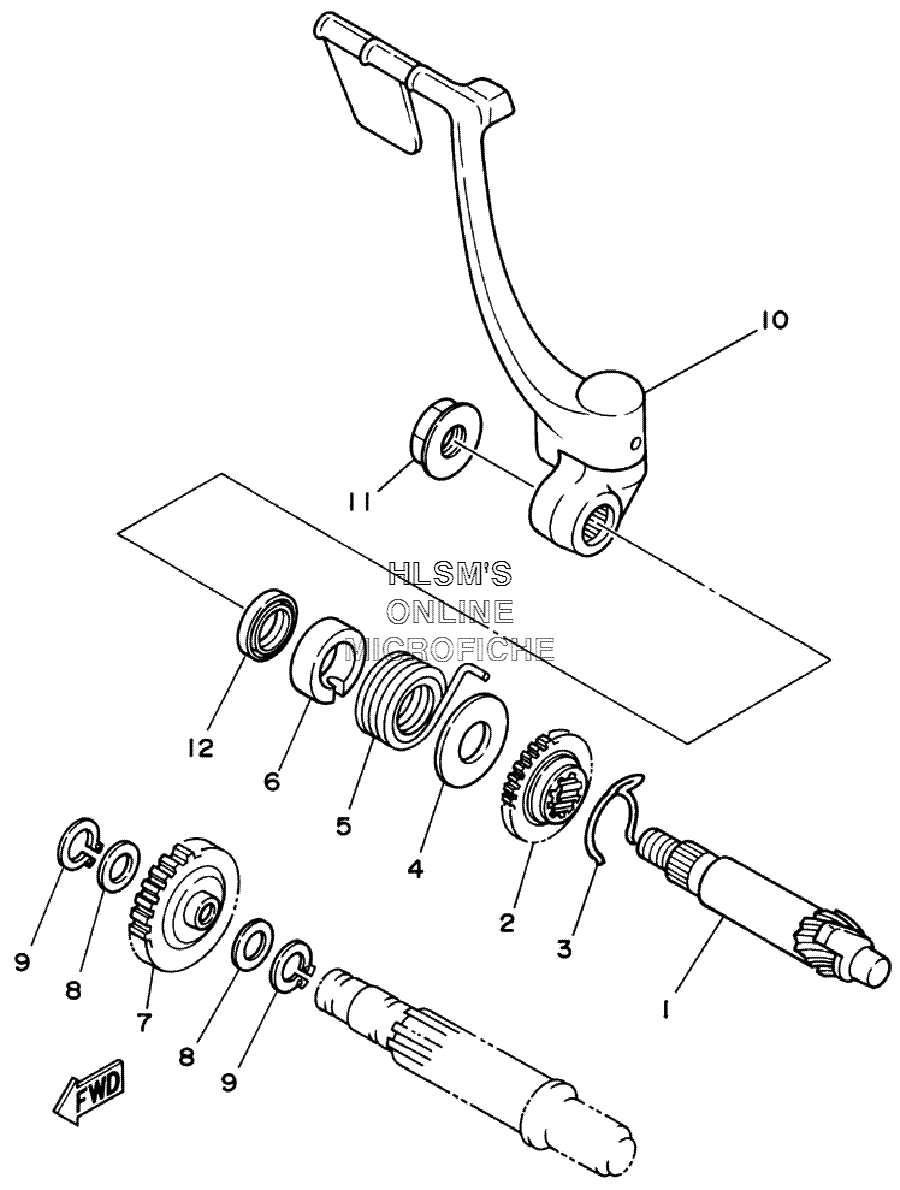

STARTER - KICK для Yamaha BLASTER SE YFS200SEV - 2006 года выпуска
-
№АртикулНазвание
-
110V-15660-00-00 KICK AXLE ASSY.KICK AXLE ASSY.
-
210V-15641-00-00 GEAR, KICK (23T)GEAR, KICK (23T)
-
390468-26048-00 CLIPCLIP
-
490201-200J7-00 WASHER, PLATEWASHER, PLATE
-
590508-26667-00 SPRING, TORSIONSPRING, TORSION
-
610V-15666-00-00 GUIDE, SPRINGGUIDE, SPRING
-
710V-15651-00-00 GEAR, KICK IDLE (29T)GEAR, KICK IDLE (29T)
-
890201-154E8-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
999009-15400-00 CIRCLIPCIRCLIP
-
102XJ-15620-10-00 KICK CRANK ASSY.KICK CRANK ASSY.
-
1190179-12659-00 NUTNUT
-
1293109-20014-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
