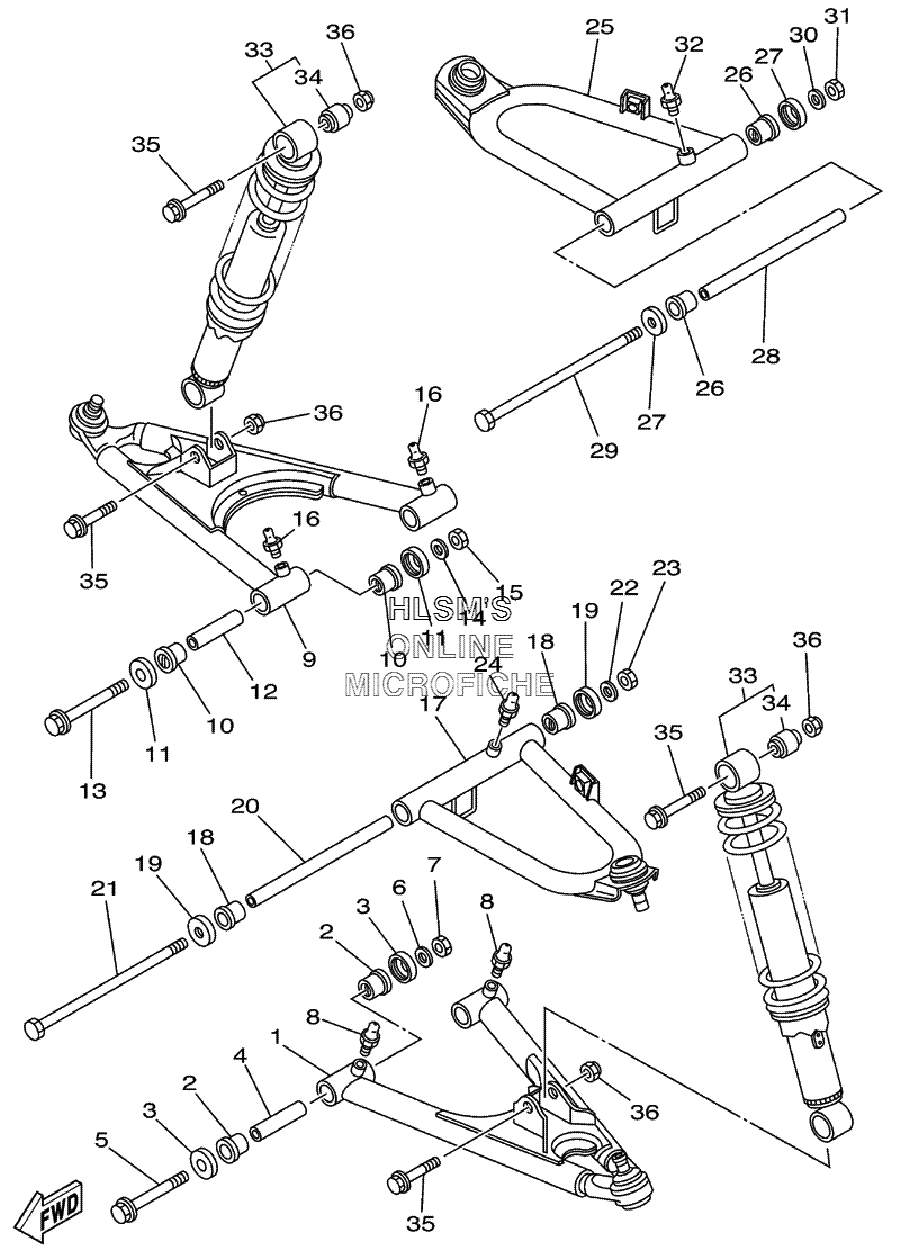

SUSPENSION - FRONT WHEEL для Yamaha BLASTER SE YFS200SEV - 2006 года выпуска
-
№АртикулНазвание
-
13JM-23570-00-P2 FRONT LOWER ARM COMP. (LEFT) (MATTE BLK. 2)FRONT LOWER ARM COMP. (LEFT) (MATTE BLK. 2)
-
290381-15088-00 BUSH, SOLIDBUSH, SOLID
-
35YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
490387-101R3-00 COLLARCOLLAR
-
590105-10034-00 BOLT, FLANGEBOLT, FLANGE
-
690201-10430-00 WASHER, PLATEWASHER, PLATE
-
790185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
893700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
93JM-23580-00-P2 FRONT LOWER ARM COMP. (RIGHT) (MATTE BLK. 2)FRONT LOWER ARM COMP. (RIGHT) (MATTE BLK. 2)
-
1090381-15088-00 BUSH, SOLIDBUSH, SOLID
-
115YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1290387-101R3-00 COLLARCOLLAR
-
1390105-10034-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1490201-10430-00 WASHER, PLATEWASHER, PLATE
-
1590185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1693700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
175VM-23540-20-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
1890381-15088-00 BUSH, SOLIDBUSH, SOLID
-
195YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
2090387-101U6-00 COLLARCOLLAR
-
21336-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
2290201-10430-00 WASHER, PLATEWASHER, PLATE
-
2390185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2493700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
255VM-23550-20-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
2690381-15088-00 BUSH, SOLIDBUSH, SOLID
-
275YT-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
2890387-101U6-00 COLLARCOLLAR
-
29336-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
3090201-10430-00 WASHER, PLATEWASHER, PLATE
-
3190185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
332XJ-23350-20-33 SHOCK ABSORBER ASSY. (BLACK)SHOCK ABSORBER ASSY. (BLACK)
-
342XJ-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
3590105-10388-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3690185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
