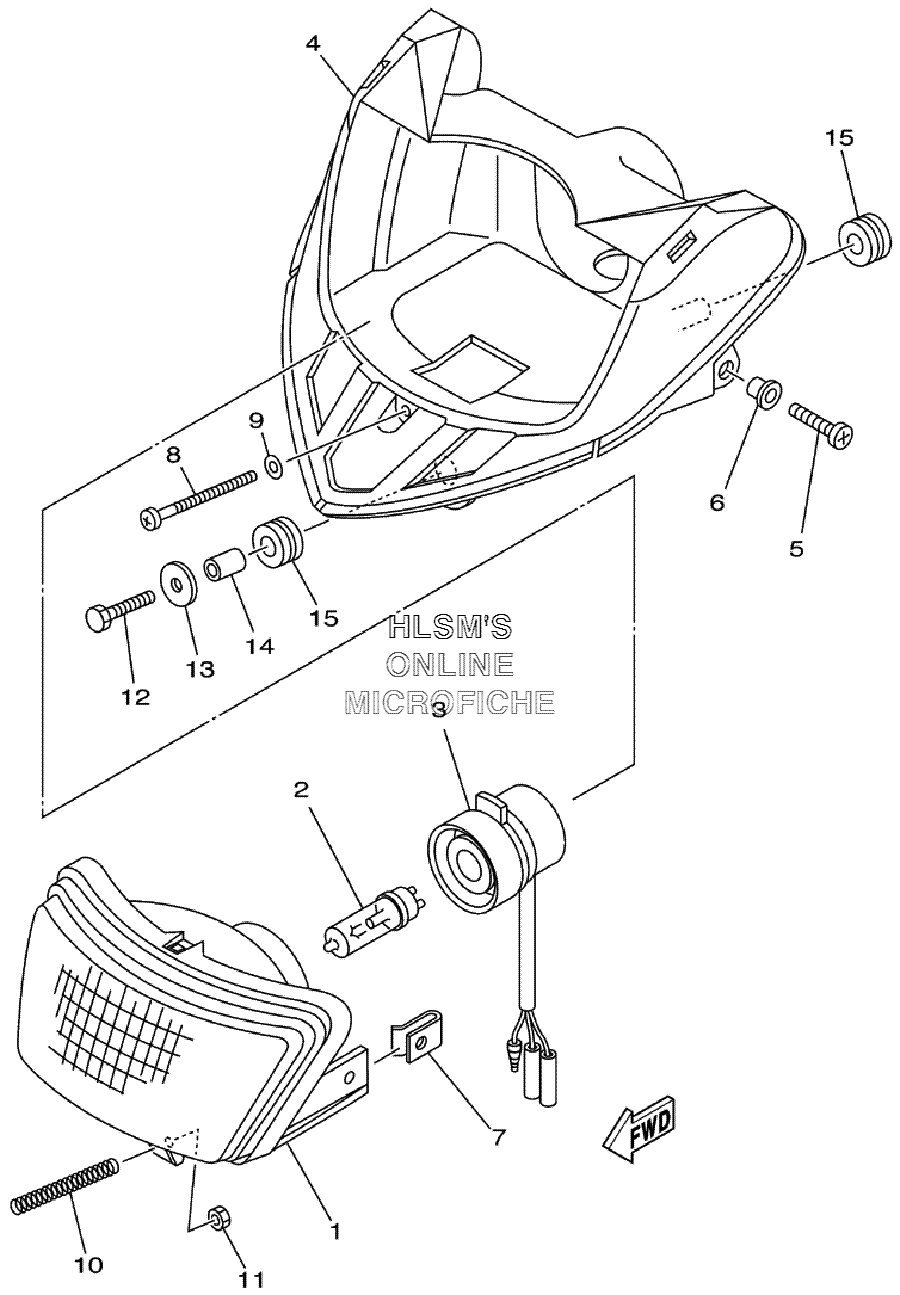

HEADLIGHT для Yamaha BLASTER SE YFS200SEV - 2006 года выпуска
-
№АртикулНазвание
-
15VM-84310-00-00 HEADLIGHT UNIT ASSY.HEADLIGHT UNIT ASSY.
-
25VM-84314-00-00 BULB, HEADLIGHT (12V-35/36.5W) HALOGENBULB, HEADLIGHT (12V-35/36.5W) HALOGEN
-
35VM-84340-00-00 SOCKET CORD ASSY. 1SOCKET CORD ASSY. 1
-
45VM-84111-00-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
55VM-84192-00-00 SCREW, SPECIALSCREW, SPECIAL
-
65VM-84133-00-00 COLLAR, SCREWCOLLAR, SCREW
-
75VM-84117-00-00 NUTNUT
-
85VM-8433E-00-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
95VM-84344-00-00 WASHER, PLAINWASHER, PLAIN
-
105VM-84335-00-00 SPRINGSPRING
-
115VM-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
1297007-06025-00 BOLTBOLT
-
1390201-06380-00 WASHER, PLATEWASHER, PLATE
-
1490387-06299-00 COLLARCOLLAR
-
1590480-14102-00 GROMMETGROMMET
