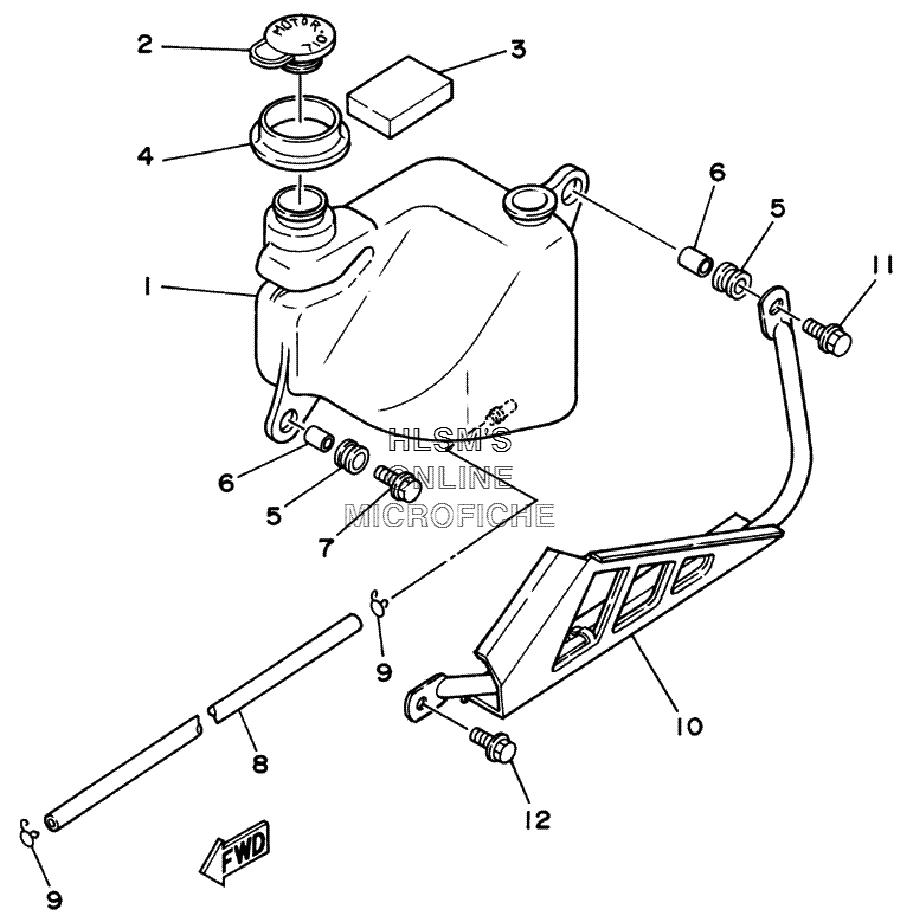

OIL TANK для Yamaha BLASTER SE YFS200SEV - 2006 года выпуска
-
№АртикулНазвание
-
12XJ-21751-01-00 TANK, OILTANK, OIL
-
22N3-21771-01-00 BODY, CAPBODY, CAP
-
32XJ-21746-00-00 DAMPERDAMPER
-
490480-48493-00 GROMMETGROMMET
-
590480-13238-00 GROMMETGROMMET
-
690387-07391-00 COLLARCOLLAR
-
795827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
890445-084J3-00 HOSE (L870)HOSE (L870)
-
990467-08075-00 CLIP, SCISSORCLIP, SCISSOR
-
102XJ-2172W-00-00 COVERCOVER
-
1195827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1295827-06025-00 BOLT, FLANGEBOLT, FLANGE
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER HEAD
- DECALS
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MODEL INFO - MANUALS
- OIL PUMP
- • OIL TANK
- RACK AND BUMPER
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- STARTER - KICK
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
