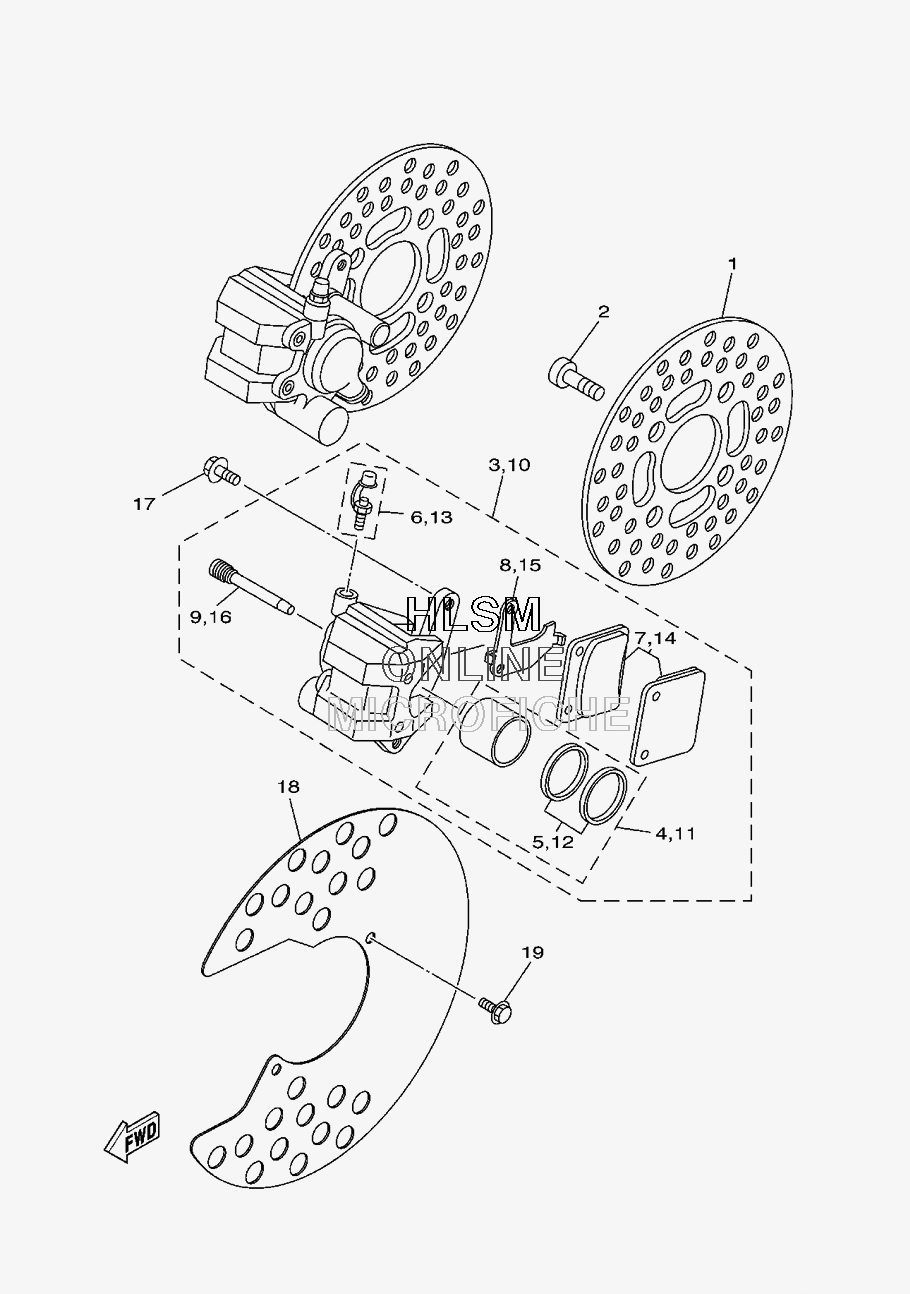

BRAKE - FRONT CALIPER для Yamaha BIG BEAR 250 - 2009 года выпуска
-
№АртикулНазвание
-
14XE-F582T-11-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08082-00 BOLTBOLT
-
33GD-2580T-01-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
43GD-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
53GD-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
61UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
73GD-W0045-01-00 BRAKE PAD KITBRAKE PAD KIT
-
83GD-25827-00-00 SHIM, CALIPERSHIM, CALIPER
-
93GD-25933-00-00 PIN, PADPIN, PAD
-
103GD-2580U-01-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
113GD-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
123GD-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
131UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
143GD-W0045-01-00 BRAKE PAD KITBRAKE PAD KIT
-
153GD-25828-00-00 SHIM, CALIPERSHIM, CALIPER
-
163GD-25933-00-00 PIN, PADPIN, PAD
-
1790105-08161-00 BOLT, FLANGEBOLT, FLANGE
-
184XE-F514A-00-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
1995822-06012-00 BOLT, FLANGEBOLT, FLANGE
