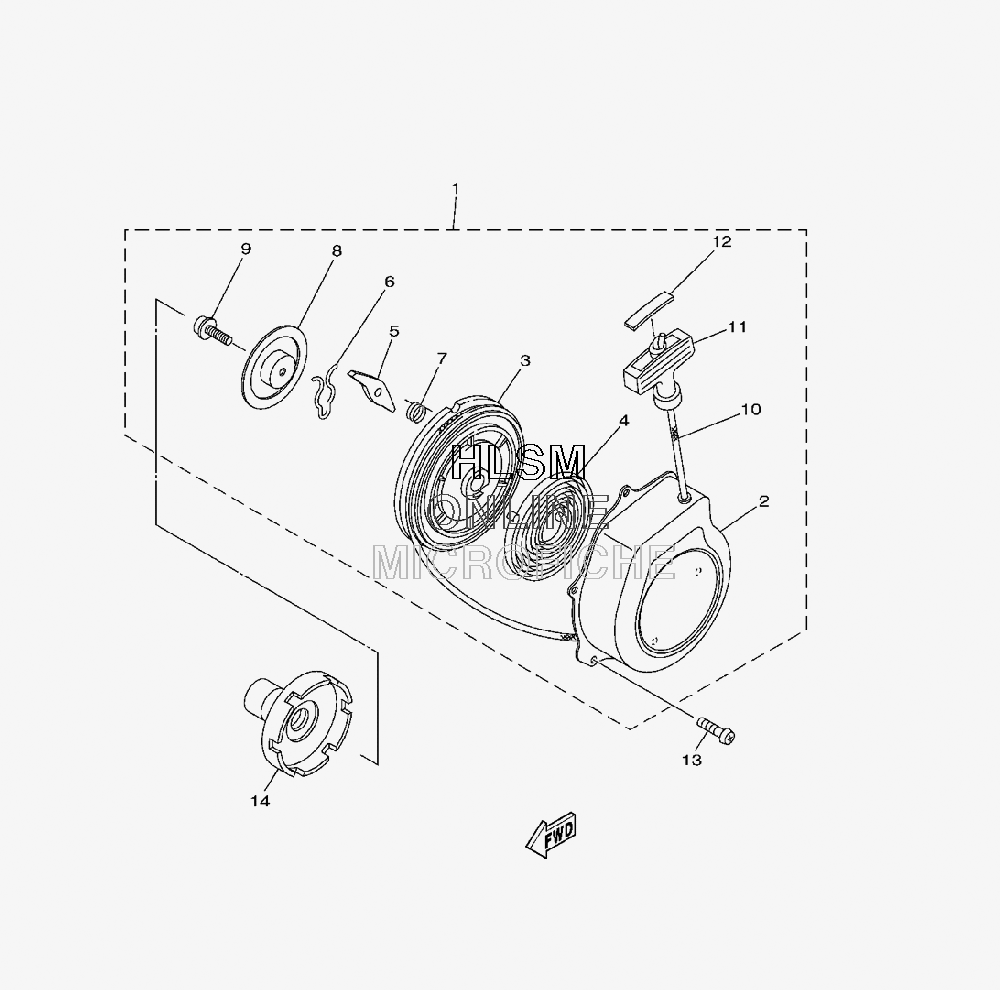

STARTER - RECOIL для Yamaha BIG BEAR 250 - 2009 года выпуска
-
№АртикулНазвание
-
11P0-E5710-00-00 STARTER ASSYSTARTER ASSY
-
21P0-E5711-00-01 CASE, STARTERCASE, STARTER
-
31P0-E5714-00-00 DRUM, SHEAVEDRUM, SHEAVE
-
41P0-E5713-00-01 SPRING, STARTERSPRING, STARTER
-
51P0-E5741-00-00 PAWL, DRIVEPAWL, DRIVE
-
61P0-E5715-00-01 SPRING, FRICTIONSPRING, FRICTION
-
71P0-E5767-00-00 SPRINGSPRING
-
81P0-E5716-00-00 PLATE, DRIVEPLATE, DRIVE
-
91P0-E5793-00-00 SCREWSCREW
-
101P0-E5751-00-00 WIRE, STARTERWIRE, STARTER
-
111P0-E5755-00-01 HANDLE, STARTERHANDLE, STARTER
-
121P0-E5779-00-01 COVERCOVER
-
1398502-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
145XG-E5723-10-00 PULLEY, STARTERPULLEY, STARTER
