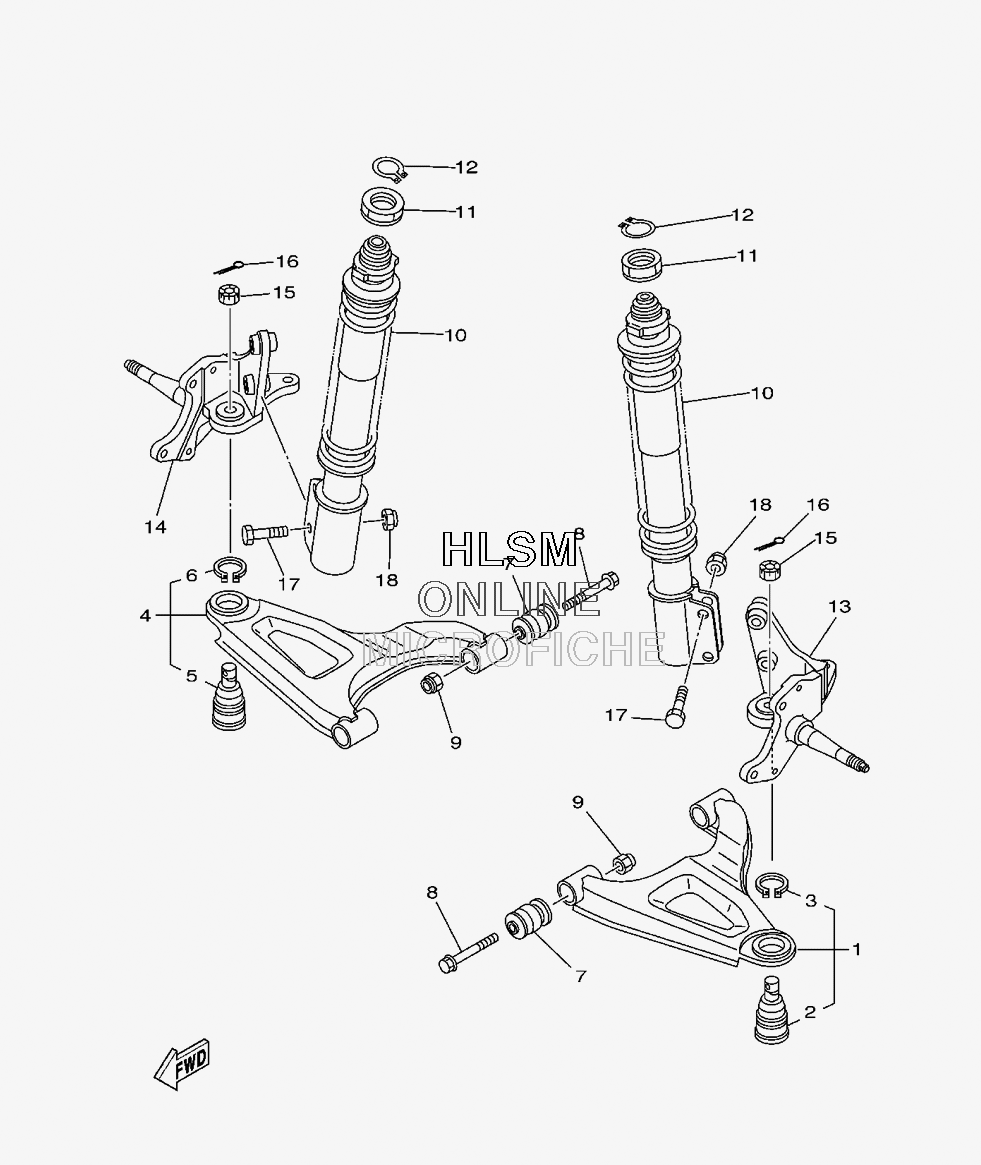

SUSPENSION - FRONT WHEEL для Yamaha BIG BEAR 250 - 2009 года выпуска
-
№АртикулНазвание
-
14XE-F3570-10-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
24XE-F3549-00-00 BALL JOINT 1BALL JOINT 1
-
393410-32826-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
44XE-F3580-10-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
54XE-F3549-00-00 BALL JOINT 1BALL JOINT 1
-
693410-32826-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
72HR-23526-00-00 BUSHBUSH
-
890105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
990185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
104XE-F3350-10-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1190179-35002-00 NUTNUT
-
1299009-32400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
134XE-F3501-21-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
144XE-F3502-21-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
1590171-12001-00 NUT, CASTLENUT, CASTLE
-
1691402-25020-00 PIN, COTTERPIN, COTTER
-
1790101-12811-00 BOLTBOLT
-
1895612-12100-00 NUT, UNUT, U
