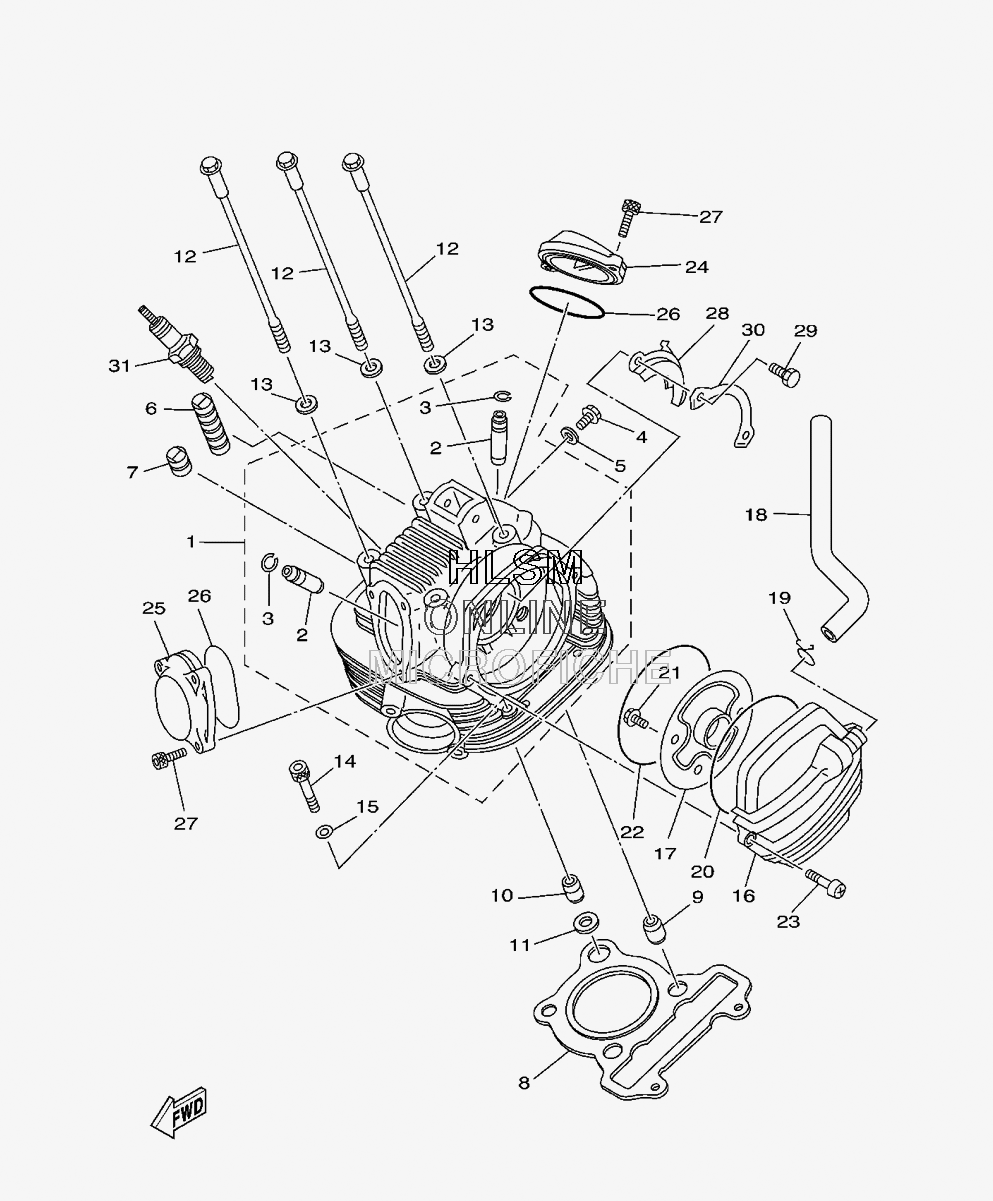

CYLINDER HEAD для Yamaha BIG BEAR 250 - 2009 года выпуска
-
№АртикулНазвание
-
15XG-E1102-01-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25H0-11133-11-00 GUIDE, VALVE 1GUIDE, VALVE 1
-
393440-10085-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
490153-06803-00 SCREW, HEXAGONSCREW, HEXAGON
-
590430-06014-00 GASKETGASKET
-
65XG-E1162-00-00 ABSORBER 2ABSORBER 2
-
75XG-E1161-00-00 ABSORBER 1ABSORBER 1
-
83GH-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
999530-14016-00 PIN, DOWELPIN, DOWEL
-
1093612-16254-00 PIN, DOWELPIN, DOWEL
-
1190430-12186-00 GASKETGASKET
-
1290105-08160-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-088C3-00 WASHER, PLATEWASHER, PLATE
-
1491317-08045-00 BOLTBOLT
-
1590201-087G0-00 WASHER, PLATEWASHER, PLATE
-
165XG-E1160-01-00 BREATHER ASSYBREATHER ASSY
-
175XG-E1165-00-00 PLATE, BREATHERPLATE, BREATHER
-
184XE-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1990467-140A4-00 CLIPCLIP
-
2093210-92800-00 O-RINGO-RING
-
2195027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2293211-058A2-00 O-RINGO-RING
-
2398507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
245XG-E1186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
255XG-E1187-00-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
2693210-57897-00 O-RINGO-RING
-
2791317-06018-00 BOLTBOLT
-
283UR-E111F-00-00 PLATEPLATE
-
2997007-06012-00 BOLTBOLT
-
3090215-06809-00 WASHER, LOCKWASHER, LOCK
-
31NGK-DR7EA-00-00 PLUG, SPARK (NGK DR7EA)PLUG, SPARK (NGK DR7EA)
