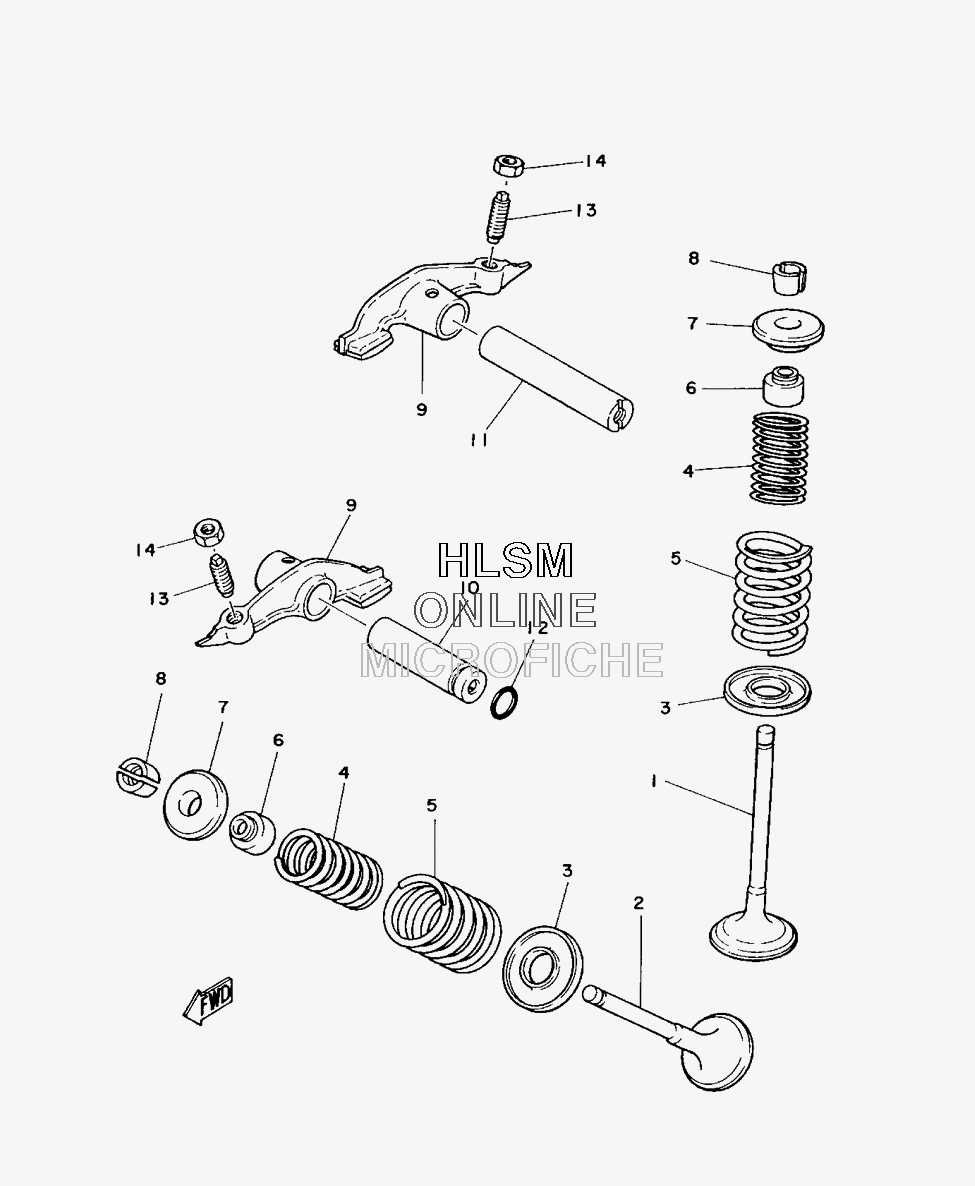

VALVE ASSY для Yamaha BIG BEAR 250 - 2009 года выпуска
-
№АртикулНазвание
-
15XG-E2111-00-00 VALVE, INTAKEVALVE, INTAKE
-
25XG-E2121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
34G0-12116-01-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
44G0-12113-01-00 SPRING, VALVE INNER (YELLOW)SPRING, VALVE INNER (YELLOW)
-
54G0-12114-01-00 SPRING, VALVE OUTER (YELLOW)SPRING, VALVE OUTER (YELLOW)
-
65H0-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
74G0-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
84G0-12118-00-00 COTTER, VALVECOTTER, VALVE
-
95XG-E2151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
103UR-E2156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
113UR-E2146-00-00 SHAFT, ROCKERSHAFT, ROCKER
-
1293210-09165-00 O-RINGO-RING
-
132NX-12159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1490170-06128-00 NUTNUT
