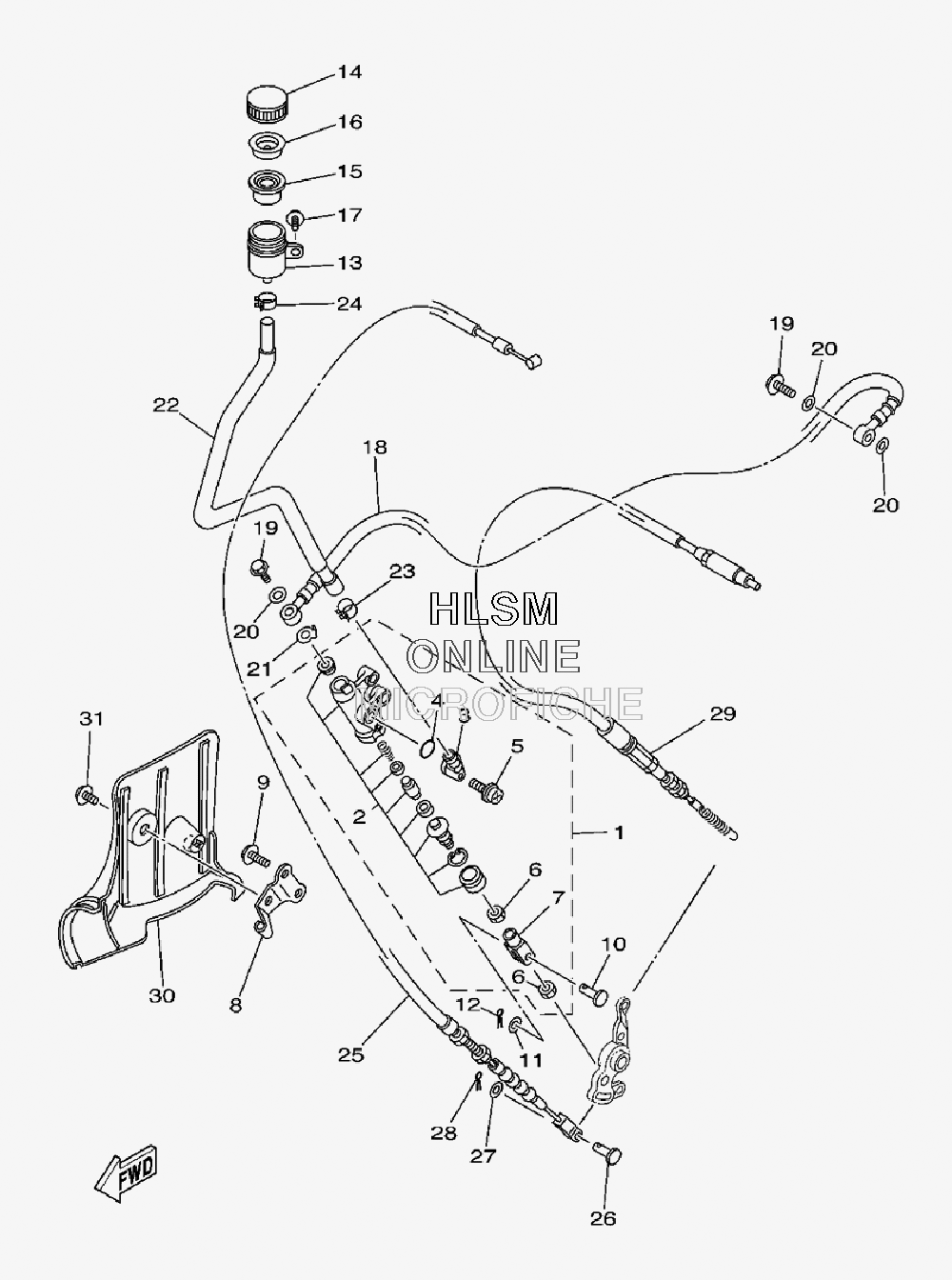

BRAKE - REAR MASTER CYLINDER для Yamaha WOLVERINE 450 4X4 AUTO - 2009 года выпуска
-
№АртикулНазвание
-
15KM-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
25KM-W0042-50-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
331A-2582A-50-00 JOINTJOINT
-
493210-15620-00 O-RINGO-RING
-
53GM-2589H-00-00 SCREW W/WASHERSCREW W/WASHER
-
64SS-27218-00-00 NUTNUT
-
72YK-27222-00-00 JOINTJOINT
-
85ND-F637G-00-00 HOLDER, WIREHOLDER, WIRE
-
995812-08025-00 BOLT, FLANGEBOLT, FLANGE
-
1090240-08013-00 PIN, CLEVISPIN, CLEVIS
-
1190201-08066-00 WASHER, PLATEWASHER, PLATE
-
1291402-16012-00 PIN, COTTERPIN, COTTER
-
132VN-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
144PX-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
152VN-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
162VN-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1790105-06048-00 BOLT, FLANGEBOLT, FLANGE
-
185ND-F5874-01-00 HOSE, BRAKEHOSE, BRAKE
-
1990401-10015-00 BOLT, UNIONBOLT, UNION
-
2090201-10118-00 WASHER, PLATEWASHER, PLATE
-
215GH-25844-00-00 WASHER, LOCKWASHER, LOCK
-
223C2-F5895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2390467-140A5-00 CLIPCLIP
-
2490467-11044-00 CLIP, SCISSORCLIP, SCISSOR
-
253C2-26341-10-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
2690240-06076-00 PIN, CLEVISPIN, CLEVIS
-
2790201-06042-00 WASHER, PLATEWASHER, PLATE
-
2891402-20012-00 PIN, COTTERPIN, COTTER
-
295GH-2637F-10-00 CABLE, CONTROL 2CABLE, CONTROL 2
-
305ND-F7491-00-00 PROTECTORPROTECTOR
-
3195822-06012-00 BOLT, FLANGEBOLT, FLANGE
