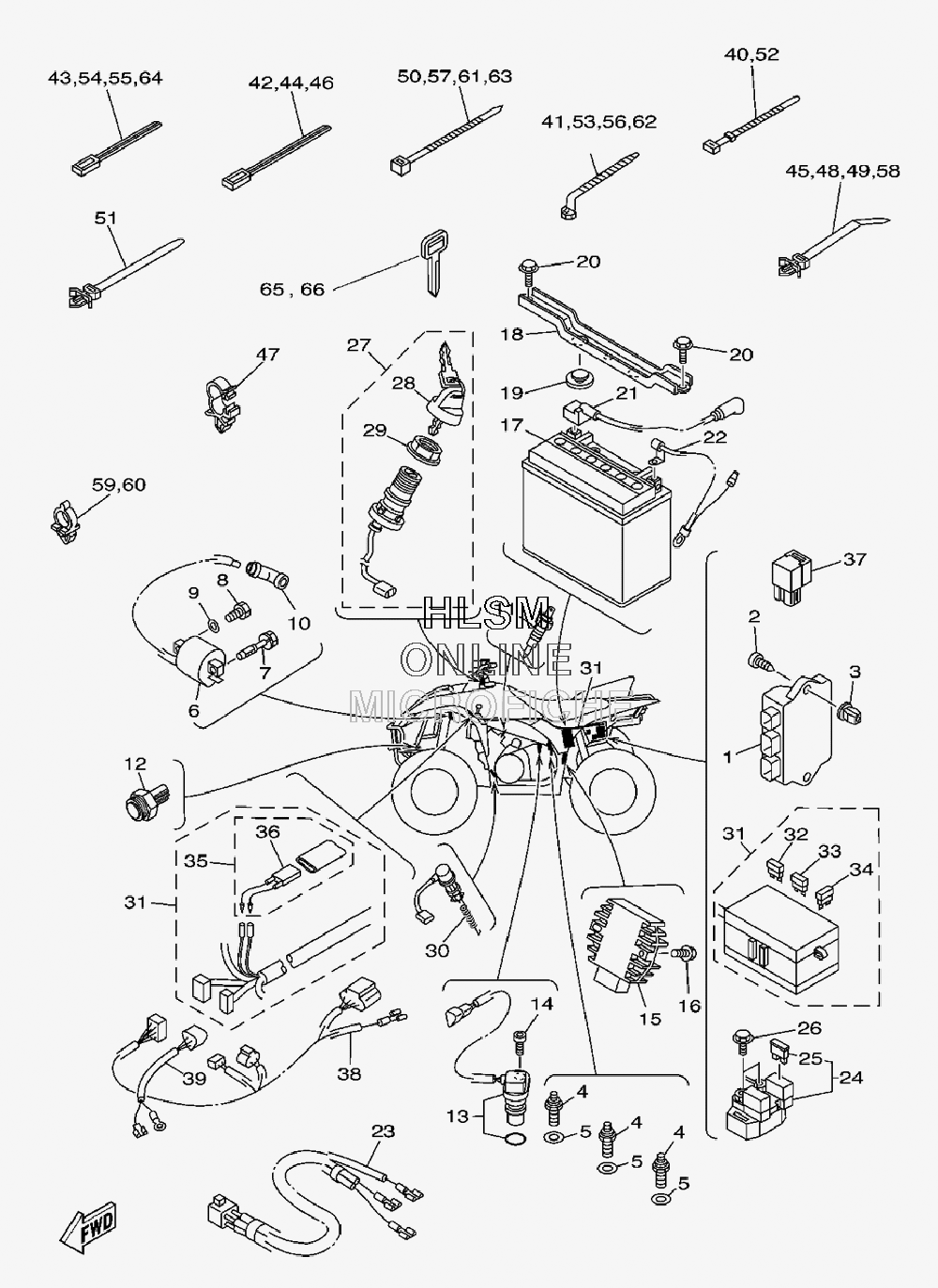

ELECTRICAL для Yamaha WOLVERINE 450 4X4 AUTO - 2009 года выпуска
-
№АртикулНазвание
-
13C2-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
297702-60420-00 SCREW, TAPPINGSCREW, TAPPING
-
390338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
43GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
590430-10148-00 GASKETGASKET
-
63KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
790109-06865-00 BOLTBOLT
-
897002-06020-00 BOLTBOLT
-
992902-06600-00 WASHER, PLATEWASHER, PLATE
-
101UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
115KM-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
125ND-82560-10-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
133C2-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
1490110-06001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
155GT-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1695802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
17BTY-YTX20-LB-S0 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
185ND-H2128-01-00 BRACKET, BATTERYBRACKET, BATTERY
-
19371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
2095802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
213C2-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
225ND-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
231P1-82541-00-00 WIRE, LEADWIRE, LEAD
-
244SV-81940-12-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
251AE-82151-00-00 FUSE (30 AMP, BLADE)FUSE (30 AMP, BLADE)
-
2695022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
275ND-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
283HN-82579-00-00 CAP, KEYCAP, KEY
-
293HN-82569-00-00 NUT, MAIN SWITCHNUT, MAIN SWITCH
-
304KB-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
313C2-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
325JJ-82151-10-00 FUSE (15A-BL)FUSE (15A-BL)
-
335JJ-82151-30-00 FUSE (10A-BL)FUSE (10A-BL)
-
345JJ-82151-50-00 FUSE (3A-BL)FUSE (3A-BL)
-
355ND-82180-00-00 CIRCUIT BREAKER ASSYCIRCUIT BREAKER ASSY
-
365ND-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
375DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
383C2-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
393C2-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
4090464-51800-00 CLAMPCLAMP
-
4190464-12830-00 CLAMPCLAMP
-
4290464-40825-00 CLAMPCLAMP
-
4390464-31827-00 CLAMPCLAMP
-
4490464-40825-00 CLAMPCLAMP
-
4590464-25800-00 CLAMPCLAMP
-
4690464-40825-00 CLAMPCLAMP
-
4790464-16006-00 CLAMPCLAMP
-
4890464-25800-00 CLAMPCLAMP
-
4990464-25800-00 CLAMPCLAMP
-
5090464-48800-00 CLAMPCLAMP
-
5190464-38800-00 CLAMPCLAMP
-
5290464-51800-00 CLAMPCLAMP
-
5390464-12830-00 CLAMPCLAMP
-
5490464-31827-00 CLAMPCLAMP
-
5590464-31827-00 CLAMPCLAMP
-
5690464-12830-00 CLAMPCLAMP
-
5790464-48800-00 CLAMPCLAMP
-
5890464-25800-00 CLAMPCLAMP
-
5990464-10833-00 CLAMPCLAMP
-
6090464-10833-00 CLAMPCLAMP
-
6190464-48800-00 CLAMPCLAMP
-
6290464-12830-00 CLAMPCLAMP
-
6390464-48800-00 CLAMPCLAMP
-
6490464-31827-00 CLAMPCLAMP
-
6590890-56001-00 KEY BLANK (A-TYPE)KEY BLANK (A-TYPE)
-
6690890-56002-00 KEY BLANK (B-TYPE)KEY BLANK (B-TYPE)
