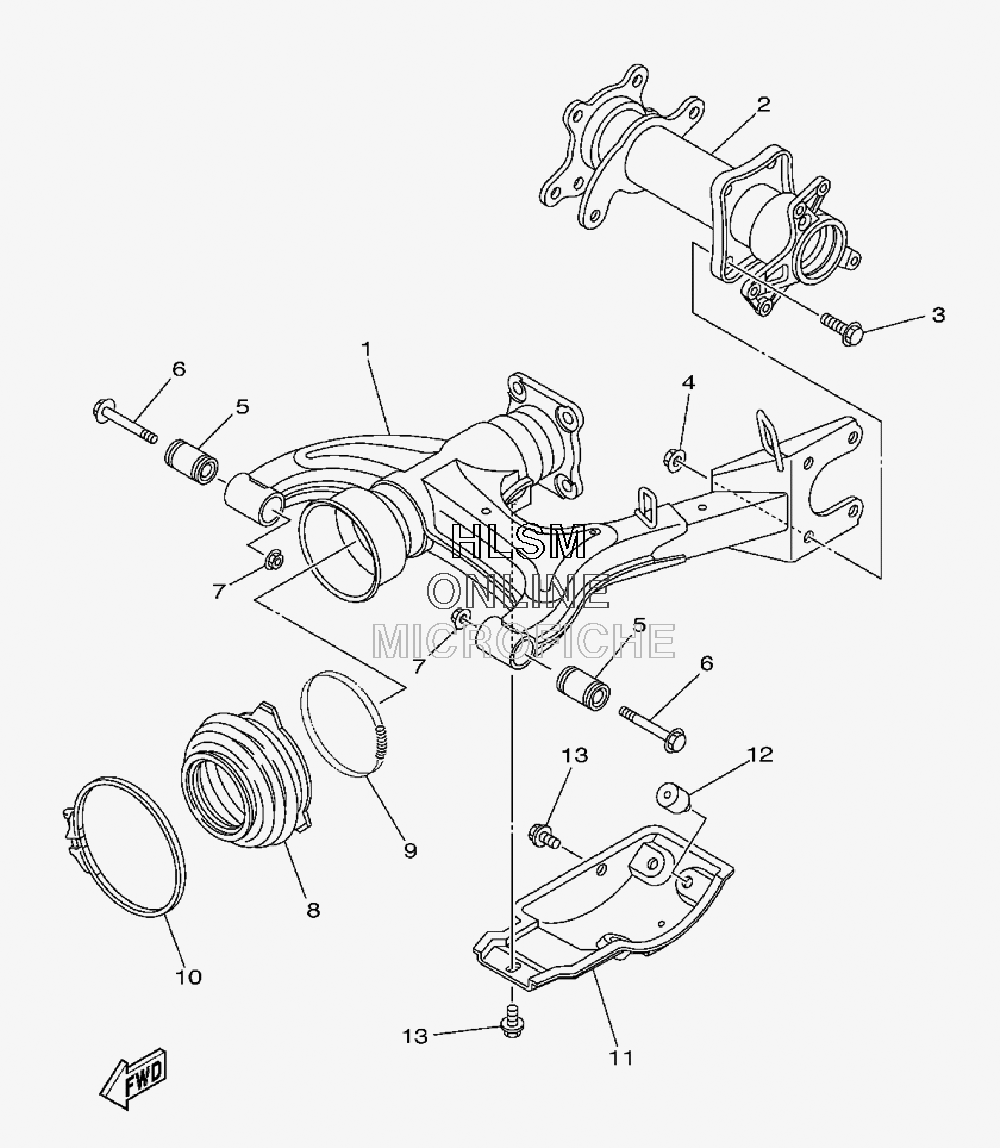

SUSPENSION - REAR ARM для Yamaha WOLVERINE 450 4X4 AUTO - 2009 года выпуска
-
№АртикулНазвание
-
13C2-F2110-00-00 REAR ARM COMP.REAR ARM COMP.
-
25ND-G6540-13-00 REAR AXLE HOUSING COMP.REAR AXLE HOUSING COMP.
-
395812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
495702-10500-00 NUT, FLANGENUT, FLANGE
-
55ND-F2123-00-00 BUSH 1BUSH 1
-
690105-12057-00 BOLT, FLANGEBOLT, FLANGE
-
795602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
85ND-F2189-00-00 BOOT, RUBBERBOOT, RUBBER
-
990506-07135-00 SPRING, TENSIONSPRING, TENSION
-
1090460-85277-00 CLAMP, HOSECLAMP, HOSE
-
114XE-F219X-01-00 COVERCOVER
-
12109-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
1395802-08012-00 BOLT, FLANGEBOLT, FLANGE
