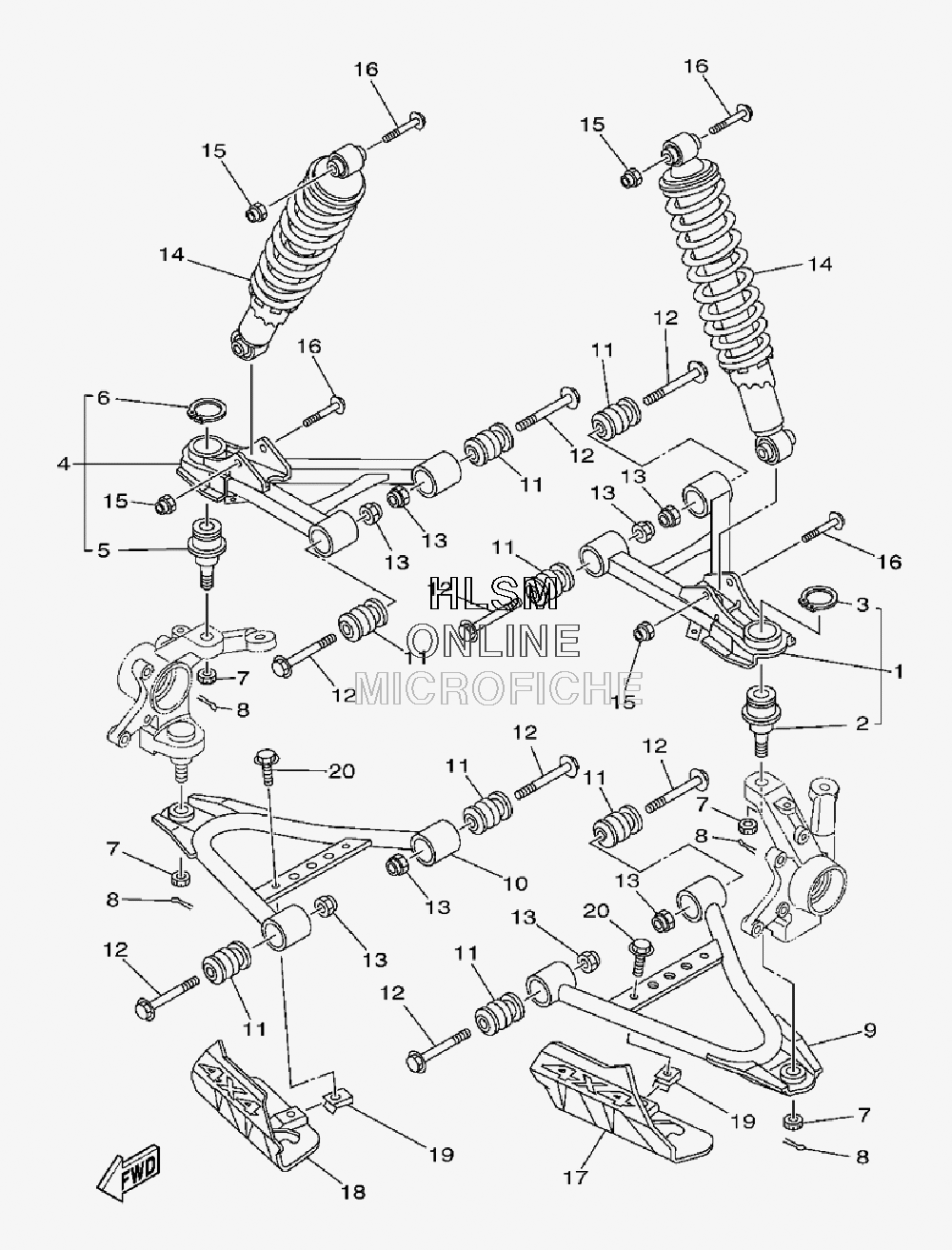

SUSPENSION - FRONT WHEEL для Yamaha WOLVERINE 450 4X4 AUTO - 2009 года выпуска
-
№АртикулНазвание
-
15ND-F3540-12-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
25FU-F3549-00-00 BALL JOINT 1BALL JOINT 1
-
393410-32826-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
45ND-F3550-12-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
55FU-F3549-00-00 BALL JOINT 1BALL JOINT 1
-
693410-32826-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
790171-12001-00 NUT, CASTLENUT, CASTLE
-
891402-25020-00 PIN, COTTERPIN, COTTER
-
95ND-F357A-01-00 ARM, FRONT LOWER LEFT HAND.ARM, FRONT LOWER LEFT HAND.
-
105ND-F358A-01-00 ARM, FRONT LOWER RIGHT HAND.ARM, FRONT LOWER RIGHT HAND.
-
112HR-23526-00-00 BUSHBUSH
-
1290105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
1390185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
143C2-F3350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1590185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690105-10841-00 BOLT, FLANGEBOLT, FLANGE
-
1717S-F3123-00-00 COVER, UNDER 1COVER, UNDER 1
-
1817S-F3133-00-00 COVER, LOWER 2COVER, LOWER 2
-
1990183-06053-00 NUT, SPRINGNUT, SPRING
-
2095802-06012-00 BOLT, FLANGEBOLT, FLANGE
