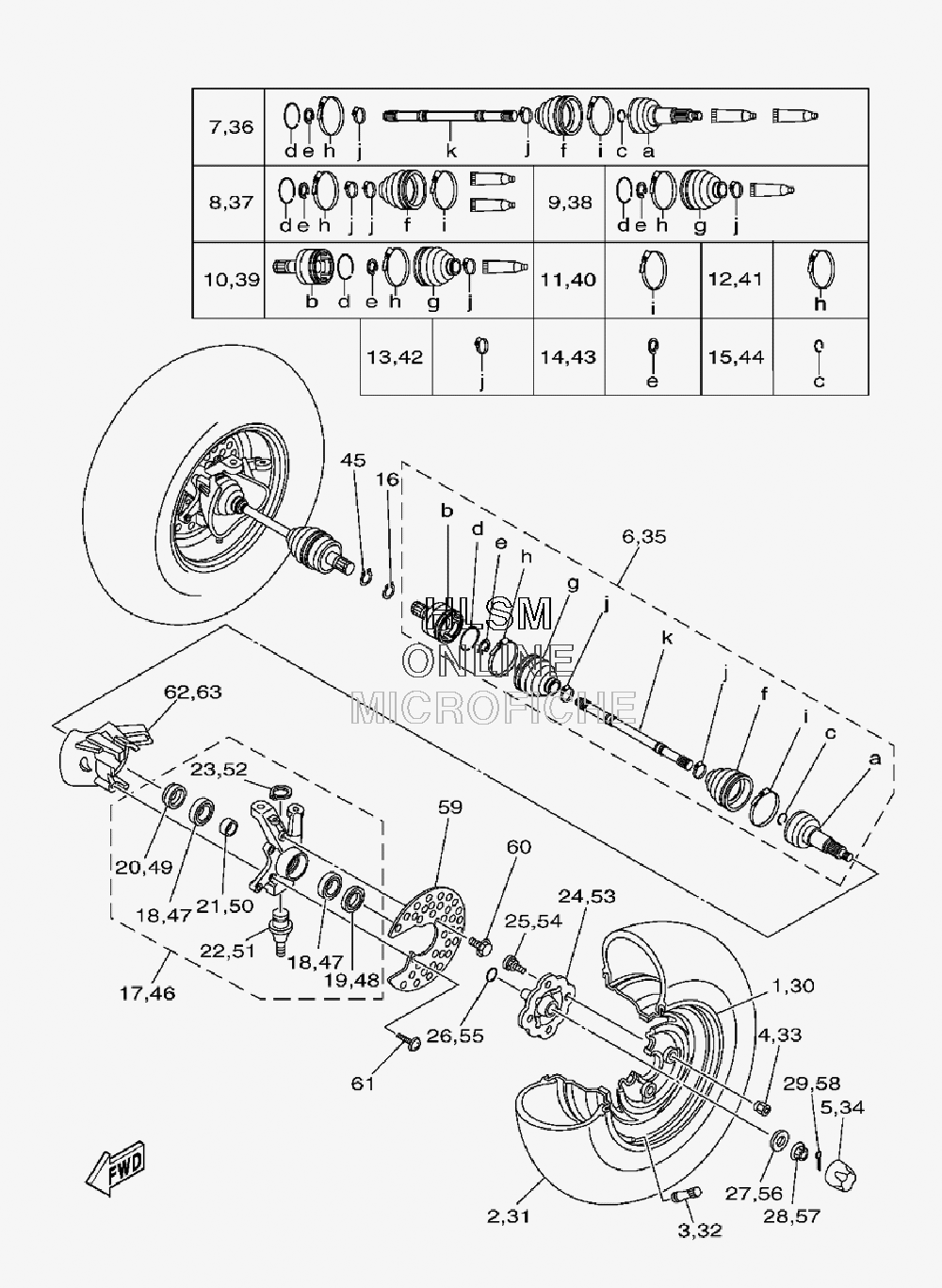

WHEEL - FRONT W/ AXLE ASSY для Yamaha WOLVERINE 450 4X4 AUTO - 2009 года выпуска
-
№АртикулНазвание
-
13C2-F5180-10-00 FRONT RIM (12 X 6 BL)FRONT RIM (12 X 6 BL)
-
294108-12814-00 TIRE (AT23X8R12 M937) CHENG SHINTIRE (AT23X8R12 M937) CHENG SHIN
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
490179-10020-00 NUTNUT
-
55GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
65TE-F518F-00-00 DRIVE SHAFT ASSYDRIVE SHAFT ASSY
-
75TE-F510F-00-00 BALL JOINT SETBALL JOINT SET
-
85GH-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
93HN-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINTBOOT SET (DOUBLE OFFSET JOINT
-
105GH-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
113HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
123HN-2511H-00-00 BOOT BAND (DOUBLE OFFSETJOINTBOOT BAND (DOUBLE OFFSETJOINT
-
133HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
142HR-2512J-00-00 SNAP RINGSNAP RING
-
154KB-2512H-00-00 CIRCLIPCIRCLIP
-
1693450-22119-00 CIRCLIP, INNERCIRCLIP, INNER
-
175ND-F3501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1893306-006Y2-00 BEARINGBEARING
-
1993106-38046-00 OIL SEALOIL SEAL
-
2093106-38047-00 OIL SEALOIL SEAL
-
2190560-30325-00 SPACERSPACER
-
225FU-F3549-00-00 BALL JOINT 1BALL JOINT 1
-
2399009-32400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
245ND-F5111-21-00 HUB, FRONTHUB, FRONT
-
2590114-10014-00 BOLT, SERRATIONBOLT, SERRATION
-
2693210-27666-00 O-RINGO-RING
-
2790201-16804-00 WASHER, PLATEWASHER, PLATE
-
2890171-16002-00 NUT, CASTLENUT, CASTLE
-
2991402-30030-00 PIN, COTTERPIN, COTTER
-
303C2-F5180-10-00 FRONT RIM (12 X 6 BL)FRONT RIM (12 X 6 BL)
-
3194108-12814-00 TIRE (AT23X8R12 M937) CHENG SHINTIRE (AT23X8R12 M937) CHENG SHIN
-
3293900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
3390179-10020-00 NUTNUT
-
345GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
355TE-F518F-00-00 DRIVE SHAFT ASSYDRIVE SHAFT ASSY
-
365TE-F510F-00-00 BALL JOINT SETBALL JOINT SET
-
375GH-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
383HN-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINTBOOT SET (DOUBLE OFFSET JOINT
-
395GH-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
403HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
413HN-2511H-00-00 BOOT BAND (DOUBLE OFFSETJOINTBOOT BAND (DOUBLE OFFSETJOINT
-
423HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
432HR-2512J-00-00 SNAP RINGSNAP RING
-
444KB-2512H-00-00 CIRCLIPCIRCLIP
-
4593450-22119-00 CIRCLIP, INNERCIRCLIP, INNER
-
465ND-F3502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
4793306-006Y2-00 BEARINGBEARING
-
4893106-38046-00 OIL SEALOIL SEAL
-
4993106-38047-00 OIL SEALOIL SEAL
-
5090560-30325-00 SPACERSPACER
-
515FU-F3549-00-00 BALL JOINT 1BALL JOINT 1
-
5299009-32400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
535ND-F5111-21-00 HUB, FRONTHUB, FRONT
-
5490114-10014-00 BOLT, SERRATIONBOLT, SERRATION
-
5593210-27666-00 O-RINGO-RING
-
5690201-16804-00 WASHER, PLATEWASHER, PLATE
-
5790171-16002-00 NUT, CASTLENUT, CASTLE
-
5891402-30030-00 PIN, COTTERPIN, COTTER
-
595ND-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
6095822-06012-00 BOLT, FLANGEBOLT, FLANGE
