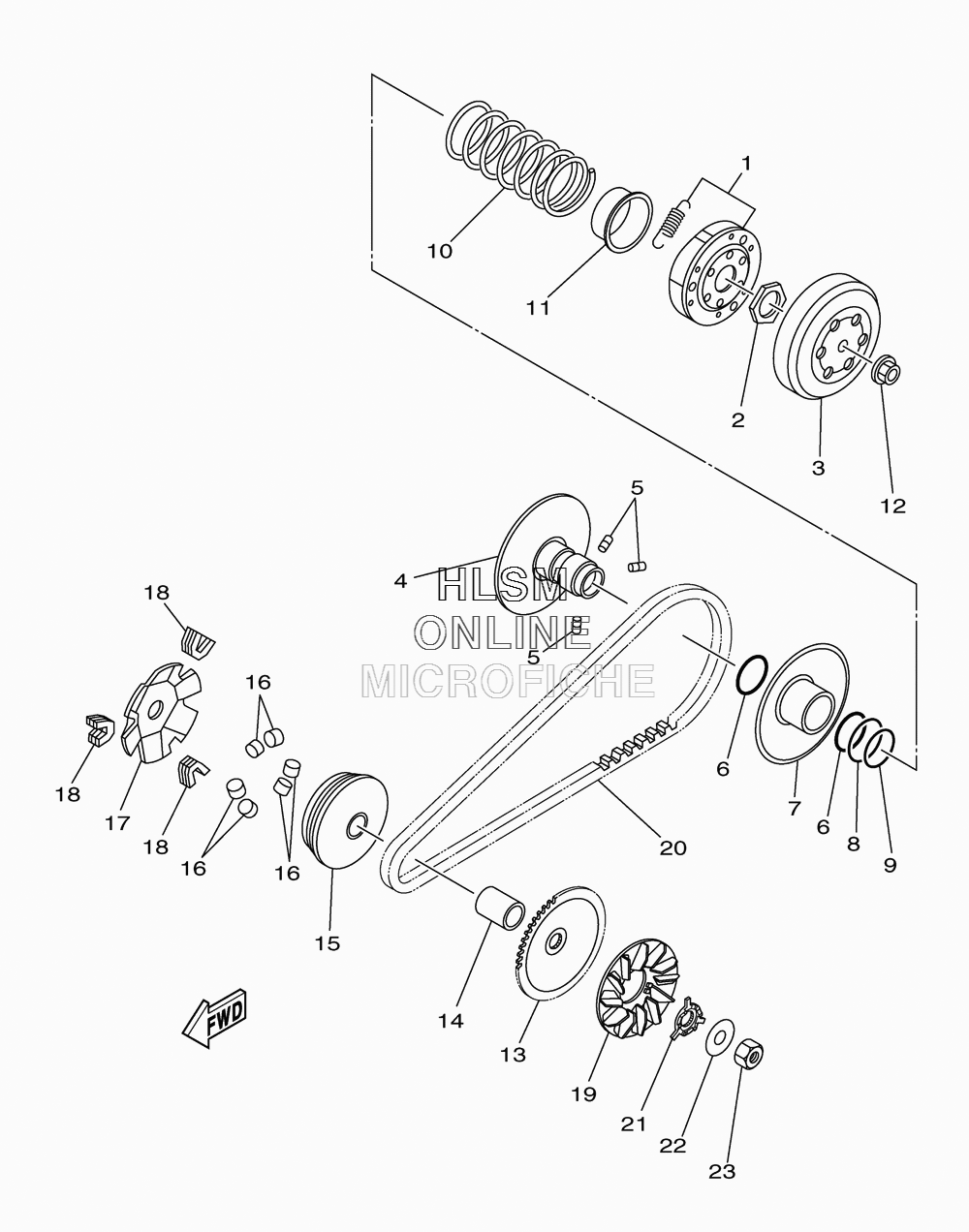

CLUTCH для Yamaha RAPTOR 90 - 2013 года выпуска
-
№АртикулНазвание
-
143D-E6620-00-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
243D-E4594-00-00 NUTNUT
-
343D-E6611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
443D-E7660-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
543D-E7664-00-00 PIN, GUIDEPIN, GUIDE
-
643D-E76F3-00-00 OIL SEALOIL SEAL
-
743D-E7670-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
843D-E76F4-00-00 O-RINGO-RING
-
943D-E76F5-00-00 O-RINGO-RING
-
1043D-E7683-00-00 SPRING, SECONDARYSPRING, SECONDARY
-
1143D-E7684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
1243D-E2672-00-00 NUT 2NUT 2
-
1343D-E76F6-00-00 SHEAVE, PRIMARY FIXED 2SHEAVE, PRIMARY FIXED 2
-
1443D-E7645-00-00 COLLARCOLLAR
-
1543D-E7620-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
1643D-E7632-00-00 WEIGHTWEIGHT
-
1743D-E7623-00-00 CAMCAM
-
1843D-E7653-00-00 SLIDERSLIDER
-
1943D-E7611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
2043D-E7641-00-00 V-BELTV-BELT
-
2143D-E5657-00-00 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
2243D-E2673-00-00 WASHERWASHER
-
2343D-E3588-00-00 NUTNUT
