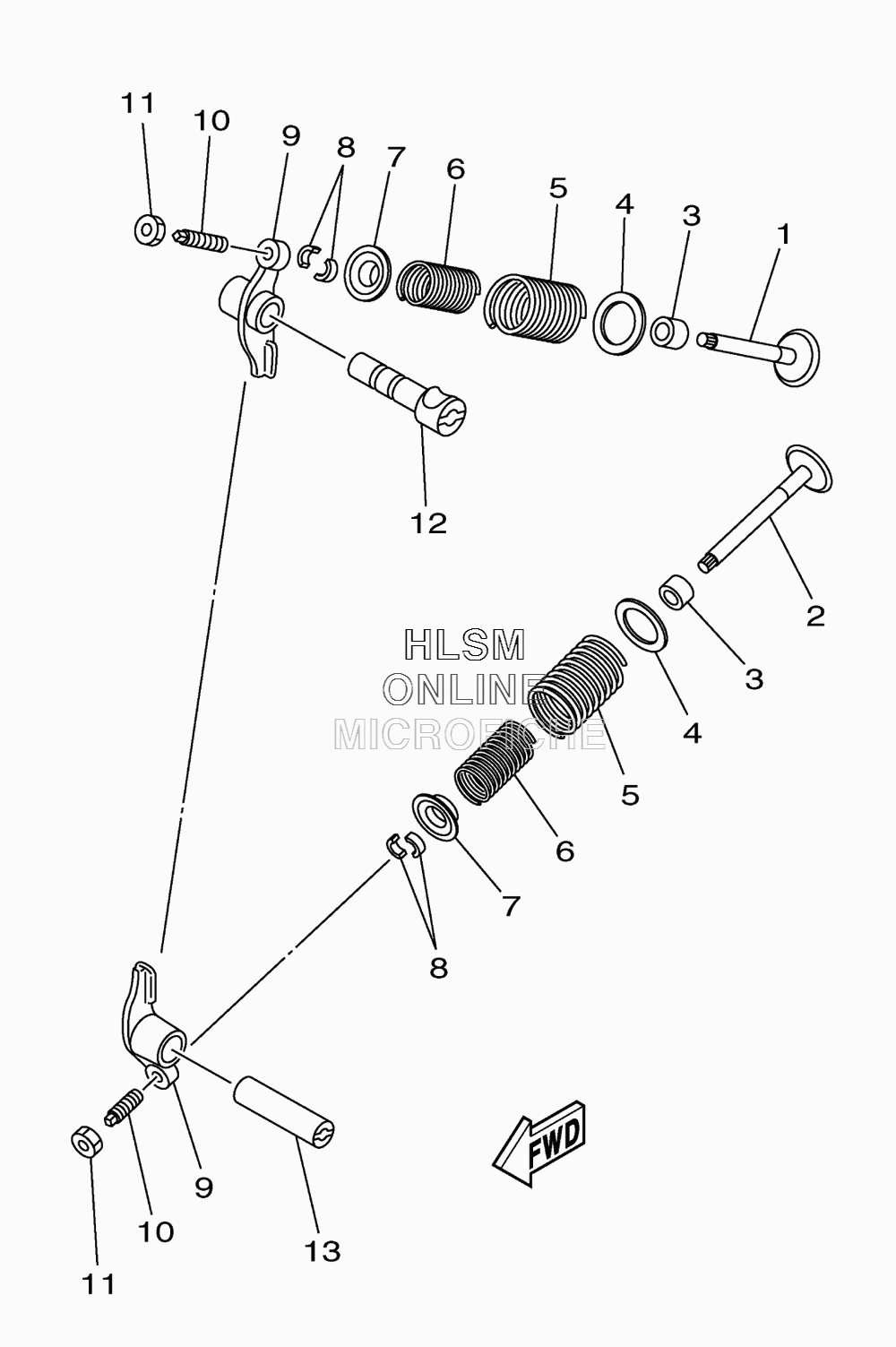

VALVE ASSY для Yamaha RAPTOR 90 - 2013 года выпуска
-
№АртикулНазвание
-
143D-E2111-00-00 VALVE, INTAKEVALVE, INTAKE
-
243D-E2121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
343D-E2119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
443D-E3578-00-00 WASHERWASHER
-
543D-E2114-00-00 SPRING, VALVE OUTERSPRING, VALVE OUTER
-
643D-E2113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
743D-E2117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
843D-E2118-00-00 COTTER, VALVECOTTER, VALVE
-
943D-E2151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
1043D-E2159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1195307-05600-00 NUTNUT
-
1243D-E2146-00-00 SHAFT, ROCKERSHAFT, ROCKER
-
1343D-E2156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
