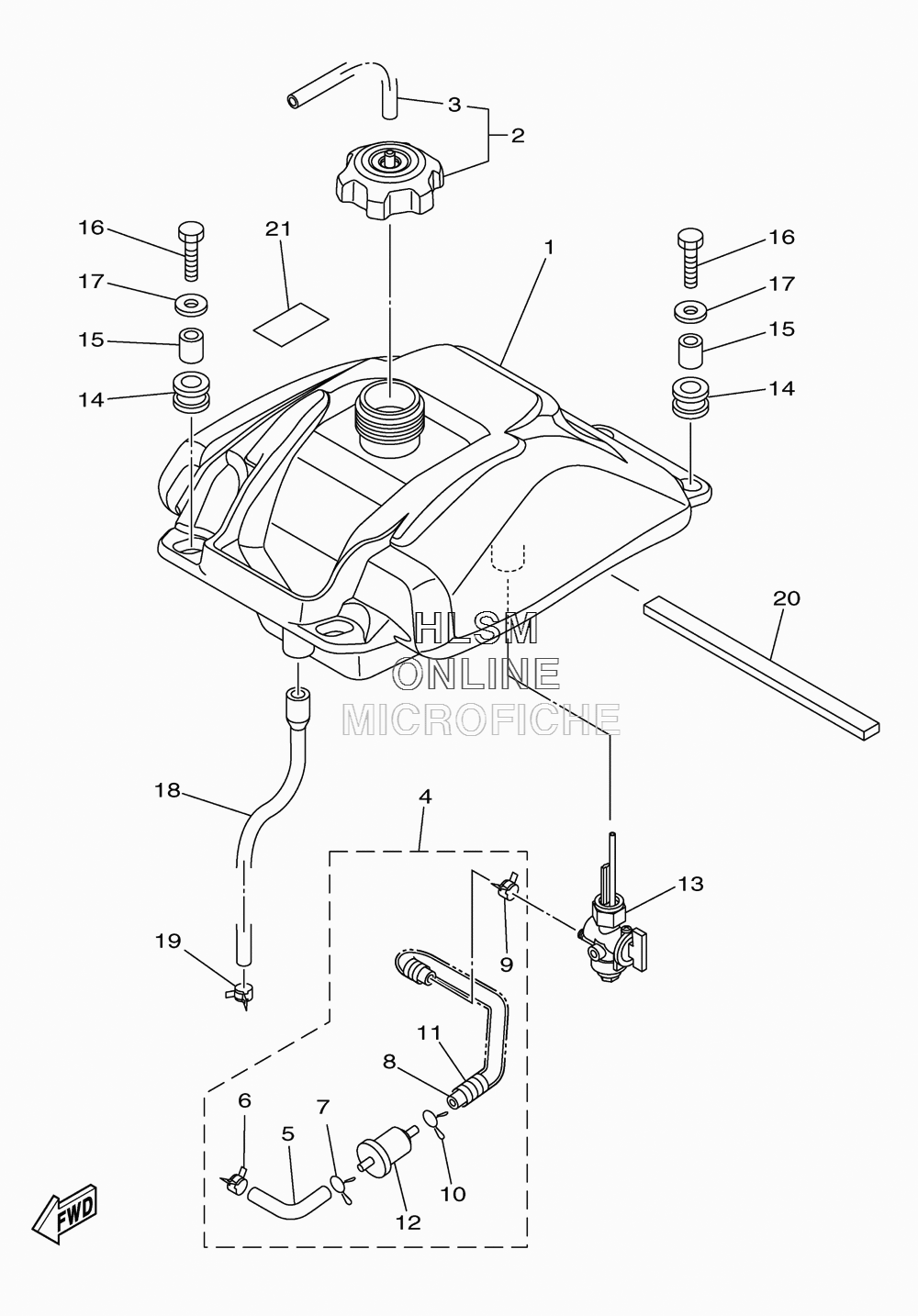

FUEL TANK для Yamaha RAPTOR 90 - 2013 года выпуска
-
№АртикулНазвание
-
143D-F4110-10-00 FUEL TANK COMP.FUEL TANK COMP.
-
243D-F4670-01-00 TANK CAP SETTANK CAP SET
-
343D-F41B4-01-00 ...TUBE 1...TUBE 1
-
443D-F4560-10-00 FILTER ASSYFILTER ASSY
-
543D-F41B5-10-00 ...TUBE 2...TUBE 2
-
643D-F4366-00-00 ...CLAMP, FUEL PIPE 1...CLAMP, FUEL PIPE 1
-
743D-F411M-00-00 ...CLIP...CLIP
-
843D-F41B6-10-00 ...TUBE 3...TUBE 3
-
943D-F4366-00-00 ...CLAMP, FUEL PIPE 1...CLAMP, FUEL PIPE 1
-
1043D-F411M-00-00 ...CLIP...CLIP
-
1143D-F432A-00-00 ...PROTECTOR, PIPE 2...PROTECTOR, PIPE 2
-
1243D-F4561-00-00 ...BODY,FILTER...BODY,FILTER
-
1343D-F4500-10-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
1443D-F4339-00-00 GROMMETGROMMET
-
1543D-F412G-00-00 COLLARCOLLAR
-
1697007-06030-00 BOLTBOLT
-
1792907-06600-00 WASHER, PLATEWASHER, PLATE
-
1843D-F417E-00-00 TUBE, DRAINTUBE, DRAIN
-
1990467-22097-00 CLIPCLIP
-
2043D-F4181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
2143D-F1649-00-00 DAMPERDAMPER
