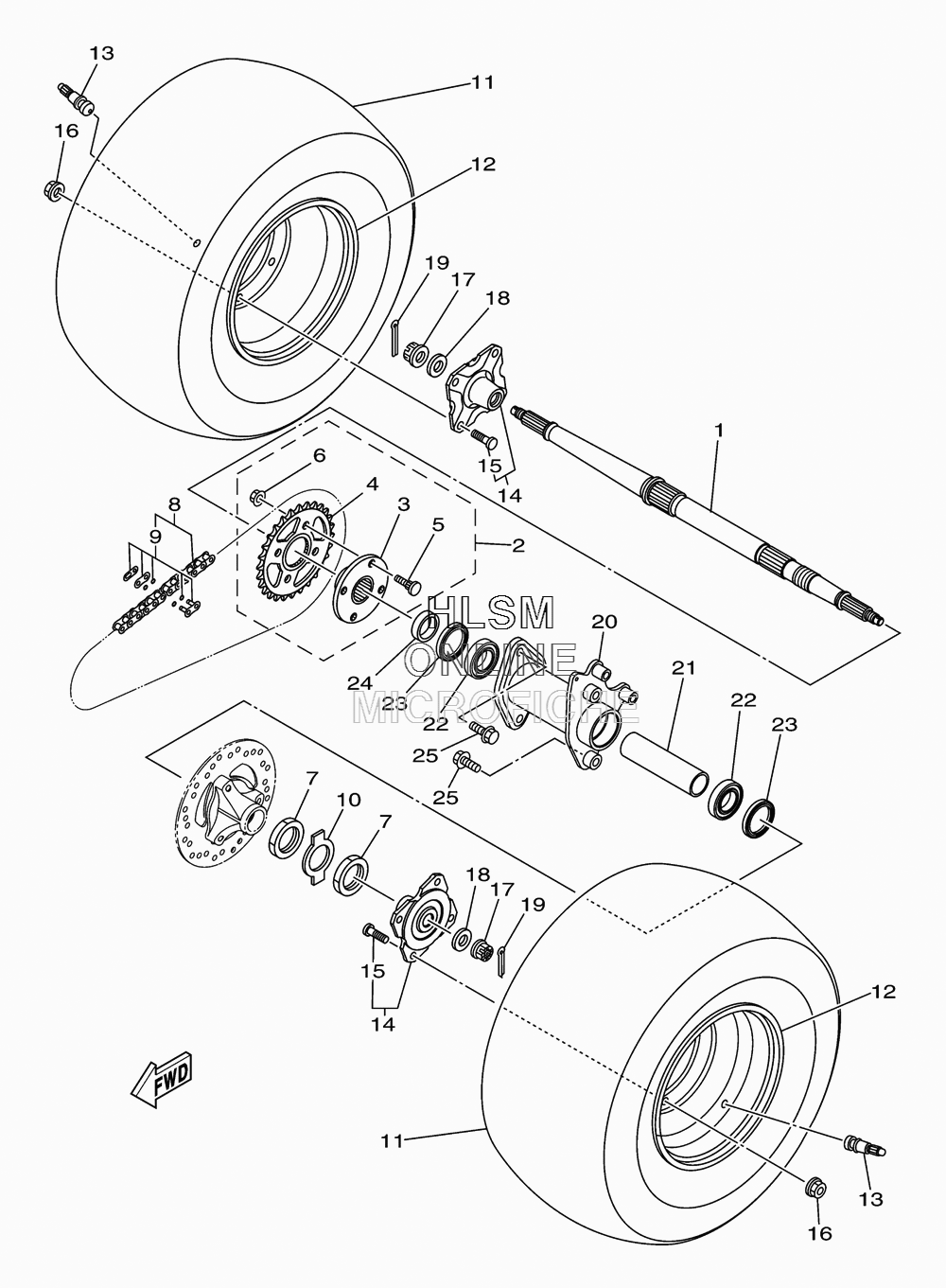

WHEEL - REAR W/ AXLE ASSY для Yamaha RAPTOR 90 - 2013 года выпуска
-
№АртикулНазвание
-
143D-F5381-00-00 AXLE, WHEELAXLE, WHEEL
-
243D-F5420-00-00 SPROCKET, DRIVEN (20T)SPROCKET, DRIVEN (20T)
-
343D-F5386-00-00 ...COLLAR, SPROCKET AXLE...COLLAR, SPROCKET AXLE
-
443D-F5438-00-00 ...SPROCKET, DRIVEN (38T)...SPROCKET, DRIVEN (38T)
-
543D-F3459-00-00 ...BOLT...BOLT
-
643D-F1635-00-00 ...NUT, REAR FENDER...NUT, REAR FENDER
-
743D-F1636-00-00 NUTNUT
-
843D-F53C0-00-00 CHAINCHAIN
-
943D-F53N3-00-00 ...MASTER LINK...MASTER LINK
-
1043D-F5412-00-00 WASHERWASHER
-
1143D-F53P3-00-00 TIRE (AT18 X 9-8 M940) MAXXISTIRE (AT18 X 9-8 M940) MAXXIS
-
1243D-F5390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
1343D-F5170-00-00 AIR VALVE ASSYAIR VALVE ASSY
-
1443D-F5383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1543D-F1738-00-00 ...BOLT...BOLT
-
1643D-F1839-00-00 NUTNUT
-
1743D-F5382-00-00 NUT, AXLENUT, AXLE
-
1843D-F2243-00-00 WASHER 1WASHER 1
-
1991401-25033-00 PIN, COTTERPIN, COTTER
-
2043D-F5311-01-00 HUB, REARHUB, REAR
-
2143D-F5317-00-00 SPACER, BEARINGSPACER, BEARING
-
2243D-F53N4-00-00 BEARINGBEARING
-
2343D-F537Y-00-00 SEAL, DUSTSEAL, DUST
-
2443D-F5683-00-00 SPACERSPACER
-
2543D-F3492-00-00 BOLTBOLT
