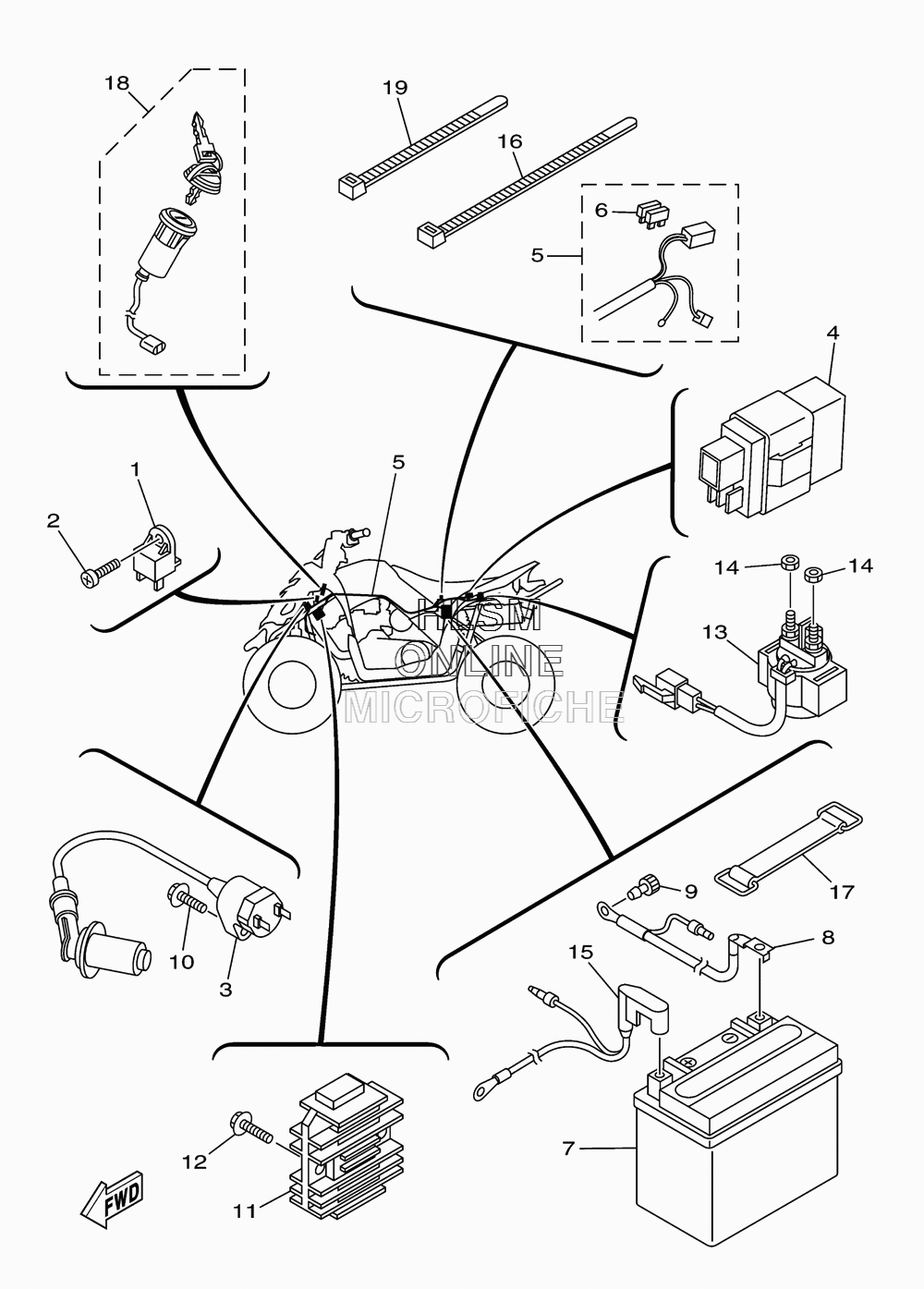

ELECTRICAL для Yamaha RAPTOR 90 - 2013 года выпуска
-
№АртикулНазвание
-
143D-H2560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
243D-F4473-00-00 SCREWSCREW
-
343D-H2310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
443D-H5540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
543D-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
643D-H2151-00-00 ...FUSE...FUSE
-
743D-H2110-00-00 BATTERY ASSY (GTX5L-BS)BATTERY ASSY (GTX5L-BS)
-
843D-H2116-01-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
943D-F2969-00-00 SCREW, 1SCREW, 1
-
1043D-F1531-00-00 BOLTBOLT
-
1143D-H1960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1295822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1343D-H1940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1495307-06600-00 NUTNUT
-
1543D-H2115-01-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
1643D-F2591-00-00 CLAMP, HOSECLAMP, HOSE
-
1743D-F4398-00-00 BAND 1BAND 1
-
1843D-H2510-01-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
1943D-F3466-00-00 CLAMPCLAMP
