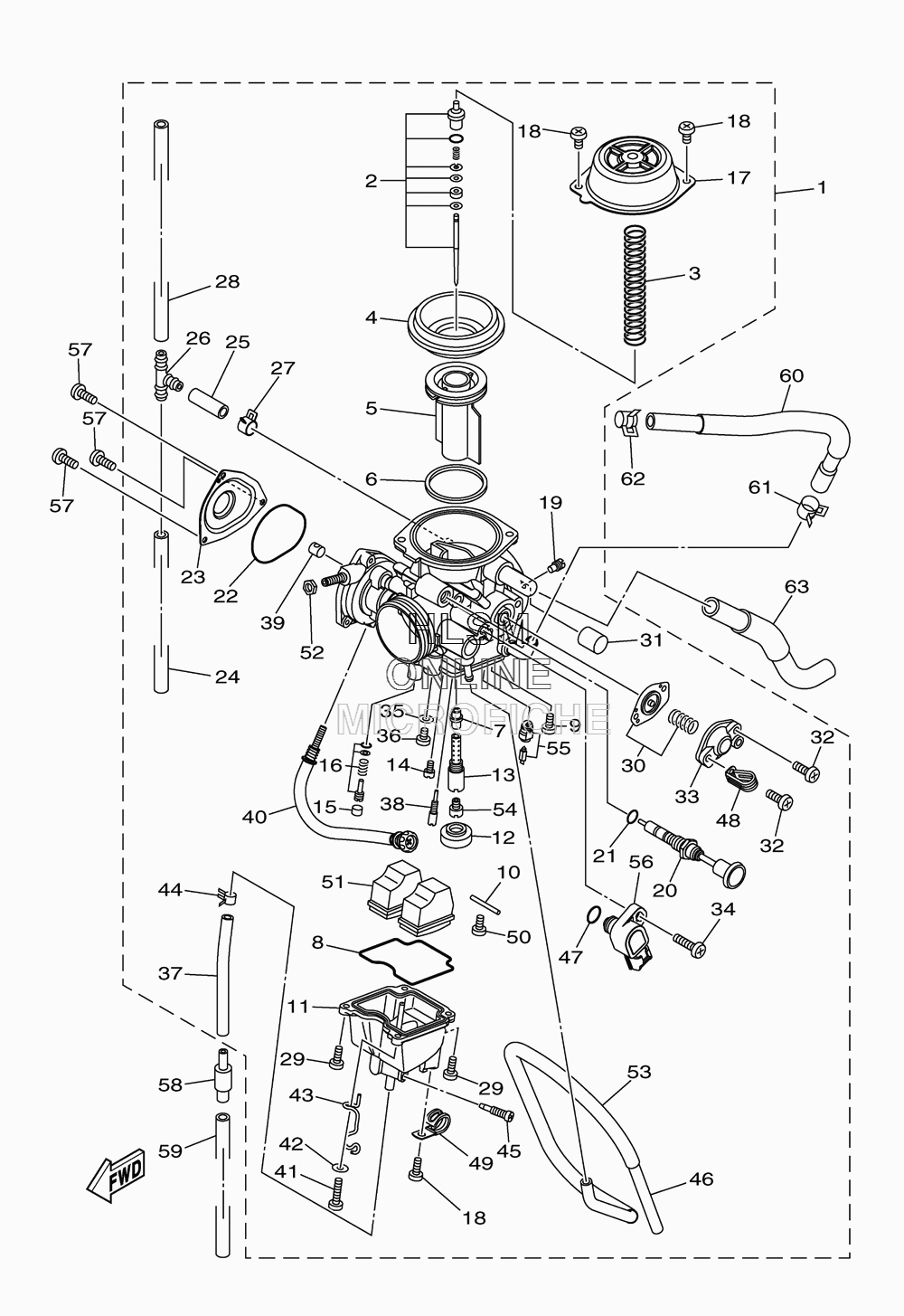

CARBURETOR для Yamaha YFZ 450 - 2013 года выпуска
-
№АртикулНазвание
-
11PD-14901-00-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
21PD-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
35LV-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
41PD-24411-00-00 ...DIAPHRAGM...DIAPHRAGM
-
55KM-14912-00-00 ...VALVE, THROTTLE...VALVE, THROTTLE
-
65KM-14918-00-00 ...RING...RING
-
75DM-14141-30-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
85DM-14561-00-00 ...O-RING...O-RING
-
91FN-14565-00-00 ...SCREW...SCREW
-
10127-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
111PD-14981-00-00 ...BODY, FLOAT CHAMBER...BODY, FLOAT CHAMBER
-
125V7-14153-00-00 ...PLATE,BAFFLE...PLATE,BAFFLE
-
131PD-14261-00-00 ...HOLDER...HOLDER
-
143G2-14231-11-00 ...JET, POWER (# 55)...JET, POWER (# 55)
-
153F9-14118-00-00 ....CAP....CAP
-
161PD-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
175KM-14958-10-00 ...COVER, DIAPHRAGM...COVER, DIAPHRAGM
-
1898507-05008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
191HX-14231-21-00 ...JET, MAIN (#105)...JET, MAIN (#105)
-
201PD-14993-00-00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
211AE-14147-00-00 ....O-RING....O-RING
-
224WV-14147-10-00 ...O-RING...O-RING
-
231PD-14293-00-00 ...COVER 1...COVER 1
-
241PD-14197-00-00 ...PIPE...PIPE
-
251PD-14197-10-00 ...PIPE...PIPE
-
263H3-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
274BP-14139-01-00 ...CLIP, PIPE...CLIP, PIPE
-
281PD-14197-20-00 ...PIPE...PIPE
-
2998507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
305KM-1490H-00-00 ...DIAPHRAGM SET 5...DIAPHRAGM SET 5
-
315KM-14968-00-00 ...CAP...CAP
-
3297607-04114-00 ...SCREW,WITH WASHER...SCREW,WITH WASHER
-
335AP-14280-00-00 ...COVER, CARBURETOR...COVER, CARBURETOR
-
3421C-14216-00-00 ...SCREW...SCREW
-
35256-14956-01-00 ...WASHER...WASHER
-
363DM-14216-00-00 ...SCREW...SCREW
-
374DG-14987-00-00 ...HOSE...HOSE
-
384KM-14142-47-00 ...JET, PILOT (# 47.5)...JET, PILOT (# 47.5)
-
391UY-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
401PD-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
4198507-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
4292902-04600-00 ...WASHER, PLATE...WASHER, PLATE
-
435KM-14937-00-00 ...CLIP...CLIP
-
4490467-09026-00 ...CLIP...CLIP
-
4512R-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
461PD-14197-30-00 ...PIPE...PIPE
-
475YP-14561-00-00 ...O-RING...O-RING
-
4890461-06087-00 ...CLAMP...CLAMP
-
493JC-14146-00-00 ...PLATE...PLATE
-
5098507-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
515DM-14985-00-00 ...FLOAT...FLOAT
-
52522-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
531PD-14197-40-00 ...PIPE...PIPE
-
54620-1423A-81-00 ...JET, MAIN (#152.5)...JET, MAIN (#152.5)
-
551PD-14107-00-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
561PD-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
5791312-04006-00 BOLTBOLT
-
5824W-14193-00-00 PIPEPIPE
-
5991A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
605TG-24311-20-00 PIPE, FUEL 1PIPE, FUEL 1
-
6190467-120A5-00 CLIPCLIP
-
6290467-100A2-00 CLIPCLIP
-
631PD-14349-00-00 PIPEPIPE
