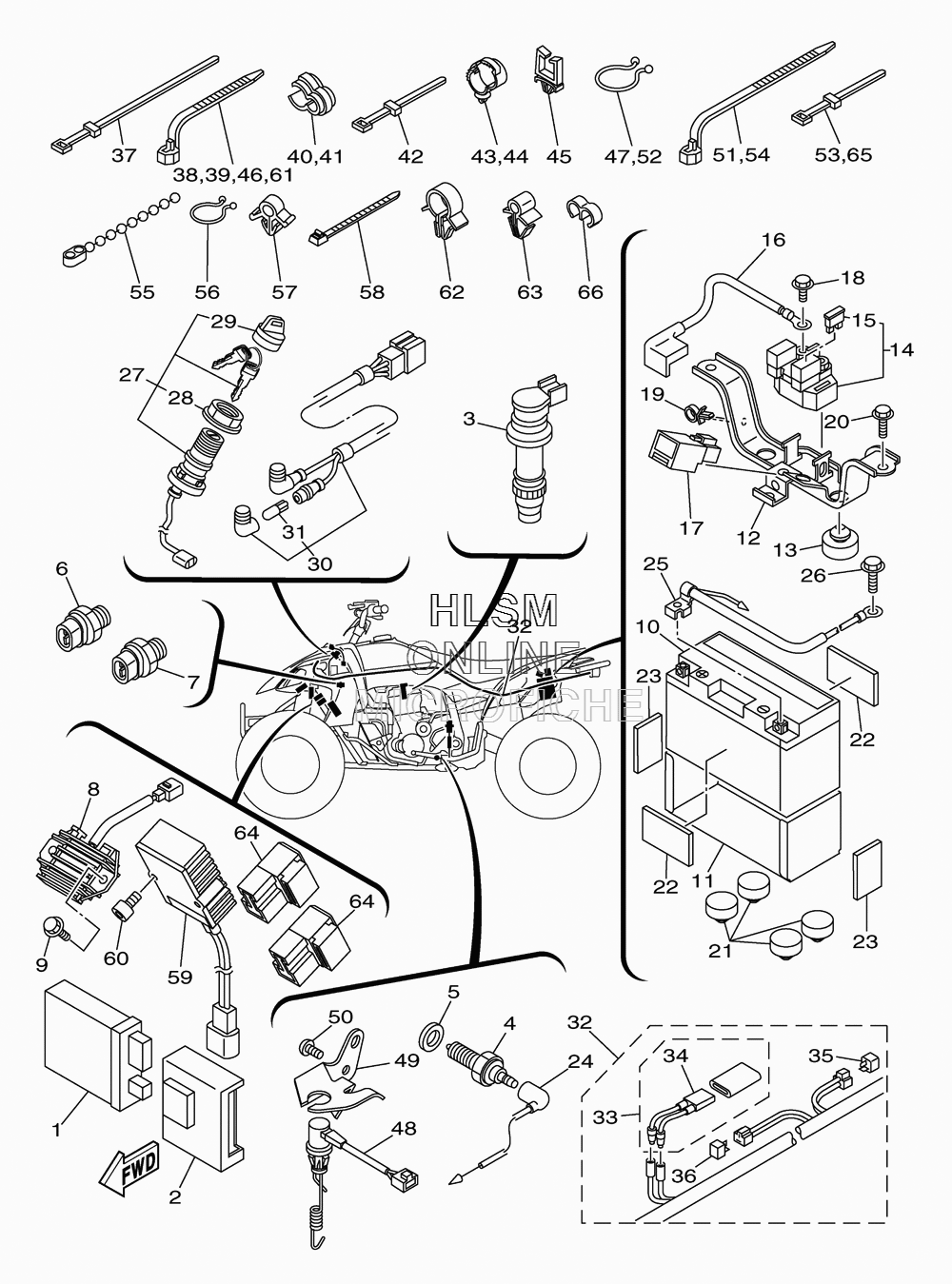

ELECTRICAL для Yamaha YFZ 450 - 2013 года выпуска
-
№АртикулНазвание
-
11PD-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
25TG-85546-00-00 BANDBAND
-
35TA-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
43GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
590430-10148-00 GASKETGASKET
-
65EB-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
75LP-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
81PD-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
995022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
104UC-82100-01-00 BATTERY (GS GT7B-4)BATTERY (GS GT7B-4)
-
115D3-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
125TG-82128-10-00 BRACKET, BATTERYBRACKET, BATTERY
-
135TG-82121-10-00 PAD, BATTERYPAD, BATTERY
-
145JW-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1536Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
165TG-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
171RL-81950-92-00 RELAY ASSYRELAY ASSY
-
1895022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
1990464-15157-00 CLAMPCLAMP
-
2090105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
215TG-82121-10-00 PAD, BATTERYPAD, BATTERY
-
225D3-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
2322F-2139X-00-00 DAMPERDAMPER
-
245TG-82541-00-00 WIRE, LEADWIRE, LEAD
-
255TG-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
2695022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
275TG-82510-01-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
283HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
293HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
305TG-83530-00-00 PILOT LIGHT ASSY (RED, GREEN LENS)PILOT LIGHT ASSY (RED, GREEN LENS)
-
315GH-83516-00-00 ...BULB (12V-1.7W T6.5)...BULB (12V-1.7W T6.5)
-
321PD-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
335ND-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
345ND-82560-00-00 ......THERMO SWITCH ASSY......THERMO SWITCH ASSY
-
354WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
363WP-81980-00-00 ...RECTIFIER 2...RECTIFIER 2
-
37437-83936-11-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
3890464-13073-00 CLAMPCLAMP
-
3990464-13073-00 CLAMPCLAMP
-
4090464-15065-00 CLAMPCLAMP
-
4190464-15065-00 CLAMPCLAMP
-
42437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4390464-20181-00 CLAMPCLAMP
-
4490464-20181-00 CLAMPCLAMP
-
4590464-20159-00 CLAMPCLAMP
-
4690464-13073-00 CLAMPCLAMP
-
4790464-30040-00 CLAMPCLAMP
-
485TG-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
495TG-2144G-20-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
5098902-06012-00 SCREW, BINDSCREW, BIND
-
5190464-15195-00 CLAMPCLAMP
-
5290464-30040-00 CLAMPCLAMP
-
533TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
5490464-15195-00 CLAMPCLAMP
-
5590464-20031-00 CLAMPCLAMP
-
5690464-23041-00 CLAMPCLAMP
-
5790464-48174-00 CLAMPCLAMP
-
5890465-13M11-00 CLAMPCLAMP
-
595TG-85370-00-00 RESISTOR ASSYRESISTOR ASSY
-
6091312-05010-00 BOLTBOLT
-
6190464-13073-00 CLAMPCLAMP
-
6290464-15157-00 CLAMPCLAMP
-
6390464-48174-00 CLAMPCLAMP
-
645DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
653TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
6690464-09M31-00 CLAMPCLAMP
