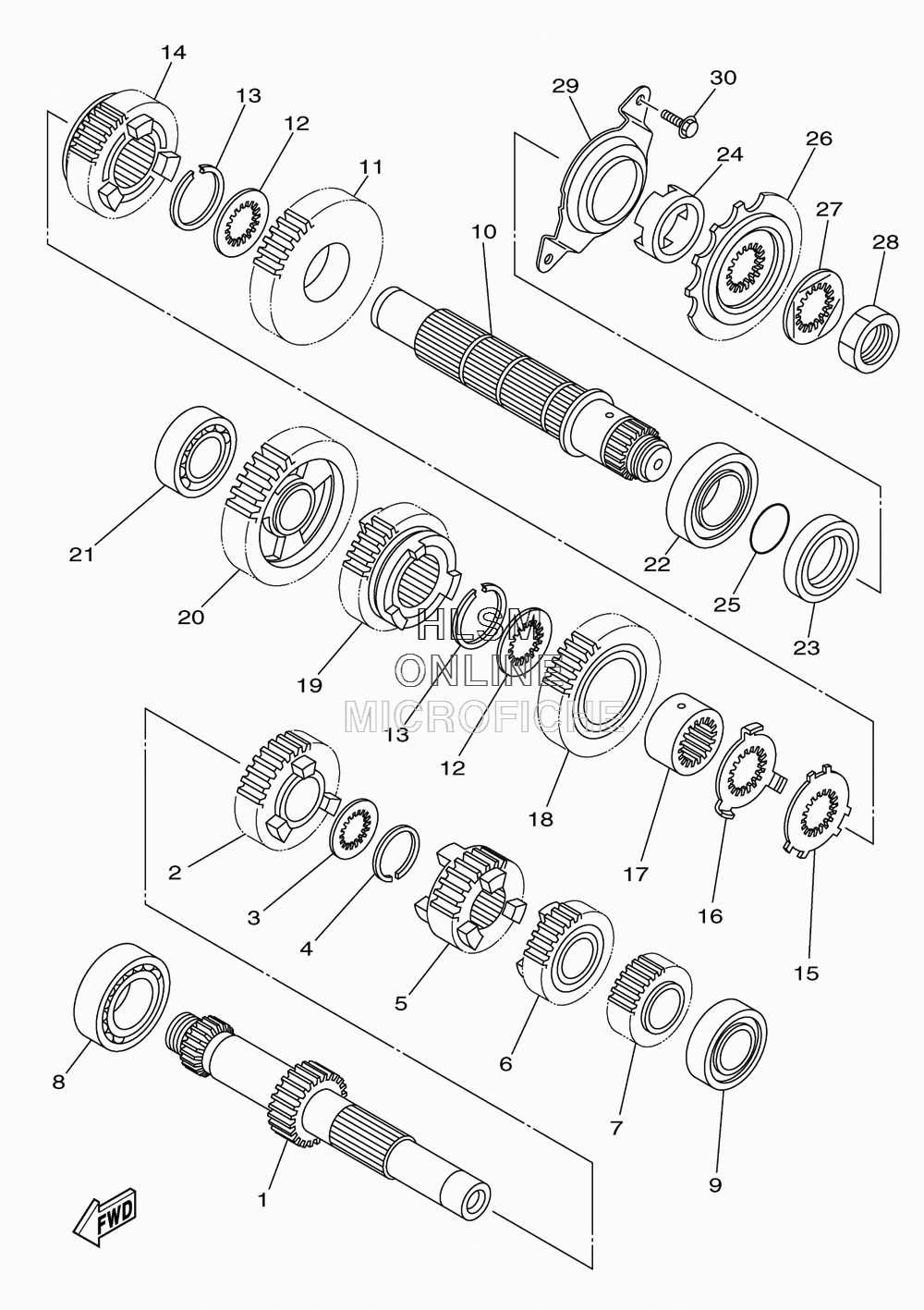

TRANSMISSION для Yamaha YFZ 450 - 2013 года выпуска
-
№АртикулНазвание
-
15TG-17411-00-00 AXLE, MAINAXLE, MAIN
-
25TG-17151-00-00 GEAR, 5TH PINION (20T)GEAR, 5TH PINION (20T)
-
390209-21332-00 WASHERWASHER
-
493440-25084-00 CIRCLIPCIRCLIP
-
55TG-17131-00-00 GEAR, 3RD PINION (16T)GEAR, 3RD PINION (16T)
-
65TG-17141-00-00 GEAR, 4TH PINION (18T)GEAR, 4TH PINION (18T)
-
75TG-17121-00-00 GEAR, 2ND PINION (14T)GEAR, 2ND PINION (14T)
-
893306-20532-00 BEARINGBEARING
-
993306-00431-00 BEARINGBEARING
-
101PD-1742A-00-00 DRIVE AXLE ASSY.,2DRIVE AXLE ASSY.,2
-
115TG-17221-00-00 GEAR, 2ND WHEEL (27T)GEAR, 2ND WHEEL (27T)
-
1290209-25342-00 WASHERWASHER
-
1393440-28062-00 CIRCLIPCIRCLIP
-
145TG-17241-00-00 GEAR, 4TH WHEEL (23T)GEAR, 4TH WHEEL (23T)
-
1590209-25349-00 WASHERWASHER
-
1690209-25350-00 WASHERWASHER
-
1790387-2810U-00 COLLARCOLLAR
-
185TG-17231-00-00 GEAR, 3RD WHEEL (25T)GEAR, 3RD WHEEL (25T)
-
195TG-17251-00-00 GEAR, 5TH WHEEL (21T)GEAR, 5TH WHEEL (21T)
-
205BF-17211-00-00 GEAR, 1ST WHEEL (29T)GEAR, 1ST WHEEL (29T)
-
2193306-00426-00 BEARINGBEARING
-
2293306-20593-00 BEARINGBEARING
-
2393102-32480-00 OIL SEALOIL SEAL
-
2490387-2513F-00 COLLARCOLLAR
-
2593210-22164-00 O-RINGO-RING
-
265NG-17460-00-00 SPROCKET, DRIVE (14T)SPROCKET, DRIVE (14T)
-
2790215-21003-00 WASHER, LOCKWASHER, LOCK
-
2890179-20001-00 NUTNUT
-
295GR-17471-10-00 PLATE, COVERPLATE, COVER
-
3095022-06016-00 BOLT, FLANGEBOLT, FLANGE
