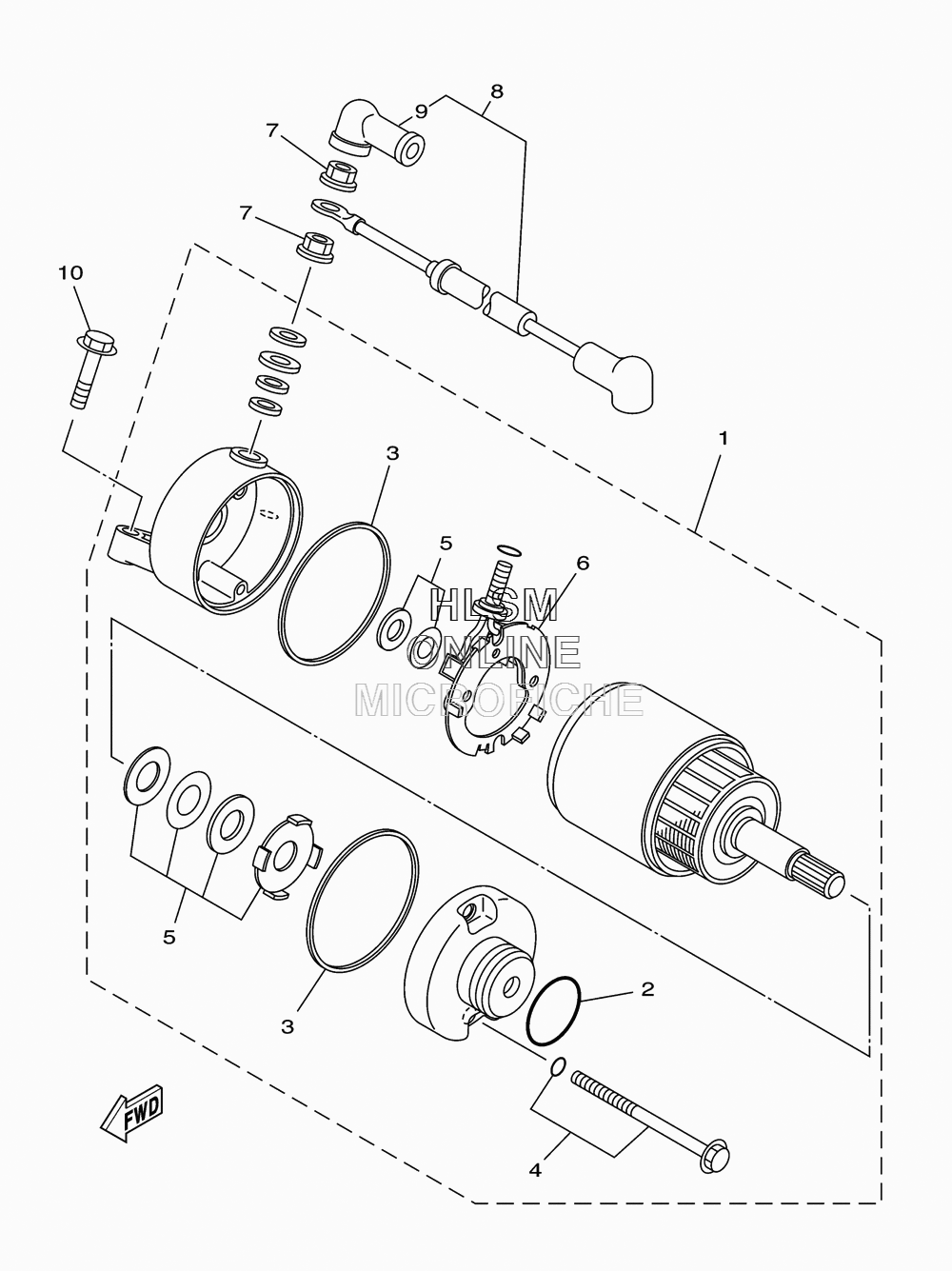

STARTING MOTOR для Yamaha YFZ 450 - 2013 года выпуска
-
№АртикулНазвание
-
15TG-81890-00-00 MOTOR ASSYMOTOR ASSY
-
21FK-81847-00-00 ...O-RING...O-RING
-
34WP-81844-00-00 ...GASKET...GASKET
-
44WP-81826-00-00 ...BOLT...BOLT
-
53AJ-81809-00-00 ...WASHER KIT...WASHER KIT
-
65TG-81801-00-00 ...BRUSH SET...BRUSH SET
-
74XV-8182A-00-00 NUTNUT
-
85TG-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
94G0-81871-00-00 ...CAP...CAP
-
1095022-06025-00 BOLT, FLANGEBOLT, FLANGE
