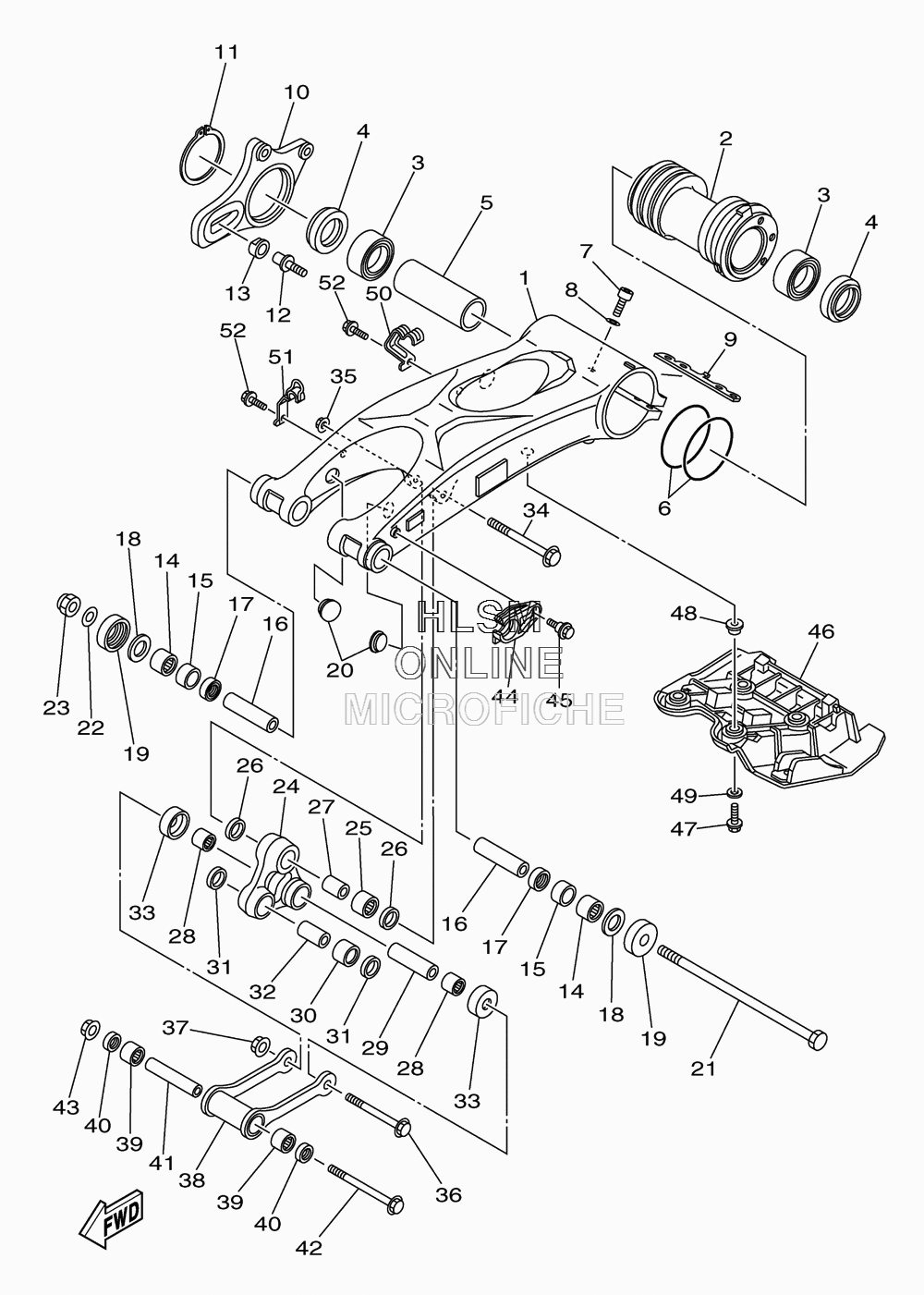

SUSPENSION - REAR ARM для Yamaha YFZ 450 - 2013 года выпуска
-
№АртикулНазвание
-
15TG-22110-21-00 REAR ARM COMP.REAR ARM COMP.
-
25TG-25311-30-00 HUB, REARHUB, REAR
-
393304-20812-00 BEARINGBEARING
-
493106-46003-00 OIL SEALOIL SEAL
-
51PD-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
61S3-23147-01-00 O-RINGO-RING
-
791314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
892903-08600-00 WASHER, PLATEWASHER, PLATE
-
95TG-22475-00-00 SEAL, DUSTSEAL, DUST
-
105TG-25721-30-00 BRACKET, CALIPERBRACKET, CALIPER
-
1193410-67085-00 CIRCLIPCIRCLIP
-
1290110-12001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390387-16014-00 COLLARCOLLAR
-
1493317-22237-00 BEARINGBEARING
-
1590380-22111-00 BUSH, SOLIDBUSH, SOLID
-
1690387-160W0-00 COLLARCOLLAR
-
1793106-22019-00 OIL SEAL (DC 22-28-8)OIL SEAL (DC 22-28-8)
-
183YF-22149-00-00 WASHERWASHER
-
194X7-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
2090338-23004-00 PLUGPLUG
-
215LP-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
2290201-16018-00 WASHER, PLATEWASHER, PLATE
-
2390185-16002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
245TG-2217A-10-00 ARM, RELAYARM, RELAY
-
2593315-32057-00 BEARING, CYL.#15BEARING, CYL.#15
-
2693109-20001-00 OIL SEALOIL SEAL
-
2790387-12055-00 COLLARCOLLAR
-
2893315-31758-00 BEARINGBEARING
-
2990387-12030-00 COLLARCOLLAR
-
3093315-32052-00 BEARINGBEARING
-
3193109-20001-00 OIL SEALOIL SEAL
-
3290387-12020-00 COLLARCOLLAR
-
335TG-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
3490105-12038-00 BOLT, FLANGEBOLT, FLANGE
-
3595602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3690105-12040-00 BOLT, FLANGEBOLT, FLANGE
-
3795602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
385D3-2217F-00-00 ROD, CONNECTING 1ROD, CONNECTING 1
-
3993315-31758-00 BEARINGBEARING
-
4093109-17071-00 OIL SEALOIL SEAL
-
4190387-12019-00 COLLARCOLLAR
-
4290105-12039-00 BOLT, FLANGEBOLT, FLANGE
-
4395602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
445TG-22151-00-00 SEAL, GUARDSEAL, GUARD
-
4590109-06172-00 BOLTBOLT
-
465TG-22360-11-00 GUARD SUB ASSYGUARD SUB ASSY
-
4795812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
4890387-06151-00 COLLARCOLLAR
-
4990201-06088-00 WASHER, PLATEWASHER, PLATE
-
505TG-25886-10-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
515TG-25887-10-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
5290105-06063-00 BOLT, FLANGEBOLT, FLANGE
