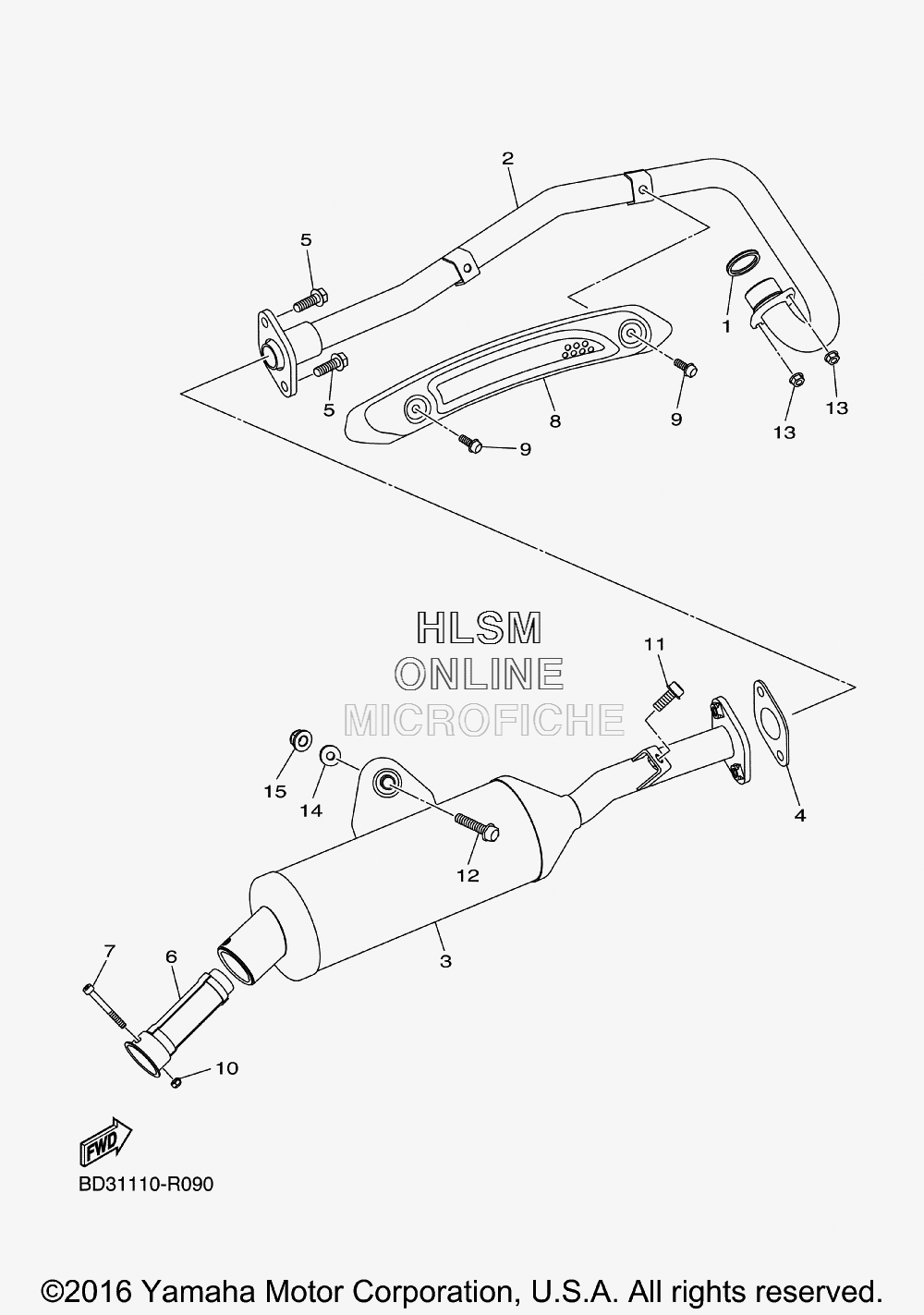

EXHAUST для Yamaha RAPTOR 90 - 2016 года выпуска
-
№АртикулНазвание
-
1BD3-E4613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
2BD3-E4611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
3BD3-E4711-00-00 MUFFLER 1MUFFLER 1
-
4BD3-E4714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
5BD3-E5768-00-00 BOLTBOLT
-
6BD3-E4780-00-00 SPARK ARRESTER ASSYSPARK ARRESTER ASSY
-
7BD3-E3574-00-00 BOLT 2BOLT 2
-
8BD3-E4628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
9BD3-E6194-00-00 BOLT, HEX W/WASHERBOLT, HEX W/WASHER
-
10BD3-E4358-00-00 NUTNUT
-
11BD3-F3876-00-00 BOLTBOLT
-
12BD3-E6777-00-00 BOLTBOLT
-
13BD3-F1494-00-00 NUTNUT
-
14BD3-E2289-00-00 WASHERWASHER
-
15BD3-F1635-00-00 NUT, REAR FENDERNUT, REAR FENDER
