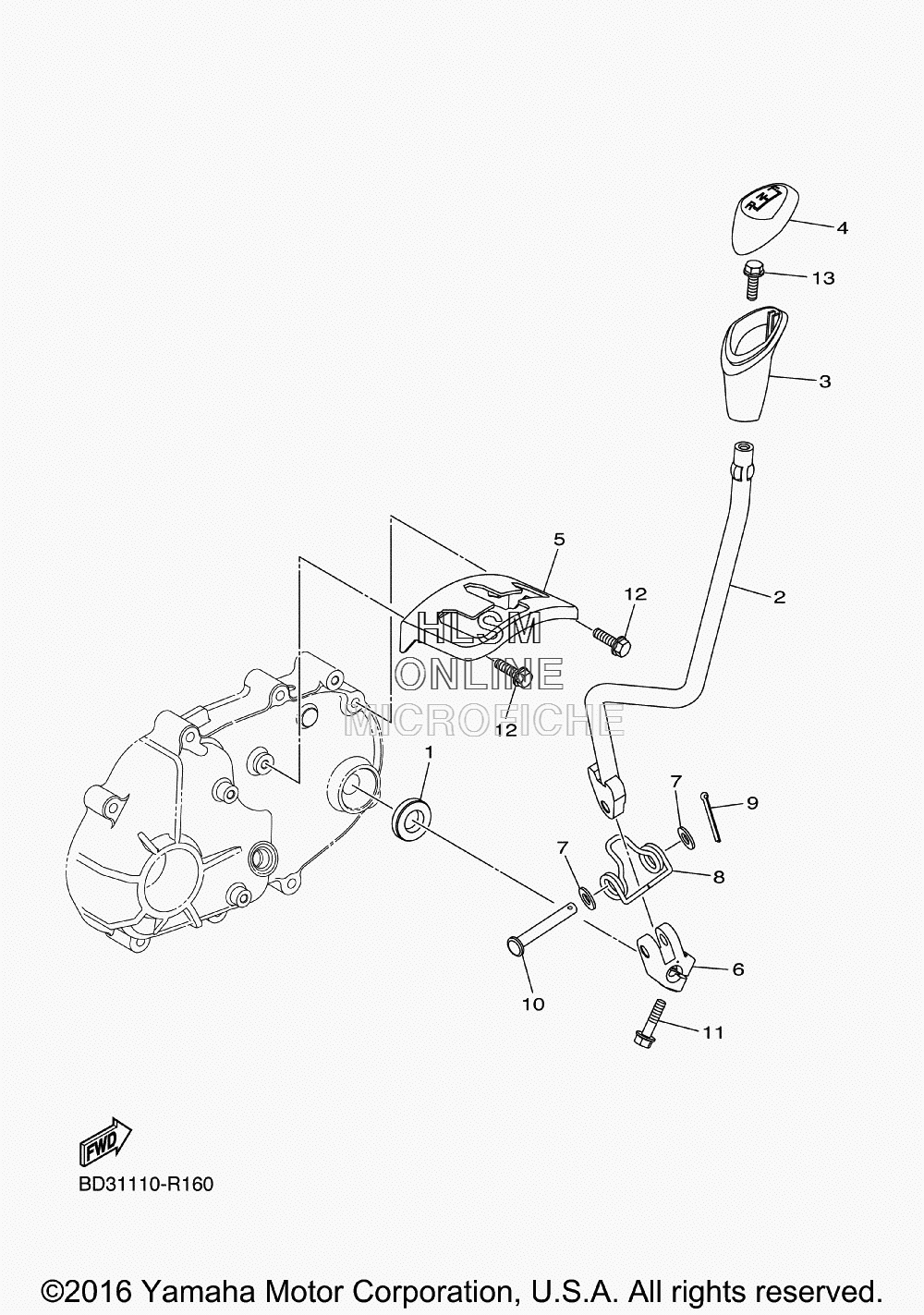

SHIFT SHAFT для Yamaha RAPTOR 90 - 2016 года выпуска
-
№АртикулНазвание
-
1BD3-G3882-00-00 OIL SEALOIL SEAL
-
2BD3-E8190-00-00 LEVER COMP. 1LEVER COMP. 1
-
3BD3-E8174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
4BD3-E7496-00-00 KNOBKNOB
-
5BD3-E8172-00-00 GUIDE, SHIFTGUIDE, SHIFT
-
6BD3-E8179-00-00 GUIDEGUIDE
-
7BD3-E5615-00-00 WASHERWASHER
-
8BD3-E8196-00-00 SPRING, RETURNSPRING, RETURN
-
9BD3-F146E-00-00 PIN 2PIN 2
-
10BD3-E8125-00-00 SHAFT, SHIFTSHAFT, SHIFT
-
11BD3-G8171-00-00 BOLTBOLT
-
12BD3-H1452-00-00 BOLTBOLT
-
13BD3-H1552-00-00 BOLTBOLT
