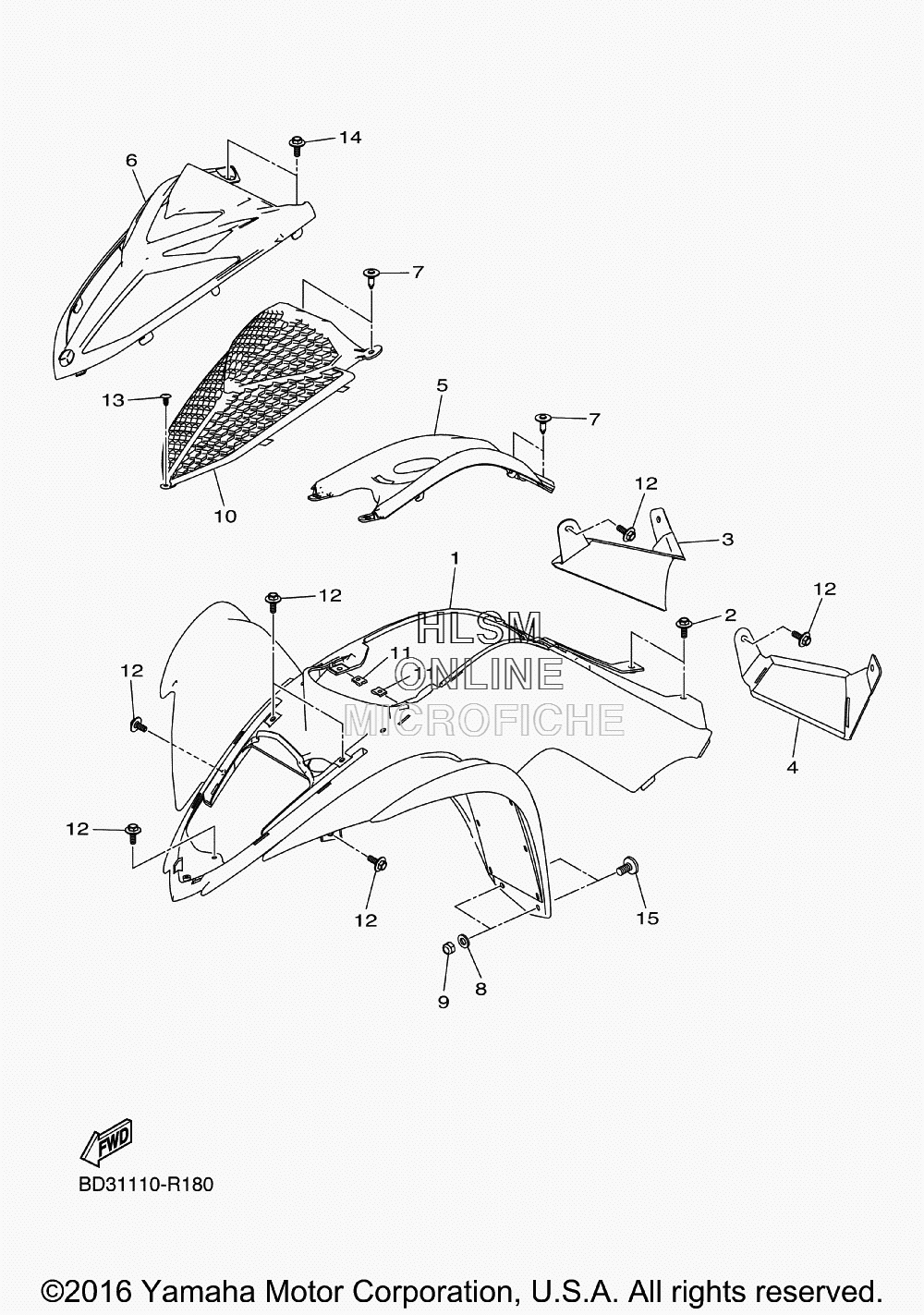

FENDER - FRONT для Yamaha RAPTOR 90 - 2016 года выпуска
-
№АртикулНазвание
-
1BD3-F1500-30-00 FRONT FENDER ASSYFRONT FENDER ASSY
-
2BD3-F1738-00-00 BOLTBOLT
-
3BD3-F1721-00-00 COVER, SIDE 2COVER, SIDE 2
-
4BD3-F1711-00-00 COVER, SIDE 1COVER, SIDE 1
-
5BD3-F171A-00-00 COVER, TOPCOVER, TOP
-
6BD3-F1556-00-00 FENDER, FRONT 2FENDER, FRONT 2
-
7BD3-F1728-00-00 RIVETRIVET
-
8BD3-F2149-00-00 WASHERWASHER
-
9BD3-F4148-00-00 NUT, SPEED 3NUT, SPEED 3
-
10BD3-E2467-00-00 COVER, RADIATORCOVER, RADIATOR
-
11BD3-F4149-00-00 NUTNUT
-
12BD3-F1632-00-00 BOLT 2BOLT 2
-
13BD3-F2969-00-00 SCREW 1SCREW 1
-
14BD3-F3356-00-00 BOLT 2BOLT 2
-
15BD3-F11C8-00-00 SCREW 4SCREW 4
