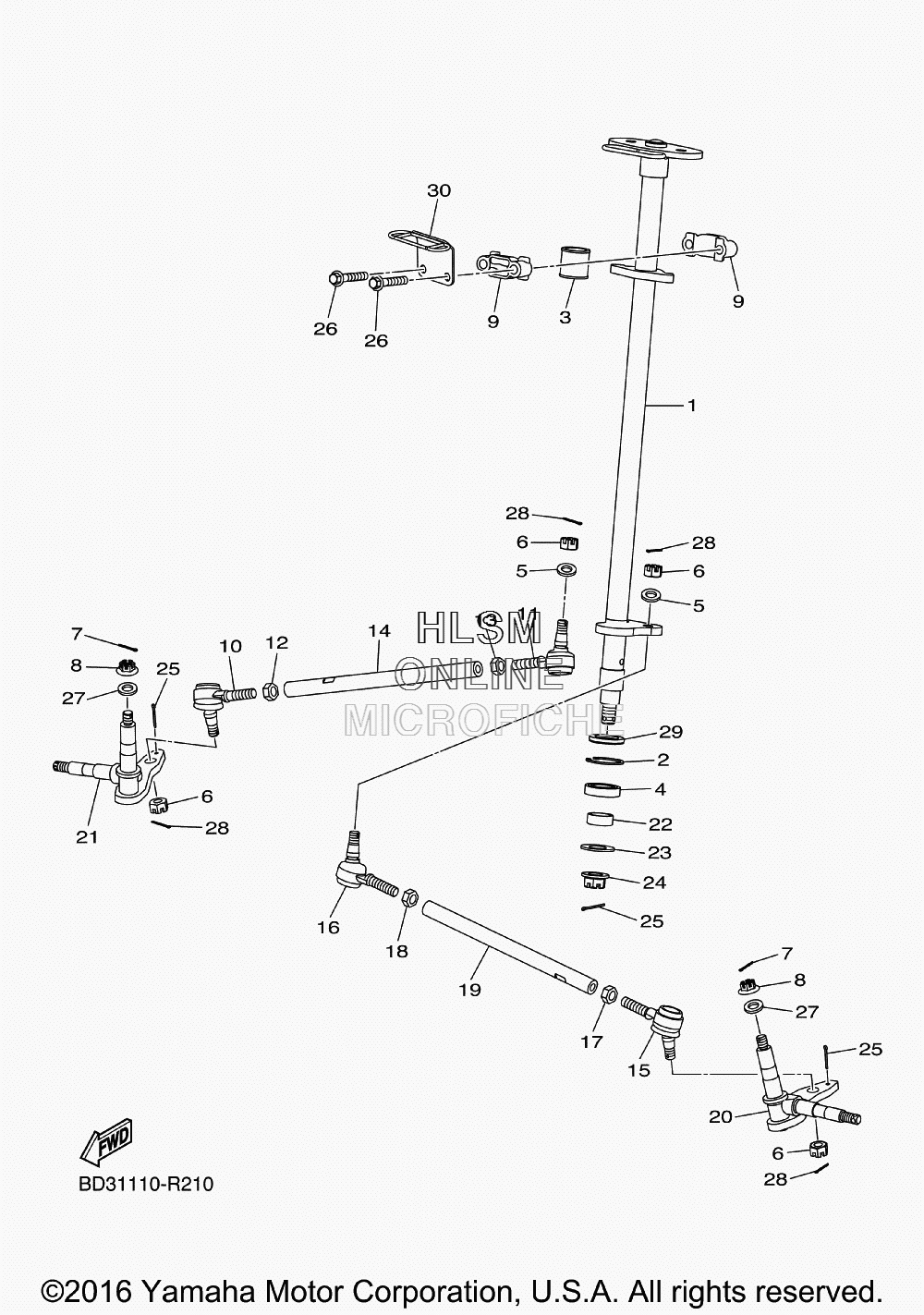

STEERING для Yamaha RAPTOR 90 - 2016 года выпуска
-
№АртикулНазвание
-
1BD3-F3813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
2BD3-F384N-00-00 CLIP, RINGCLIP, RING
-
3BD3-F3818-00-00 COVER, STEERINGCOVER, STEERING
-
4BD3-F3812-00-00 BEARING, STEERINGBEARING, STEERING
-
5BD3-F3427-00-00 WASHERWASHER
-
6BD3-F3856-00-00 NUTNUT
-
7BD3-F146E-00-00 PIN 2PIN 2
-
8BD3-F3877-00-00 NUTNUT
-
9BD3-F3872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
10BD3-F3841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
11BD3-F3845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
12BD3-F1791-00-00 NUTNUT
-
13BD3-F1829-00-00 NUTNUT
-
14BD3-F3831-00-00 ROD, TIEROD, TIE
-
15BD3-F3841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
16BD3-F3845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
17BD3-F1791-00-00 NUTNUT
-
18BD3-F1829-00-00 NUTNUT
-
19BD3-F3831-00-00 ROD, TIEROD, TIE
-
20BD3-F3511-00-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
21BD3-F3521-00-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
22BD3-F38B2-00-00 SPACERSPACER
-
23BD3-F3165-00-00 WASHER, FELTWASHER, FELT
-
24BD3-F4531-00-00 NUTNUT
-
25BD3-F112N-00-00 PINPIN
-
26BD3-F4177-00-00 BOLT 2BOLT 2
-
27BD3-F2246-00-00 WASHER 4WASHER 4
-
28BD3-F4374-00-00 PINPIN
-
29BD3-F3844-00-00 SEALSEAL
-
30BD3-F3868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
