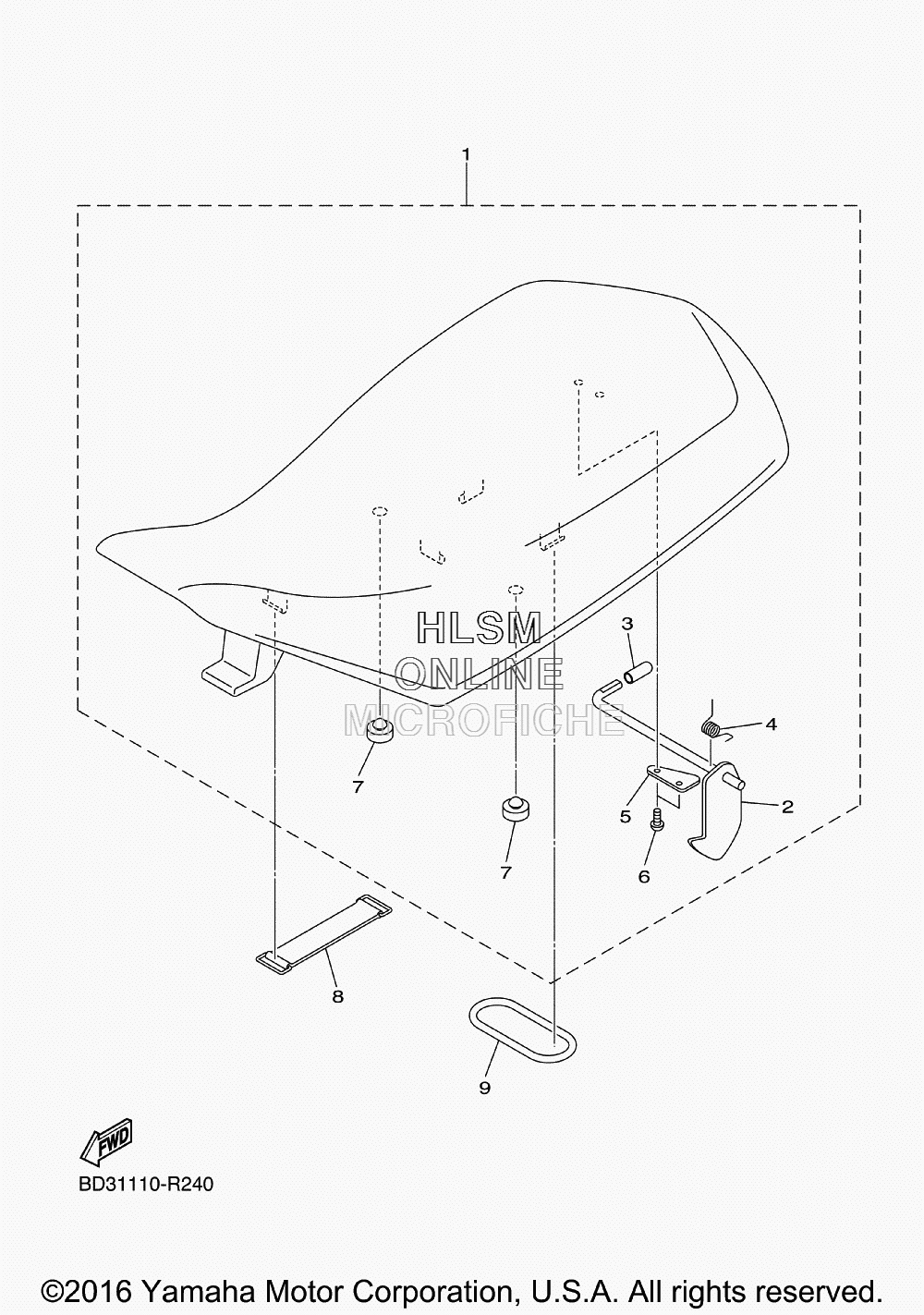

SEAT для Yamaha RAPTOR 90 - 2016 года выпуска
-
№АртикулНазвание
-
1BD3-F4710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
2BD3-F4760-00-00 ...SEAT LEVER ASSY...SEAT LEVER ASSY
-
3BD3-F476M-00-00 ...CAP...CAP
-
4BD3-F4758-00-00 ...SPRING...SPRING
-
5BD3-F4775-00-00 ...BRACKET, SEAT LEVER...BRACKET, SEAT LEVER
-
6BD3-F11C5-00-00 ...SCREW 1...SCREW 1
-
7BD3-F7114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
8BD3-F4398-00-00 BAND 1BAND 1
-
9BD3-F4648-00-00 O-RINGO-RING
