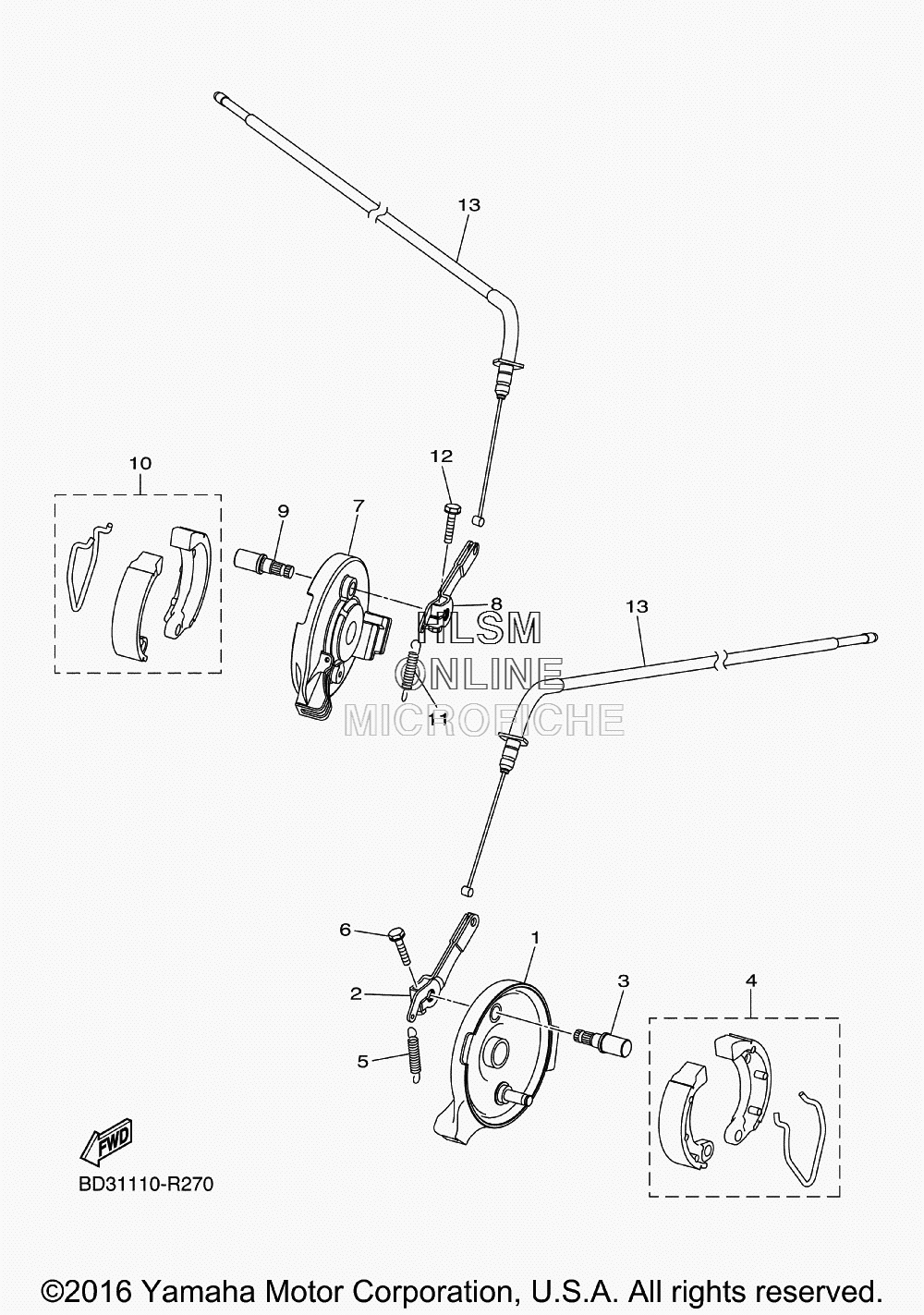

BRAKE - FRONT DRUM для Yamaha RAPTOR 90 [YFM09RYXHL] - 2017 года выпуска
-
№АртикулНазвание
-
1BD3-F5121-10-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
2BD3-F5155-10-00 LEVER, CAMSHAFT 1LEVER, CAMSHAFT 1
-
3BD3-F5151-00-00 CAMSHAFTCAMSHAFT
-
4BD3-F510L-10-00 BRAKE SHOE COMP.BRAKE SHOE COMP.
-
5BD3-F5143-10-00 SPRING, RETURNSPRING, RETURN
-
6BD3-F2241-10-00 BOLT 1BOLT 1
-
7BD3-F5169-10-00 PLATE, BRAKE SHOE 2PLATE, BRAKE SHOE 2
-
8BD3-F5156-10-00 LEVER, CAMSHAFT 2LEVER, CAMSHAFT 2
-
9BD3-F5151-00-00 CAMSHAFTCAMSHAFT
-
10BD3-F510L-10-00 BRAKE SHOE COMP.BRAKE SHOE COMP.
-
11BD3-F5143-10-00 SPRING, RETURNSPRING, RETURN
-
12BD3-F2241-10-00 BOLT 1BOLT 1
-
13BD3-F6350-10-00 CABLE, BRAKECABLE, BRAKE
