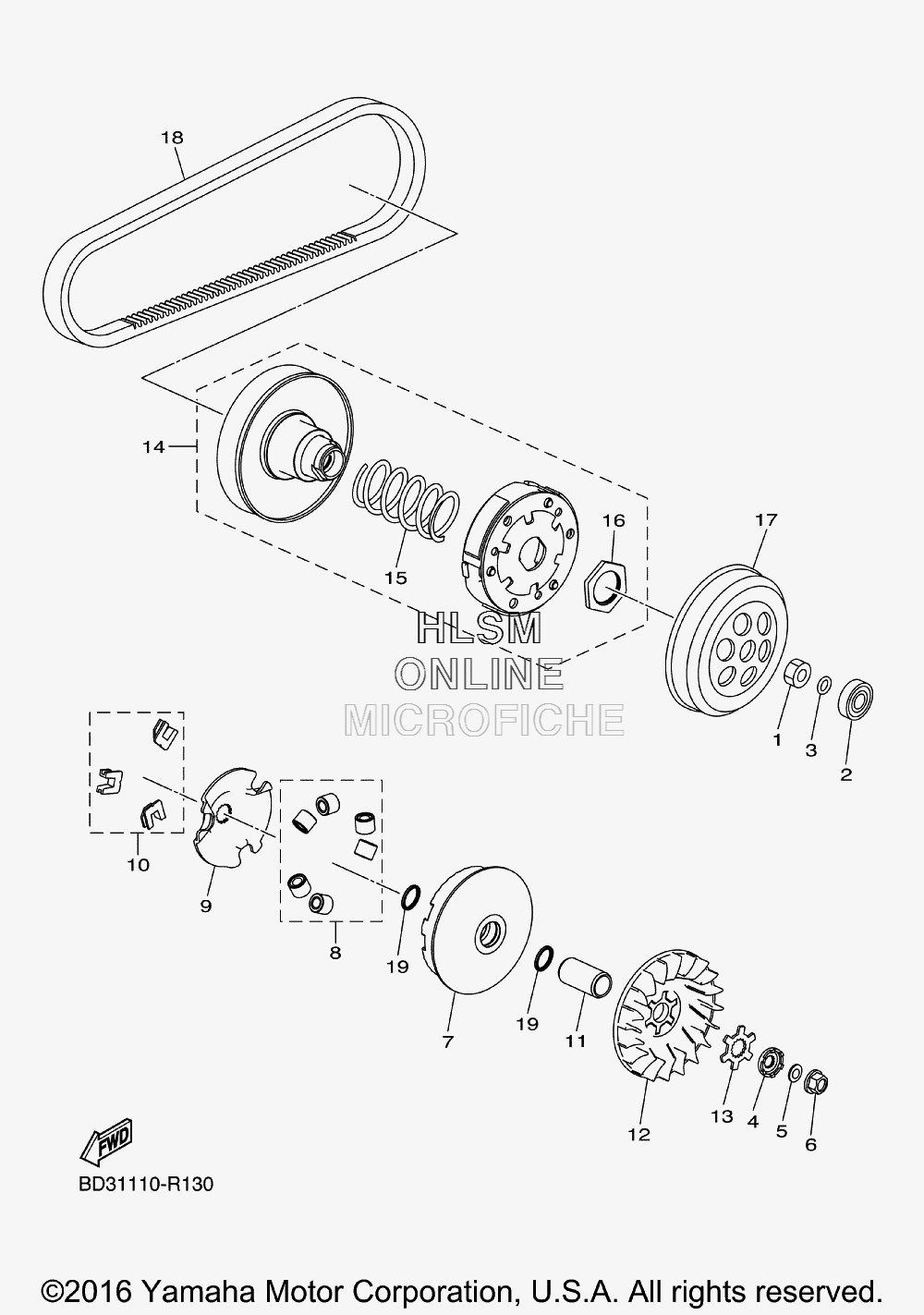

CLUTCH для Yamaha RAPTOR 90 [YFM09RYXHL] - 2017 года выпуска
-
№АртикулНазвание
-
1BD3-E4594-10-00 NUTNUT
-
2BD3-E7156-00-00 BEARING 1BEARING 1
-
3BD3-E3769-00-00 O-RINGO-RING
-
4BD3-E5657-00-00 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
5BD3-F3427-00-00 WASHERWASHER
-
6BD3-F3834-10-00 NUT 2NUT 2
-
7BD3-E7621-00-00 SHEAVE, PRIMARY SLIDINGSHEAVE, PRIMARY SLIDING
-
8BD3-E7632-00-00 WEIGHTWEIGHT
-
9BD3-E7623-00-00 CAMCAM
-
10BD3-E7625-00-00 BUSHBUSH
-
11BD3-E7637-00-00 BUSHBUSH
-
12BD3-E7611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
13BD3-E7646-00-00 WASHER, LOCKWASHER, LOCK
-
14BD3-E6620-10-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
15BD3-E7683-00-00 ...SPRING, SECONDARY...SPRING, SECONDARY
-
16BD3-E4595-10-00 ...NUT...NUT
-
17BD3-E6611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
18BD3-E7641-00-00 V-BELTV-BELT
-
19BD3-E76F3-00-00 OIL SEALOIL SEAL
