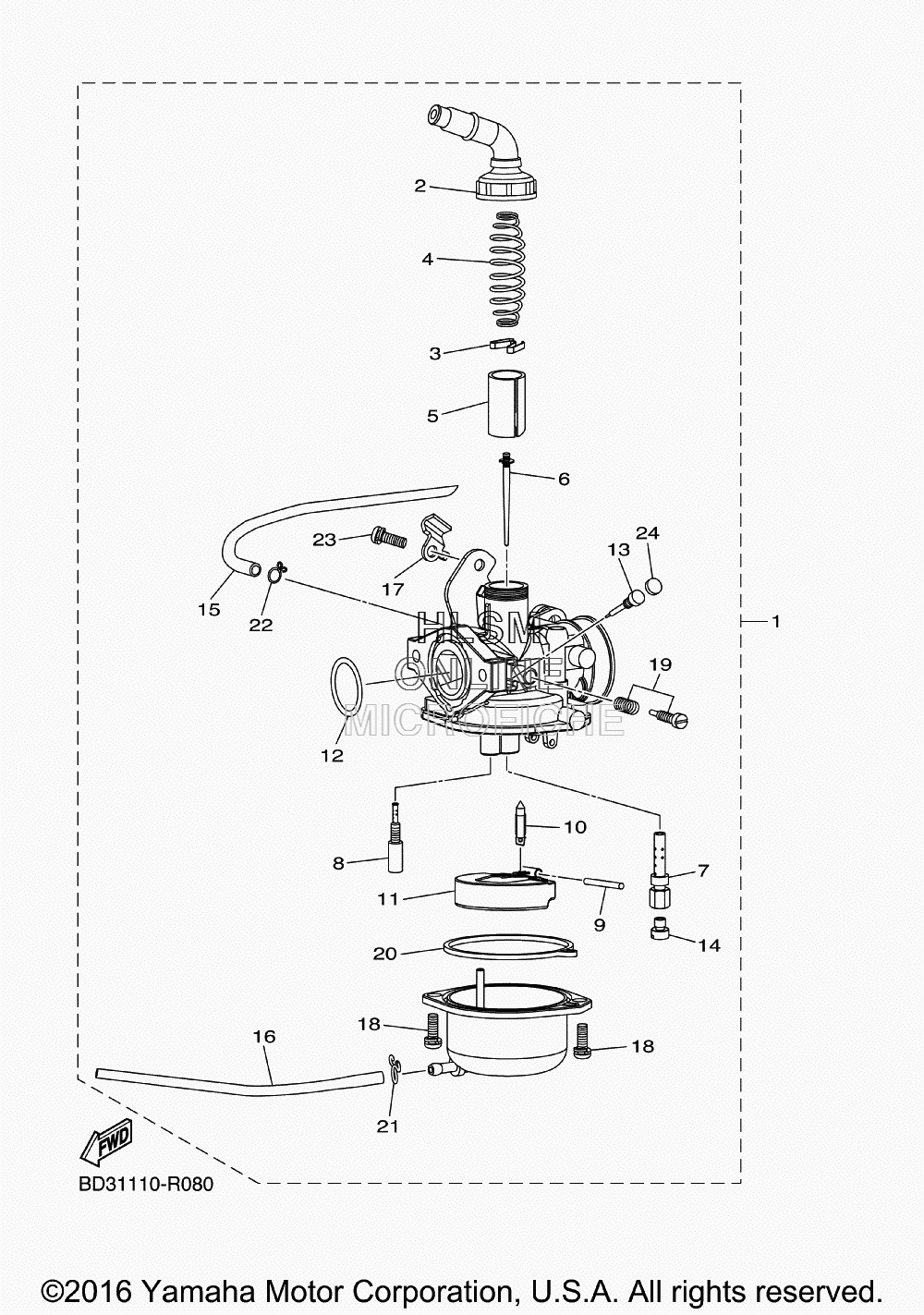

CARBURETOR для Yamaha RAPTOR 90 [YFM09RYXHL] - 2017 года выпуска
-
№АртикулНазвание
-
1BD3-E4101-10-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
2BD3-E439D-10-00 ...CAP, MIXING CHAMBER...CAP, MIXING CHAMBER
-
3BD3-E439G-00-00 ...CLIP 1...CLIP 1
-
4BD3-E4331-00-00 ...SPRING, THROTTLE VALVE...SPRING, THROTTLE VALVE
-
5BD3-E3731-00-00 ...VALVE, THROTTLE...VALVE, THROTTLE
-
6BD3-E4150-00-00 ...NEEDLE ASSY...NEEDLE ASSY
-
7BD3-E414G-00-00 ...PIPE, MAIN BLEED...PIPE, MAIN BLEED
-
8BD3-E4942-00-00 ...JET, PILOT...JET, PILOT
-
9BD3-E4386-00-00 ...PIN, FLOAT...PIN, FLOAT
-
10BD3-E4392-00-00 ...VALVE, NEEDLE...VALVE, NEEDLE
-
11BD3-E4385-00-00 ...FLOAT...FLOAT
-
12BD3-E4397-00-00 ...O-RING...O-RING
-
13BD3-E4211-00-00 ...SCREW, PILOT ADJUSTING...SCREW, PILOT ADJUSTING
-
14BD3-E415A-00-00 ...JET, MAIN...JET, MAIN
-
15BD3-E4348-00-00 ...PIPE 1...PIPE 1
-
16BD3-E4349-00-00 ...PIPE...PIPE
-
17BD3-E4581-10-00 ...BRACKET...BRACKET
-
18BD3-E4325-10-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
19BD3-E4521-00-00 ...SCREW, ADJUST...SCREW, ADJUST
-
20BD3-E4384-00-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
21BD3-E439H-10-00 ...CLIP 2...CLIP 2
-
22BD3-E449C-10-00 ...CLIP 1...CLIP 1
-
23BD3-E4216-10-00 ...SCREW...SCREW
-
24BD3-E443B-00-00 ...PLUG, BLIND...PLUG, BLIND
