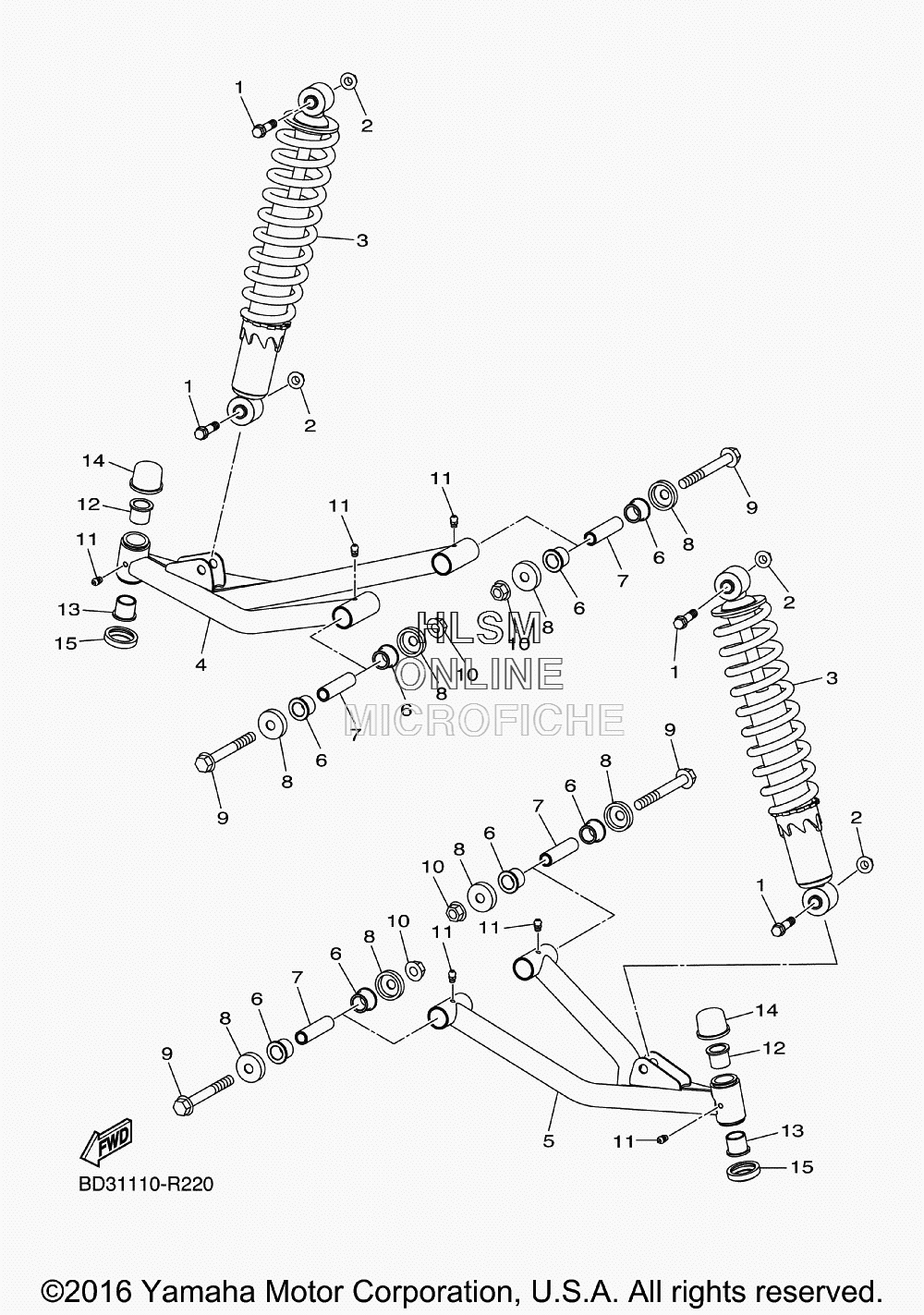

SUSPENSION - FRONT WHEEL для Yamaha RAPTOR 90 [YFM09RYXHL] - 2017 года выпуска
-
№АртикулНазвание
-
1BD3-F4834-10-00 BOLTBOLT
-
2BD3-F3834-10-00 NUT 2NUT 2
-
3BD3-F3350-10-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
4BD3-F3580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
5BD3-F3570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
6BD3-F3526-00-00 BUSHBUSH
-
7BD3-F3364-00-00 COLLAR 2COLLAR 2
-
8BD3-F3517-00-00 COVER, THRUST 1COVER, THRUST 1
-
9BD3-F7117-10-00 BOLT, MAIN STANDBOLT, MAIN STAND
-
10BD3-F3834-10-00 NUT 2NUT 2
-
11BD3-F135J-10-00 NIPPLENIPPLE
-
12BD3-F639L-00-00 BUSH 1BUSH 1
-
13BD3-F639M-00-00 BUSH 2BUSH 2
-
14BD3-F2129-00-00 COVER, THRUST 2COVER, THRUST 2
-
15BD3-F3527-00-00 SEAL, DUST 1SEAL, DUST 1
