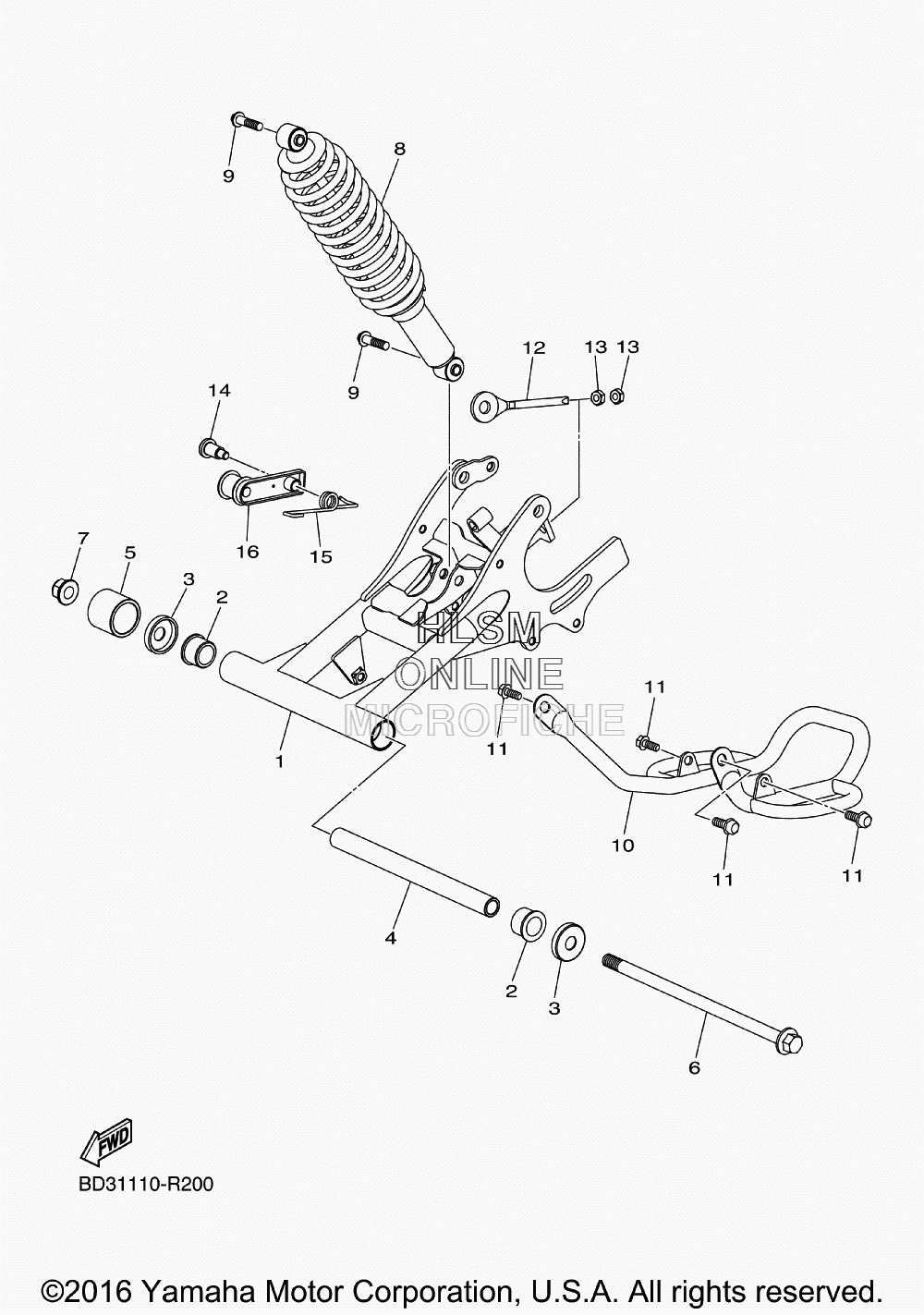

SUSPENSION - REAR ARM для Yamaha RAPTOR 90 [YFM09RYXHL] - 2017 года выпуска
-
№АртикулНазвание
-
1BD3-F2110-00-00 REAR ARM COMP.REAR ARM COMP.
-
2BD3-F2123-00-00 BUSH 1BUSH 1
-
3BD3-F2128-00-00 COVER, THRUST 1COVER, THRUST 1
-
4BD3-F2126-00-00 COLLAR, DISTANCECOLLAR, DISTANCE
-
5BD3-F2151-00-00 SEAL, GUARDSEAL, GUARD
-
6BD3-F1722-10-00 BOLT 2BOLT 2
-
7BD3-F1535-10-00 NUT 1NUT 1
-
8BD3-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
9BD3-F4834-10-00 BOLTBOLT
-
10BD3-F2361-00-00 GUARD 1GUARD 1
-
11BD3-F3876-10-00 BOLTBOLT
-
12BD3-F5388-10-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
13BD3-F1536-10-00 NUT 2NUT 2
-
14BD3-F3769-10-00 BOLTBOLT
-
15BD3-F2169-00-00 SPRING, TENSIONERSPRING, TENSIONER
-
16BD3-F2183-10-00 BRACKET, TENSIONERBRACKET, TENSIONER
