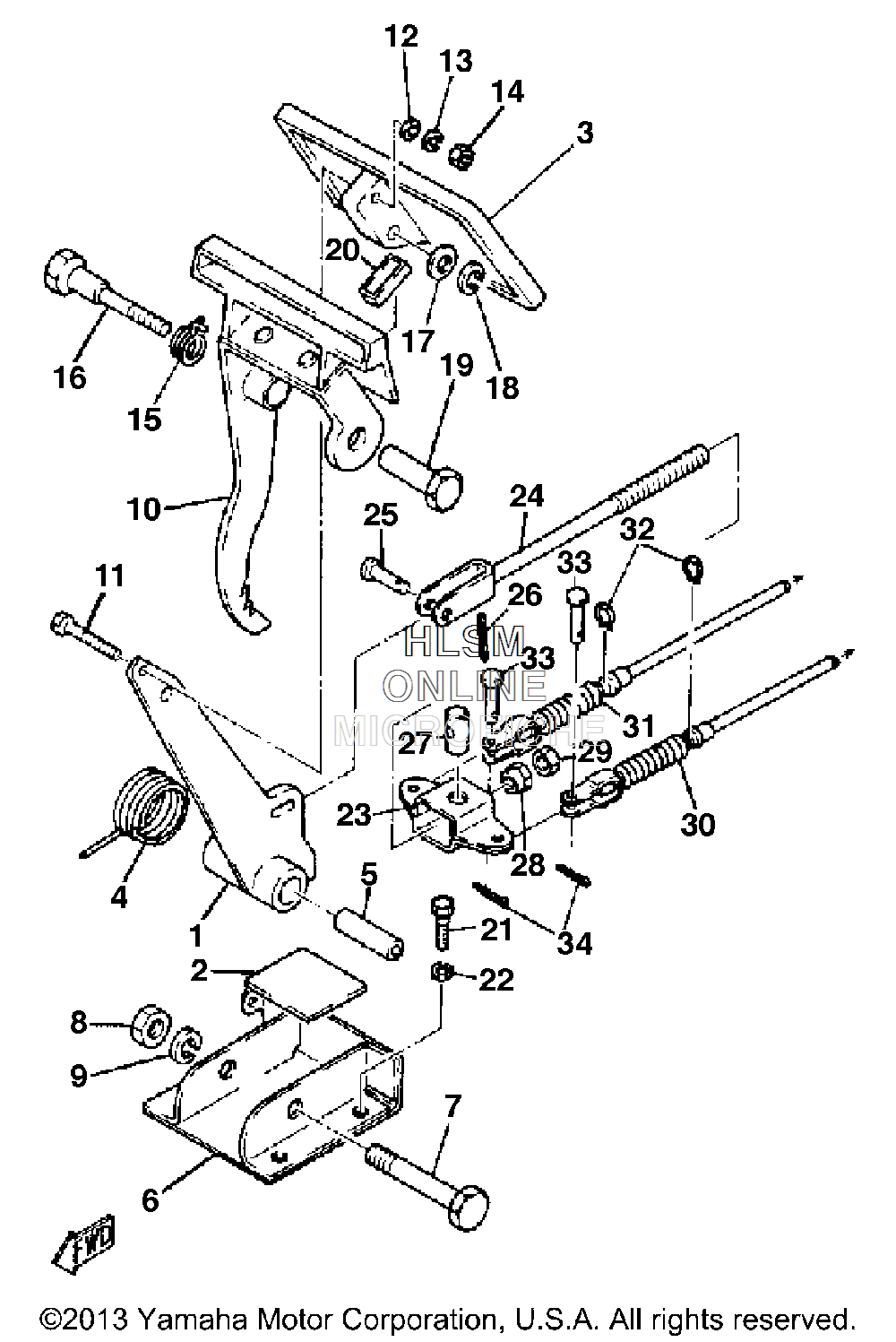

BRAKE для Yamaha GOLF CAR ELECTRIC [G1E] (J14) - 1980 года выпуска
-
№АртикулНазвание
-
1J10-27250-00-00 BRAKE ARM CMPLT (J10-27250-01-00)BRAKE ARM CMPLT (J10-27250-01-00)
-
2J10-27245-00-00 PAD, BRAKE PEDALPAD, BRAKE PEDAL
-
3J10-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
490508-40384-00 SPRING, TORSIONSPRING, TORSION
-
590387-10684-00 COLLARCOLLAR
-
6J10-25654-00-00 BRACKET, PEDALBRACKET, PEDAL
-
790101-10447-00 BOLTBOLT
-
895601-10100-00 NUT, UNUT, U
-
992990-10100-00 WASHER, SPRINGWASHER, SPRING
-
10J10-25670-01-00 PARKING PEDAL COMPLETE (J10-25670-00-00)PARKING PEDAL COMPLETE (J10-25670-00-00)
-
1197021-06030-00 BOLTBOLT
-
1292990-06200-00 WASHER, PLAINWASHER, PLAIN
-
1392995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1495380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
1590508-23497-00 SPRING, TORSION (90508-20383-00)SPRING, TORSION (90508-20383-00)
-
1690109-08506-00 BOLTBOLT
-
1792990-08200-00 WASHER, PLAINWASHER, PLAIN
-
1892990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1990179-08378-00 NUTNUT
-
20J10-25679-00-00 DAMPERDAMPER
-
2197313-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
2292995-06100-00 WASHER, SPRINGWASHER, SPRING
-
23J10-25681-00-00 EQUALIZER, BRAKEEQUALIZER, BRAKE
-
24J10-25685-00-00 RODROD
-
2591701-10022-00 PIN, CLEVISPIN, CLEVIS
-
2691490-30020-00 PIN. COTTERPIN. COTTER
-
2790249-14129-00 PINPIN
-
2890179-08261-00 NUTNUT
-
2995303-08700-00 NUTNUT
-
30J56-F6341-00-00 CABLE, BRAKECABLE, BRAKE
-
31J56-F6351-00-00 CABLE, BRAKECABLE, BRAKE
-
3299001-09600-00 CIRCLIPCIRCLIP
-
3391701-08018-00 PIN, CLEVISPIN, CLEVIS
-
3491490-25020-00 PIN. COTTERPIN. COTTER
