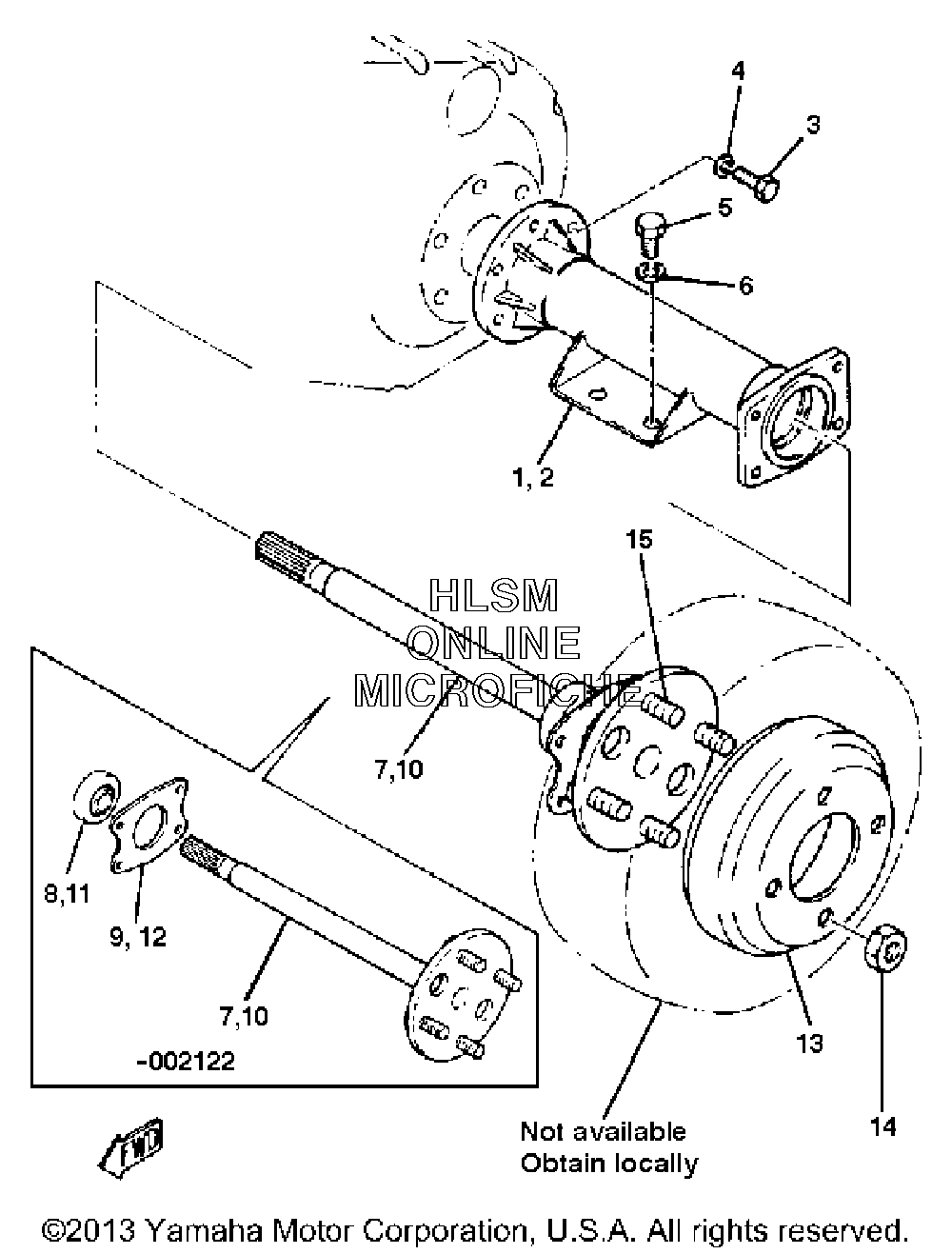

WHEEL - REAR W/ AXLE ASSY для Yamaha GOLF CAR ELECTRIC [G1E] (J14) - 1980 года выпуска
-
№АртикулНазвание
-
1J14-46540-00-00 REAR AXLE HOUSING 1REAR AXLE HOUSING 1
-
2J14-46550-00-00 REAR AXLE HOUSING 2REAR AXLE HOUSING 2
-
397013-08025-00 BOLTBOLT
-
492990-08100-00 WASHER, SPRINGWASHER, SPRING
-
597011-10020-00 BOLTBOLT
-
692990-10100-00 WASHER, SPRINGWASHER, SPRING
-
7J14-46510-01-00 REAR AXLE SHAFT 1 (UP TO J14-002122)REAR AXLE SHAFT 1 (UP TO J14-002122)
-
7J22-46510-01-00 REAR AXLE SHAFT 1 (J14-46510-01-00) (J14-002123 AND UP)REAR AXLE SHAFT 1 (J14-46510-01-00) (J14-002123 AND UP)
-
893306-20509-00 BEARING (B6205) (93306-20525-00) (UP TO J14-002122)BEARING (B6205) (93306-20525-00) (UP TO J14-002122)
-
9J10-46513-00-00 RETAINER 0 1 (UP TO J14-002122)RETAINER 0 1 (UP TO J14-002122)
-
10J14-46520-01-00 REAR AXLE SHAFT 2 (UP TO J14-002122)REAR AXLE SHAFT 2 (UP TO J14-002122)
-
10J22-46520-01-00 REAR AXLE SHAFT 2 (J14-46520-01-00) (J14-002123 AND UP)REAR AXLE SHAFT 2 (J14-46520-01-00) (J14-002123 AND UP)
-
1193306-20509-00 BEARING (B6205) (93306-20525-00) (UP TO J14-002122)BEARING (B6205) (93306-20525-00) (UP TO J14-002122)
-
12J10-46513-00-00 RETAINER 0 1 (UP TO J14-002122)RETAINER 0 1 (UP TO J14-002122)
-
13J10-46521-00-00 DRUMDRUM
-
1490179-12262-00 NUTNUT
-
1590114-12004-00 BOLT, SERRATIONBOLT, SERRATION
