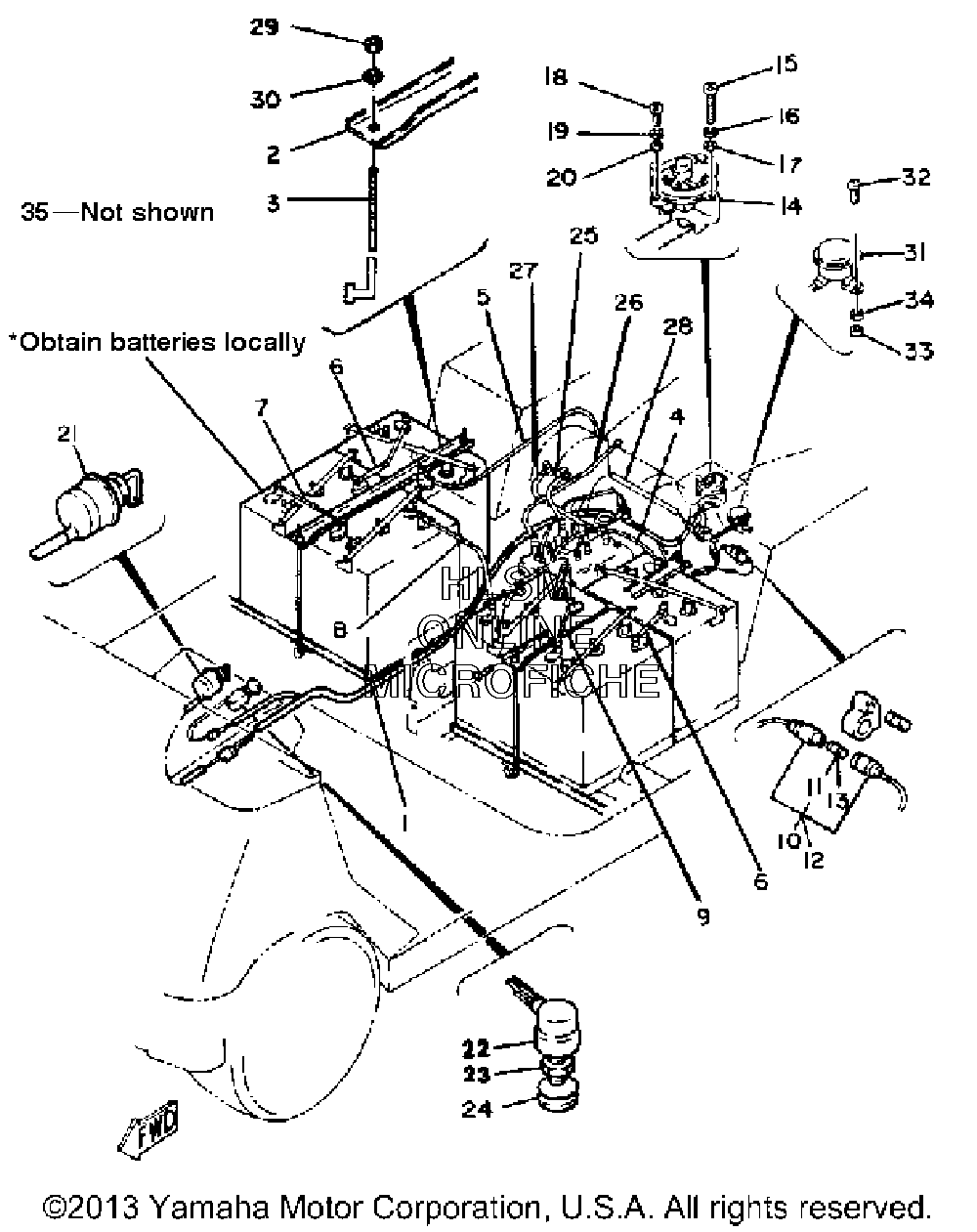

ELECTRICAL 2 для Yamaha GOLF CAR ELECTRIC [G1E] (J14) - 1980 года выпуска
-
№АртикулНазвание
-
1J14-82590-01-00 WIRE HARNESS ASSEMBLYWIRE HARNESS ASSEMBLY
-
2J14-82136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
3J14-82133-01-00 SCREW, FITTINGSCREW, FITTING
-
4J14-82531-00-00 WIRE, LEADWIRE, LEAD
-
5J56-H2116-00-00 WIRE, MINUS LEAD (J14-82116-00-00)WIRE, MINUS LEAD (J14-82116-00-00)
-
6J56-H2117-00-00 WIRE, LEADWIRE, LEAD
-
7J56-H2127-00-00 WIRE, LEAD 2WIRE, LEAD 2
-
8J56-H2149-00-00 WIRE, LEAD 3WIRE, LEAD 3
-
9J56-H2127-00-00 WIRE, LEAD 2WIRE, LEAD 2
-
101E6-82150-00-00 FUSE HOLDER ASSEMBLYFUSE HOLDER ASSEMBLY
-
111E6-82151-00-00 ...FUSE (10A)...FUSE (10A)
-
121E6-82150-00-00 FUSE HOLDER ASSEMBLYFUSE HOLDER ASSEMBLY
-
131E6-82151-00-00 ...FUSE (10A)...FUSE (10A)
-
14JF3-86181-00-00 RECEPTACLERECEPTACLE
-
1598506-05035-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692906-05100-00 WASHER, SPRINGWASHER, SPRING
-
1792906-05600-00 WASHER, PLATEWASHER, PLATE
-
1898586-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992906-05100-00 WASHER, SPRINGWASHER, SPRING
-
2092906-05600-00 WASHER, PLATEWASHER, PLATE
-
21J22-82508-00-00 MAIN SWITCH ASSEMBLY (J14-82508-00-00)MAIN SWITCH ASSEMBLY (J14-82508-00-00)
-
22J10-82530-02-00 STOP SWTICH ASSEMBLYSTOP SWTICH ASSEMBLY
-
2395303-10700-00 ...NUT...NUT
-
24J10-82532-00-00 ...CAP, RUBBER...CAP, RUBBER
-
25J14-82521-00-00 WIRE, LEADWIRE, LEAD
-
26J14-82531-00-00 WIRE, LEADWIRE, LEAD
-
27J56-H2117-00-00 WIRE, LEADWIRE, LEAD
-
28J14-81315-00-00 LEAD WIRE ASSEMBLYLEAD WIRE ASSEMBLY
-
2995701-06300-00 NUT, NYLONNUT, NYLON
-
3090201-06067-00 WASHER, PLATEWASHER, PLATE
-
31J14-83383-01-00 BUZZERBUZZER
-
3297301-06014-00 BOLT, HEXAGONBOLT, HEXAGON
-
3395380-06700-00 NUTNUT
-
3492995-06100-00 WASHER, SPRINGWASHER, SPRING
-
35JN4-H2107-00-00 CHARGER, BATTERY, 36V (AC120V, NOT SHOWN)CHARGER, BATTERY, 36V (AC120V, NOT SHOWN)
