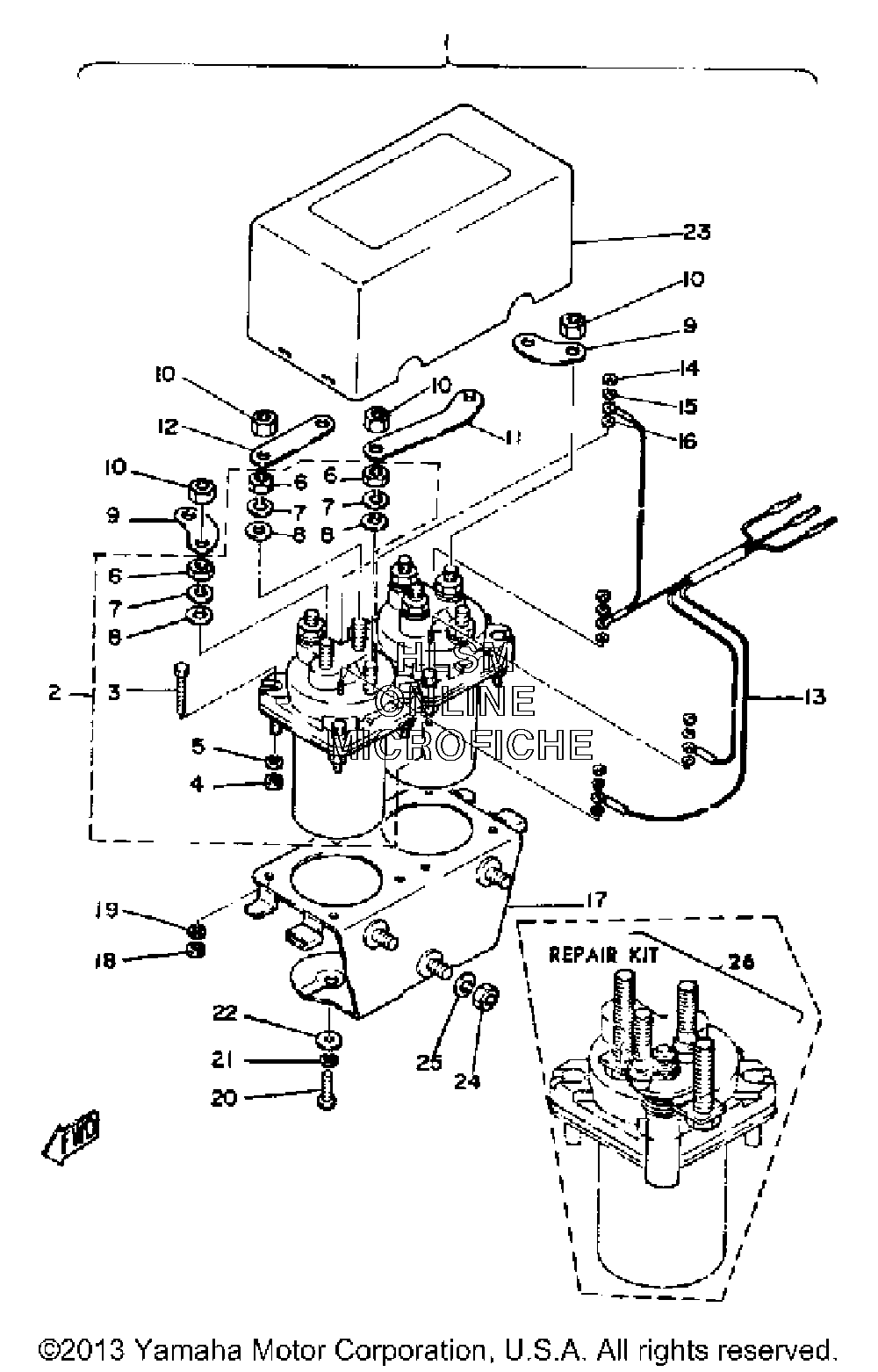

ELECTRICAL для Yamaha GOLF CAR ELECTRIC [G1E] (J14) - 1980 года выпуска
-
№АртикулНазвание
-
1J14-81950-00-00 RELAY ASSEMBLYRELAY ASSEMBLY
-
2J14-81951-00-00 ...RELAY...RELAY
-
397021-06030-00 ......BOLT......BOLT
-
495380-06700-00 ......NUT......NUT
-
592995-06100-00 ......WASHER, SPRING......WASHER, SPRING
-
695303-08700-00 ......NUT......NUT
-
792990-08100-00 ......WASHER, SPRING......WASHER, SPRING
-
892901-08600-00 ......WASHER......WASHER
-
9J14-81925-00-00 ...TERMINAL...TERMINAL
-
1095333-08600-00 ...NUT...NUT
-
11J14-81924-00-00 ...BAR, SHORT...BAR, SHORT
-
12J14-81926-00-00 ...BAR, SHORT 2...BAR, SHORT 2
-
13J14-81920-00-00 ...TERMINAL ASSEMBLY...TERMINAL ASSEMBLY
-
1495301-04700-00 ...NUT...NUT
-
1592901-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1692901-04600-00 ...WASHER...WASHER
-
17J14-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
1895380-06700-00 ...NUT...NUT
-
1992995-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
2098580-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2192990-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
2292901-05600-00 ...WASHER...WASHER
-
23J14-81942-00-00 ...COVER...COVER
-
2495303-08700-00 ...NUT...NUT
-
2592990-08100-00 ...WASHER, SPRING...WASHER, SPRING
-
26J14-W0012-00-00 CONTACT KIT, RELAY (ALTERNATE PART)CONTACT KIT, RELAY (ALTERNATE PART)
