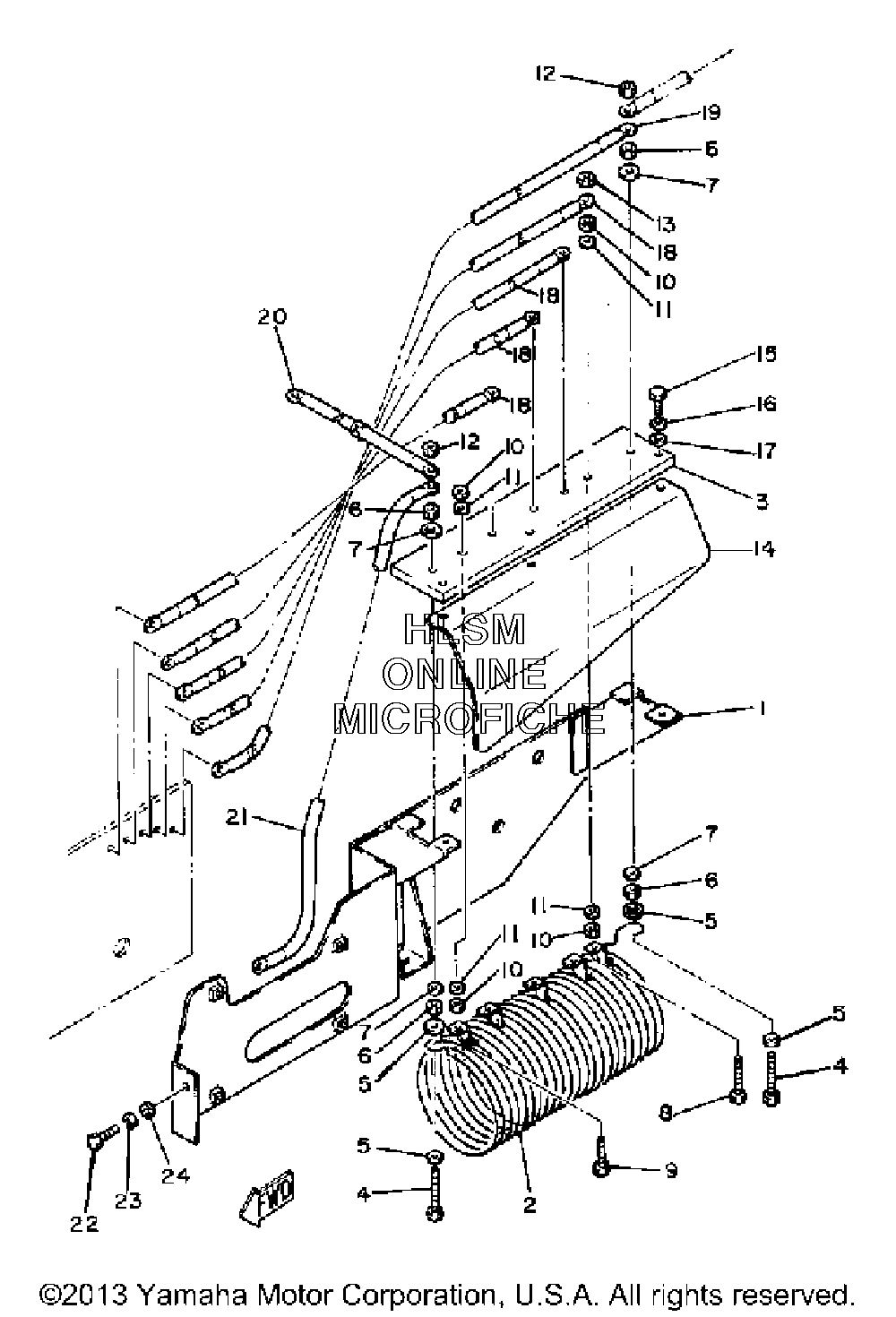

CONTROLLER 2 для Yamaha GOLF CAR ELECTRIC [G1E] (J14) - 1980 года выпуска
-
№АртикулНазвание
-
1J14-86141-00-00 PLATE, CONTROLLERPLATE, CONTROLLER
-
2J51-85370-00-00 RESISTORRESISTOR
-
3J14-85378-01-00 PLATE, RESISTORPLATE, RESISTOR
-
490101-08470-00 BOLTBOLT
-
590201-08777-00 WASHER, PLATEWASHER, PLATE
-
695303-08700-00 NUTNUT
-
792901-08600-00 WASHERWASHER
-
890101-06469-00 BOLTBOLT
-
997011-06025-00 BOLTBOLT
-
1095380-06700-00 NUTNUT
-
1192990-06200-00 WASHER, PLAINWASHER, PLAIN
-
1295333-08600-00 NUTNUT
-
1395320-06600-00 NUTNUT
-
14J14-85379-00-00 COVER, RESISTORCOVER, RESISTOR
-
1597023-06020-00 BOLT (3XF)BOLT (3XF)
-
1692995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1790201-061A5-00 WASHER, PLATEWASHER, PLATE
-
18J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
19J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
20J14-86176-00-00 WIRE, LEADWIRE, LEAD
-
21J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
2297313-08020-00 BOLT, HEXAGONBOLT, HEXAGON
-
2392990-08100-00 WASHER, SPRINGWASHER, SPRING
-
2492901-08600-00 WASHERWASHER
