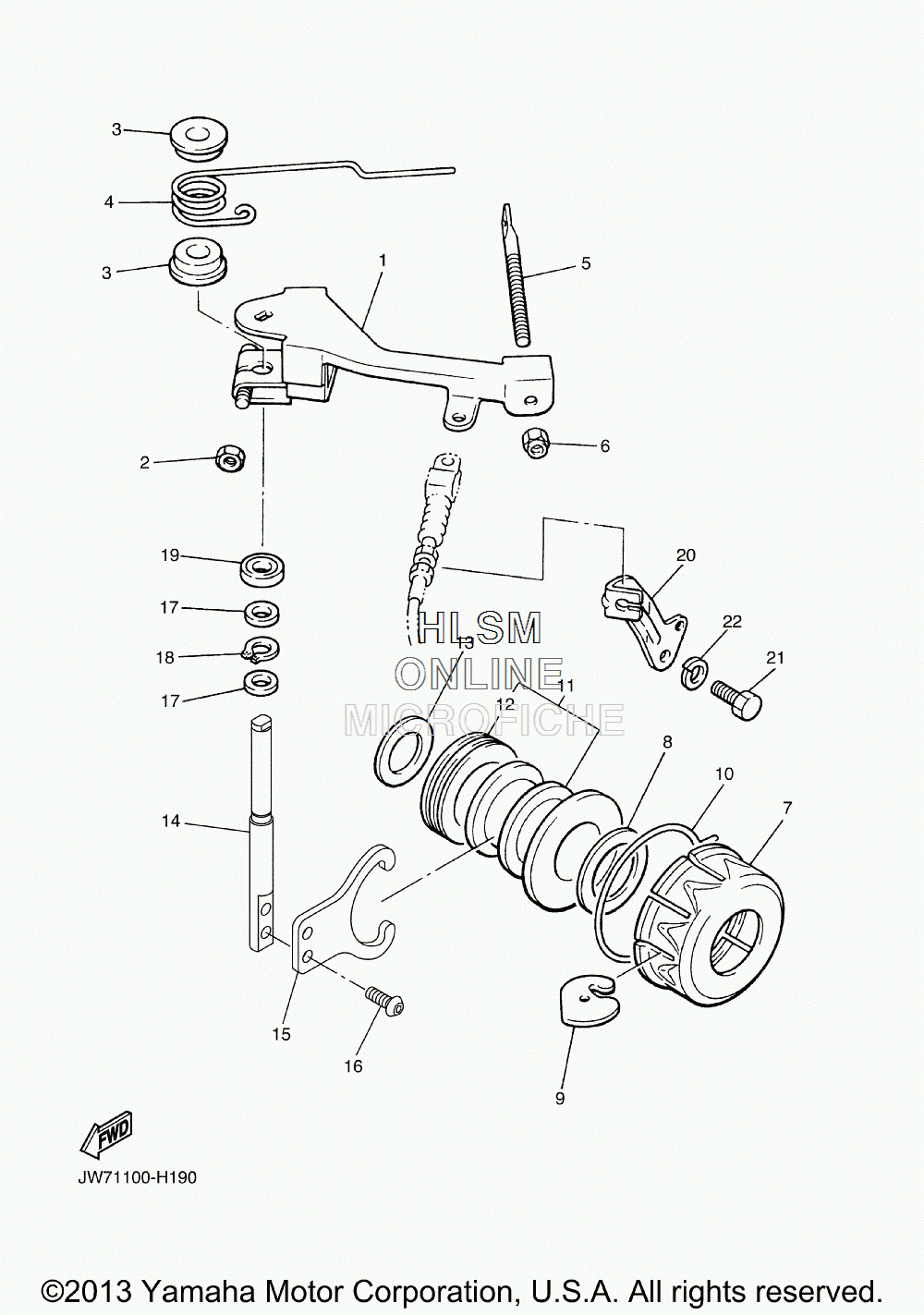

GOVERNOR для Yamaha GOLF CAR [YTF2] (JW71) - 2009 года выпуска
-
№АртикулНазвание
-
1J38-27951-00-00 LEVER, SPEED LIMITERLEVER, SPEED LIMITER
-
295302-06600-00 NUTNUT
-
390386-08141-00 BUSHBUSH
-
490508-40678-00 SPRING, TORSIONSPRING, TORSION
-
5J38-27959-00-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
7J10-27912-01-00 RETAINERRETAINER
-
890387-21690-00 COLLARCOLLAR
-
9J10-27913-00-00 WEIGHTWEIGHT
-
10J10-27911-00-00 HOLDERHOLDER
-
11JN7-27927-01-00 LIFTERLIFTER
-
1293342-22518-00 ......BEARING......BEARING
-
1390201-20275-00 WASHER, PLATEWASHER, PLATE
-
14JW7-27921-00-00 SHAFT, GOVERNORSHAFT, GOVERNOR
-
15JW7-27922-00-00 FORK, GOVERNORFORK, GOVERNOR
-
1692012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1790202-08110-00 WASHER, PLATEWASHER, PLATE
-
1899001-06600-00 CIRCLIPCIRCLIP
-
1993104-08058-00 OIL SEALOIL SEAL
-
20JN7-27982-00-00 BRACKET, WIREBRACKET, WIRE
-
2197002-08016-00 BOLTBOLT
-
2292902-08100-00 WASHER, SPRINGWASHER, SPRING
