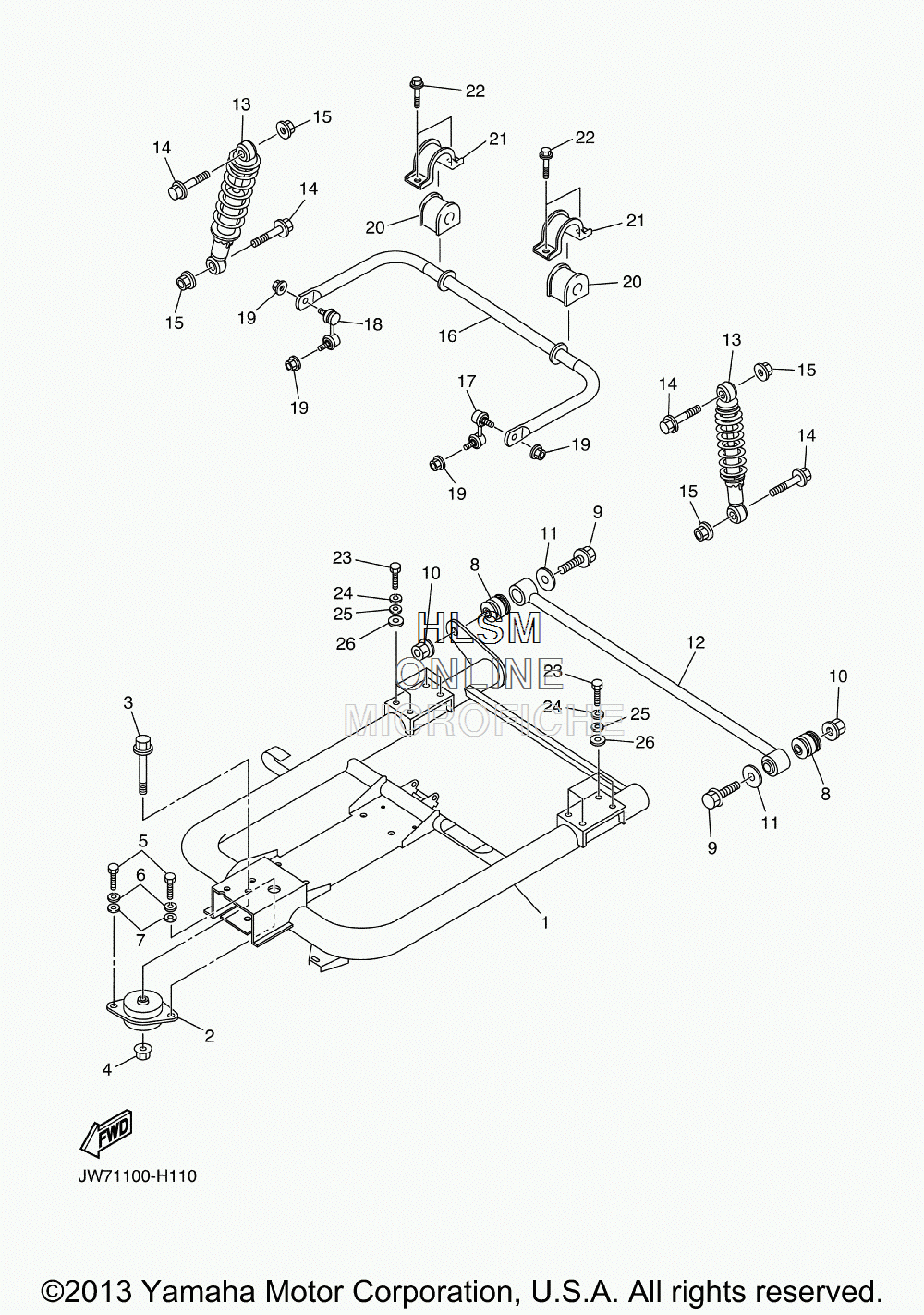

SUSPENSION - REAR ARM для Yamaha GOLF CAR [YTF2] (JW71) - 2009 года выпуска
-
№АртикулНазвание
-
1JW7-F2110-00-00 REAR ARM COMP.REAR ARM COMP.
-
2JN6-F2123-10-00 BUSH 1BUSH 1
-
390105-13800-00 BOLT, FLANGEBOLT, FLANGE
-
490179-13800-00 NUTNUT
-
597012-10020-00 BOLTBOLT
-
692902-10100-00 WASHER, SPRINGWASHER, SPRING
-
792902-10600-00 WASHER, PLATEWASHER, PLATE
-
8JN6-F2124-10-00 BUSH 2BUSH 2
-
995812-12065-00 BOLT, FLANGEBOLT, FLANGE
-
1095602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190201-128S4-00 WASHER, PLATEWASHER, PLATE
-
12JW1-F217G-10-00 ROD, CONNECTING 2ROD, CONNECTING 2
-
13JW7-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
1495812-12055-00 BOLT, FLANGEBOLT, FLANGE
-
1590185-12072-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
161D9-G7491-00-00 BAR, STABILIZERBAR, STABILIZER
-
175KM-2385L-01-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
185KM-2385M-01-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
1995602-10200-00 NUT, U FLANGENUT, U FLANGE
-
201D9-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
211D9-F386H-01-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
2295812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
2397012-10020-00 BOLTBOLT
-
2492902-10100-00 WASHER, SPRINGWASHER, SPRING
-
2592902-10600-00 WASHER, PLATEWASHER, PLATE
-
2690201-101A4-00 WASHER, PLATEWASHER, PLATE
